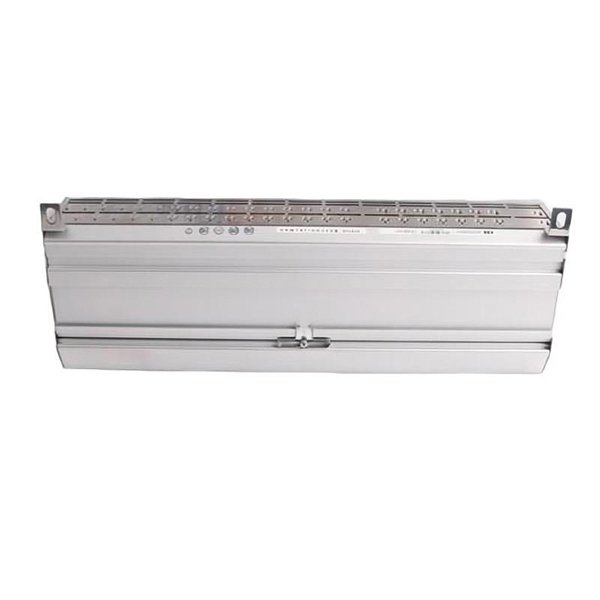

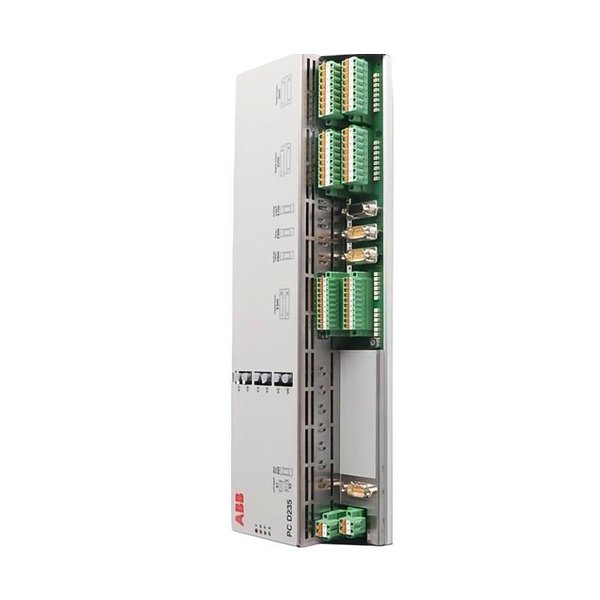

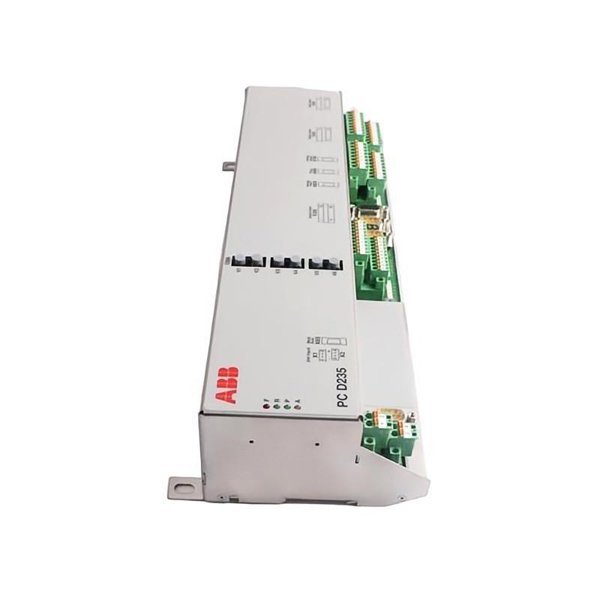

The ABB PCD235 3BHE032025R0101 Exciter Controller Module is a critical component designed to manage excitation systems in power generation applications. It provides precise control of generator excitation currents to maintain voltage stability and reactive power regulation in synchronous machines. Built for integration into ABB’s advanced excitation and control platforms, the PCD235 ensures optimal performance, reliability, and adaptability in demanding industrial and utility environments.

This module offers high-speed processing, advanced control algorithms, and robust communication interfaces, making it a vital unit in modern generator excitation systems. With its ability to handle dynamic grid conditions, the PCD235 contributes to grid stability, system safety, and enhanced operational efficiency.

Product Specifications

Product Applications

• Power Generation Plants: Maintains voltage and reactive power control for synchronous generators.

• Industrial Generators: Provides reliable excitation control in industrial power systems.

• Grid Stability Systems: Ensures dynamic response to grid fluctuations and fault conditions.

• Hydroelectric Stations: Controls excitation for hydro generators under varying load conditions.

• Thermal and Gas Plants: Manages excitation in high-demand environments with fast response.

• Marine Power Systems: Provides stable excitation for shipboard generators and auxiliary systems.

Product Advantages

• Advanced Voltage Regulation: Ensures precise generator voltage and reactive power control.

• High-Speed Processing: Executes control algorithms with minimal latency for dynamic grid response.

• Robust Communication: Supports multiple protocols for seamless system integration.

• Built-In Diagnostics: Real-time health monitoring and fault detection improve maintenance efficiency.

• Redundant Operation: Hot-swappable and redundancy-ready to minimize downtime.

• Industrial Durability: Designed to operate reliably under harsh environmental and electrical conditions.

FAQ

1. What control functions does the PCD235 support for generator excitation?

   It supports AVR (automatic voltage regulation), reactive power control, and dynamic voltage stabilization.

2. What communication protocols are available for system integration?

   The module supports Ethernet, Fieldbus, serial communication, and ABB proprietary protocols.

3. Can the PCD235 be used in redundant excitation configurations?

   Yes, it supports hot-swappable redundant setups for continuous generator operation.

4. How does the module handle dynamic grid disturbances?

   It uses fast control algorithms and real-time monitoring to stabilize generator voltage during faults or load changes.

5. What type of I/O is supported for interfacing with the excitation system?

   It provides both digital and analog I/O channels for voltage, current, and status signal management.

6. Does the module include integrated diagnostics?

   Yes, it includes self-tests, fault logging, and real-time health monitoring to ensure system reliability.

7. How does the PCD235 contribute to reactive power management?

   It adjusts excitation currents to maintain desired reactive power levels, supporting overall grid stability.

8. Is the module compatible with ABB UNITROL systems?

   Yes, it is designed for integration into ABB excitation platforms including UNITROL series systems.

9. What is the typical power supply requirement for the module?

   The module operates on a nominal 24V DC power supply and consumes less than 15W.

10. How is electrical isolation implemented to protect the control system?

    It uses galvanic isolation between control, I/O, and communication circuits to safeguard against electrical noise and surges.
