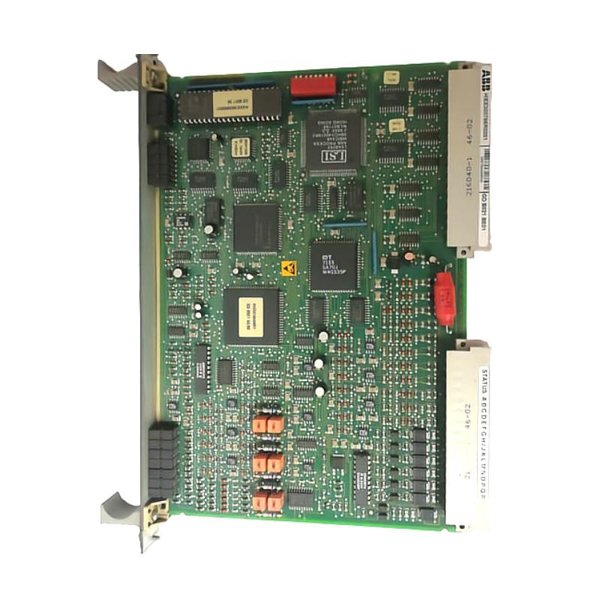

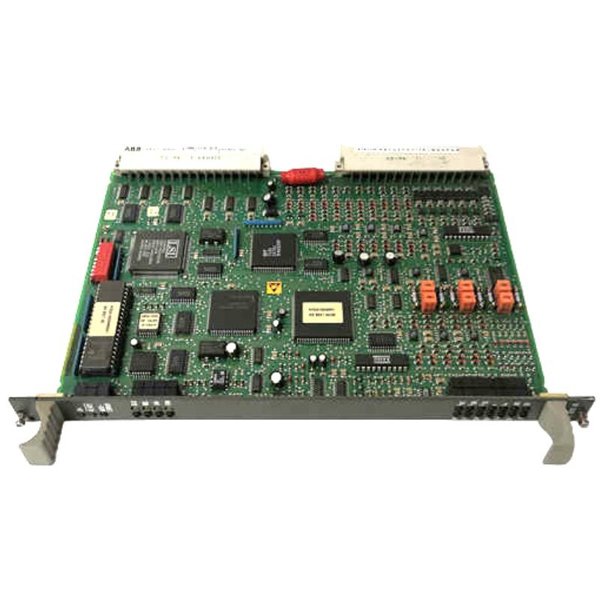

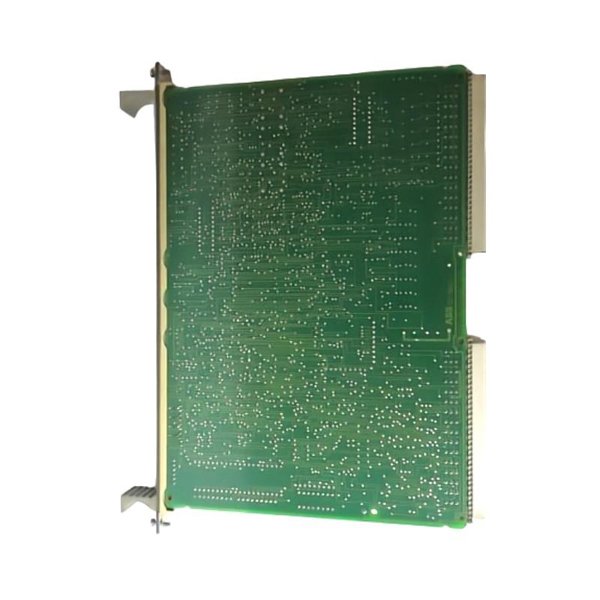

The ABB GD B021 BE01 HIEE300766R0001 is a high-precision gate control unit specifically designed for application in ABB’s medium and high-voltage converter systems, including static excitation systems (SES), synchronous motor drives, and HVDC light systems. This module acts as an intelligent interface between the control logic and the power semiconductor devices such as thyristors or IGBTs, governing their switching characteristics, protection, synchronization, and firing precision.

Developed for use in critical power conversion applications, this gate unit incorporates advanced timing, firing control, voltage isolation, and real-time diagnostics. It enables precise conduction angle control and reliable firing pulse generation even under high electrical noise and rapid load transients. The GD B021 BE01 is integral in ensuring stable and safe operation of power electronic converters under varying grid and load conditions.

This module is part of ABB’s trusted industrial electronics ecosystem and is frequently deployed in critical infrastructure across power generation, metallurgy, marine propulsion, and renewable energy applications.

Technical Specifications

Applications

The ABB GD B021 BE01 gate control unit is deployed in a wide range of industrial applications where precise power electronic control is required. These include:

• Static Excitation Systems (SES): Firing control for thyristors regulating excitation current to generator field windings.

• Synchronous Motor Control: Ensures coordinated gate triggering in drive systems with high inertia loads.

• High-Voltage Converters (HVDC): Controls switching sequences in HVDC light and medium-power converter stations.

• Steel and Metallurgy Industries: Supports arc furnace and rolling mill drives by controlling large power converters.

• Marine Propulsion Systems: Used in electric propulsion drive inverters with stringent fault tolerance requirements.

• Renewable Energy Integration: Enables grid-synchronized converter operation in wind and solar inverter platforms.

Product Advantages

• Precise Gate Pulse Timing: Enables reliable firing with accurate phase control, improving converter efficiency.

• High Electrical Isolation: Ensures safe and interference-free operation in high-voltage environments.

• Integrated Protection Logic: Built-in monitoring detects gate failure, phase imbalance, or short pulses.

• Robust Signal Integrity: Immune to electromagnetic interference due to isolated signal paths and shielding.

• Modular Integration: Easily fits into ABB converter racks, simplifying design and reducing commissioning time.

• Real-Time Diagnostics: Offers visual and signal-based diagnostics for immediate fault recognition.

• Optimized for ABB Ecosystems: Fully compatible with ABB excitation and converter families.

• Enhanced Reliability: Passive cooling and industrial-grade components improve lifespan and reduce maintenance.

• Wide Application Flexibility: Suitable for both voltage-source and current-source converter architectures.

• Supports Legacy and Modern Systems: Backward-compatible in many ABB platforms, simplifying retrofit projects.

FAQ

1. Does the GD B021 BE01 support both phase-controlled and full-controlled bridge configurations?

   Yes, it can be configured for both, depending on the converter topology and software logic.

2. What isolation technique is used between control and gate output?

   Optical isolation and high-isolation transformers ensure separation between control logic and power stage.

3. Can this module detect missing gate pulses or misfiring events?

   Yes, it features real-time detection of missing pulses and signals a fault to the supervisory system.

4. Is this unit compatible with ABB UNITROL excitation systems?

   Yes, it is commonly integrated within UNITROL 6000 and related systems as the gate control interface.

5. What are the firing angle accuracy and resolution provided?

   Firing angle accuracy is within ±0.5 degrees, with fine-resolution programmable steps.

6. How is synchronization achieved with the AC line input?

   A phase-locked loop (PLL) ensures precise line synchronization for triggering.

7. Does the unit support feedback from power semiconductor gate current?

   It includes feedback circuitry that confirms gate signal delivery to the semiconductor.

8. Can this gate unit be configured for pulse-width or burst triggering?

   Yes, triggering patterns can be adjusted for pulse-width modulation or burst mode as required.

9. Is the GD B021 BE01 hot-swappable within a live converter rack?

   No, all high-voltage and control power must be isolated before replacing this unit.

10. What types of faults are reported to the central controller through this unit?

    Gate fault, trigger loss, phase synchronization error, and shorted SCR are among the key fault signals reported.
