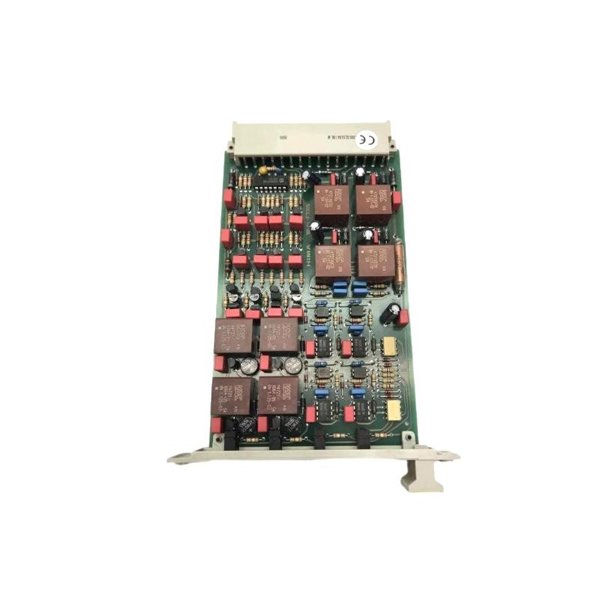

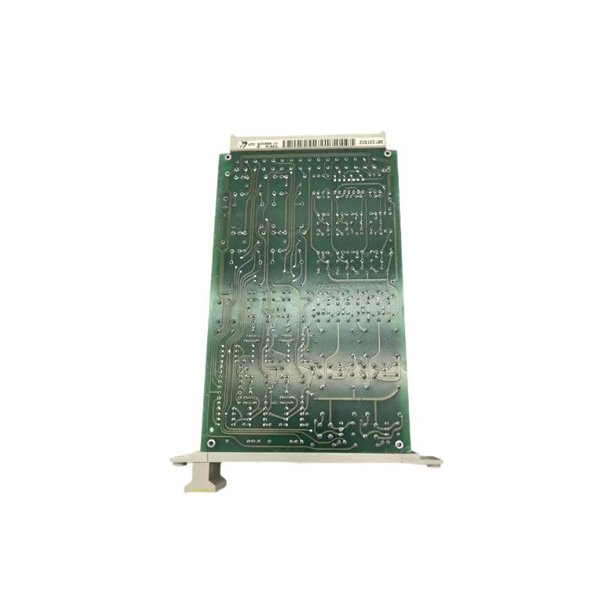

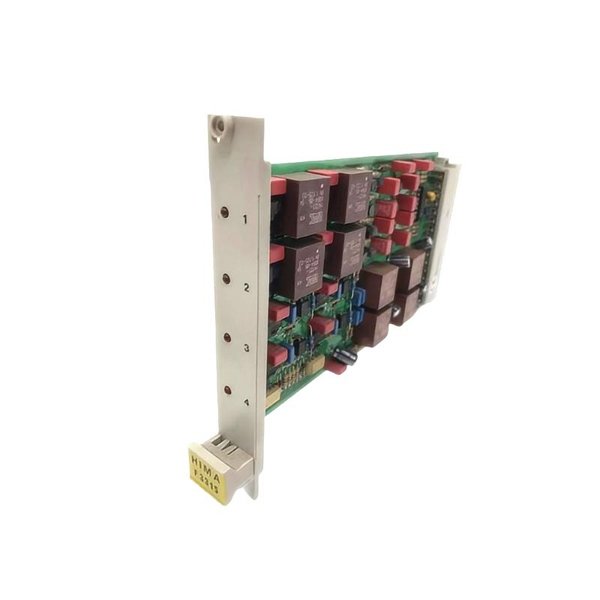

The HIMA F3315 98 1331502 Switching Amplifier Module is a critical component designed for use in industrial automation systems, specifically in safety-related applications where signal amplification and isolation are essential. Manufactured by HIMA, a globally recognized leader in safety automation solutions, the F3315 is engineered to meet the demanding requirements of SIL-rated safety systems.

The F3315 functions as an interface between field devices such as sensors or limit switches and control systems, providing electrical isolation and signal conditioning. This switching amplifier module ensures that only clean, accurate signals reach the safety system, helping prevent malfunctions due to noise or improper signal levels.

Product Specifications

Product Applications

The HIMA F3315 is ideal for integration in a wide range of industrial applications, especially where safety and reliability are of paramount importance. Its primary application areas include:

• Process Automation: Oil & gas refineries, petrochemical plants, and power generation.

• Manufacturing Automation: Steel mills, paper plants, and food processing units.

• Critical Safety Systems: Emergency shutdown (ESD) systems, burner management systems (BMS), and fire & gas systems (FGS).

• Machine Protection: Used in conjunction with limit switches and proximity sensors to prevent hazardous conditions.

Product Advantages

• Certified Safety: Complies with international safety standards such as IEC 61508 (SIL), ensuring trustworthy performance in critical applications.

• Dual Channel Input: Supports redundancy or multiple input sources, enhancing flexibility.

• High Isolation Voltage: Reliable galvanic isolation between input, output, and power circuits, protecting systems from surges or ground loops.

• Compact Design: Slim housing ideal for space-constrained control cabinets.

• Durable Build: Withstands industrial-grade conditions including wide temperature ranges and mechanical stress.

• Plug-and-Play Installation: DIN rail mounting and terminal connection allow fast setup and maintenance.

• Long Service Life: Designed for continuous operation in demanding environments.

FAQ

1. What is the main function of the HIMA F3315 module?

   It amplifies and electrically isolates control signals from field devices to safely interface with safety controllers.

2. Can the F3315 be used in SIL 3 certified systems?

   Yes, the F3315 is designed for integration in SIL 2/3 environments as per IEC 61508.

3. Is the module compatible with all types of sensors?

   It supports sensors with dry contact or transistor output, commonly used in safety applications.

4. How is the F3315 mounted in a control cabinet?

   It is DIN rail mounted, facilitating quick and secure installation.

5. Does the F3315 provide signal feedback?

   It provides relay-based output that can be monitored by control systems.

6. What happens if the input signal is interrupted?

   The module fails-safe by opening the output circuit, preventing unsafe operations.

7. Can it operate in outdoor environments?

   It is rated for -20°C to +60°C and should be housed within a protective control cabinet.

8. What type of maintenance is required?

   Routine visual inspection and occasional functional testing are typically sufficient.

9. Is the output contact potential-free?

   Yes, it provides a dry contact output to maintain electrical isolation.

10. Can this module replace older HIMA models?

    Yes, it is often used as a direct replacement in upgrades, depending on the system configuration.
