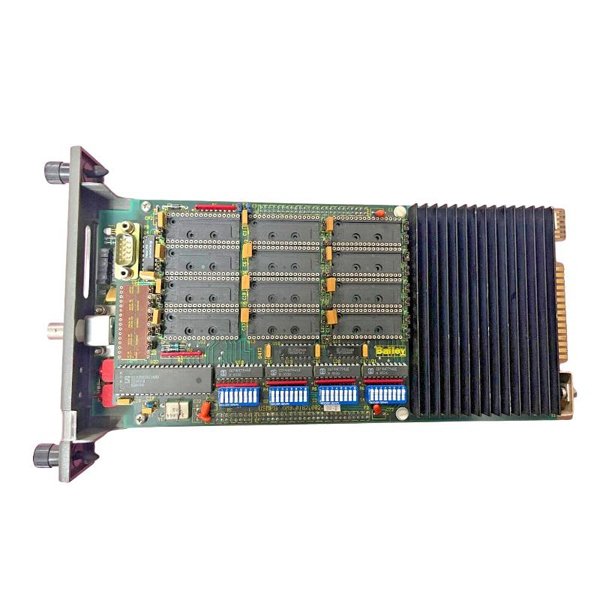

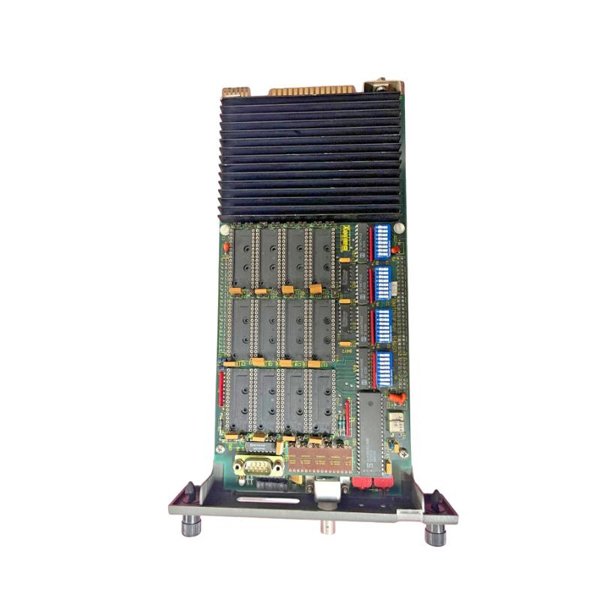

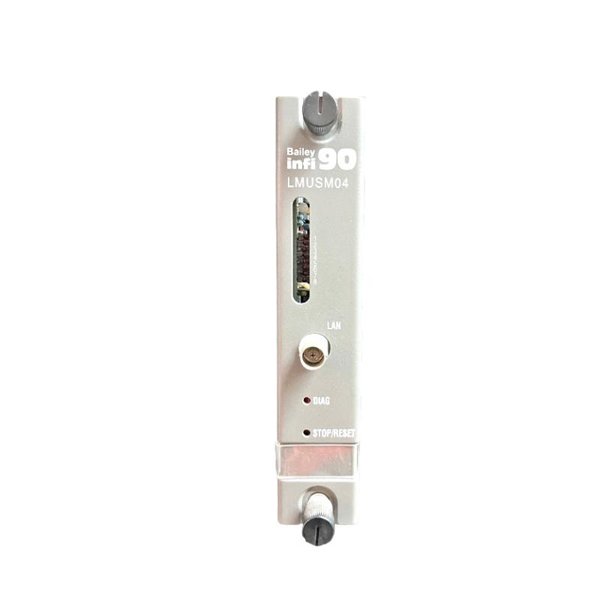

The ABB Bailey LMUSM04 Universal Simulation Module is a sophisticated diagnostic and testing device developed for use within the INFI 90 and Bailey Net 90 Distributed Control Systems (DCS). As a part of the broader LMU series, this simulation module allows plant engineers to simulate field conditions by generating analog and digital signals directly to the I/O modules and control processors. This capability is vital for ensuring system stability, validating configuration, and troubleshooting operations without depending on live process data.

Designed to deliver controlled, repeatable test signals, the LMUSM04 helps simulate process inputs and outputs during Factory Acceptance Testing (FAT), commissioning, operator training, and maintenance cycles. It’s an indispensable module for industries where system integrity and high availability are paramount, such as oil and gas, chemicals, power generation, and water treatment.

The LMUSM04 offers multiple programmable signal types and supports secure integration into existing ABB Bailey systems through backplane mounting. Its compact structure, operational durability, and compatibility with legacy control systems make it a valuable tool for modernizing industrial diagnostics without compromising legacy infrastructure.

Product Specifications

Product Applications

The LMUSM04 is ideal for simulating process input/output in critical environments, including:

• Factory Acceptance Testing (FAT): Used to test control system configurations without live process conditions.

• Commissioning: Enables staged testing of loops and control logic before live plant data is introduced.

• Operator Training: Simulates real-world scenarios for safe and realistic operator training.

• System Maintenance: Supports testing of replaced or updated I/O modules during routine maintenance.

• Loop Testing & Calibration: Allows calibration and validation of analog loops prior to plant start-up.

• DCS Logic Testing: Verifies that control logic functions as expected under simulated input conditions.

Product Advantages

• Advanced Signal Simulation: Simulates various analog and digital signal types for versatile test scenarios.

• Reliable Diagnostic Tool: Helps identify faults in control logic, I/O channels, and communication links.

• Seamless Integration: Designed specifically for ABB Bailey INFI 90 and Net 90 architectures.

• Training Friendly: Supports control room operator and technician training without real plant risks.

• Time-Saving in Maintenance: Reduces downtime by enabling off-line testing during scheduled maintenance.

• No External Wiring Needed: Uses backplane communication for signal routing, minimizing installation complexity.

• Durable & Compact: Built for continuous use with industrial-grade materials in a space-saving form factor.

Frequently Asked Questions (FAQ)

1. What is the primary function of the LMUSM04 module?

   It simulates field I/O signals, allowing safe and efficient testing of control systems without real process inputs.

2. Can it simulate both analog and digital signals?

   Yes, it supports 4–20 mA, 0–20 mA, 1–5 V, and standard digital signals (HIGH/LOW).

3. Is the LMUSM04 compatible with modern ABB DCS systems?

   It is primarily designed for legacy INFI 90, Net 90, and Symphony systems, though it may be used in hybrid setups.

4. Does it allow hot-swapping?

   No, installation or removal should be performed with the rack powered down.

5. How is the LMUSM04 powered?

   It draws power through the system’s backplane, eliminating the need for external wiring.

6. How many channels can it simulate?

   It typically supports multiple analog and digital channels, depending on the application configuration.

7. Can the module be used in training simulators?

   Yes, it is frequently used in training setups to provide simulated inputs for operator learning.

8. Does the module provide error or status indicators?

   Yes, onboard LEDs indicate channel activity, simulation status, and fault conditions.

9. What are its environmental operating conditions?

   It operates between 0°C and 60°C and is suitable for high-humidity environments (up to 95% RH).

10. What’s the benefit of using LMUSM04 over manual simulation?

    It automates simulation, ensures precision, and integrates seamlessly with ABB DCS hardware for efficiency and safety.
