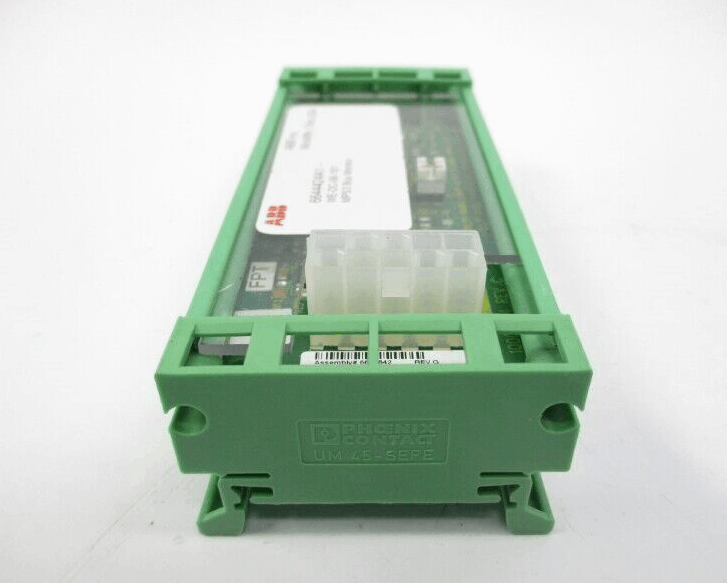

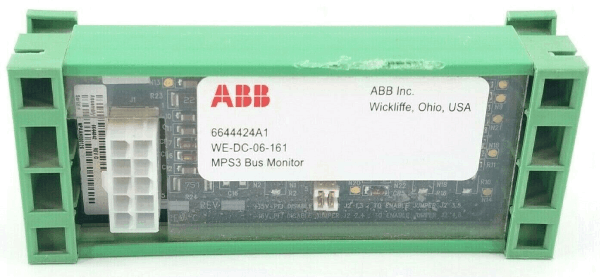

The ABB 6644424A1 serves as a voltage bus monitor assembly within the Harmony Rack Power System (MPS3). This component monitors the voltage levels of +5VDC, +15VDC, -15VDC, and MCOM on the system bus bar. If any of these voltages fall out of tolerance, the monitor generates a low true signal called PF1. Notably, the 6644424A1 consumes low input current, drawing less than 50mA. It is housed in a compact enclosure suitable for easy DIN rail mounting.

Key Features

• Monitors +5VDC, +15VDC, -15VDC, and MCOM voltages on the system bus bar.
• Generates a low true signal, PF1, when detecting out-of-tolerance voltages.
• Consumes less than 50mA of input current.
• Encased in a compact DIN-rail mountable enclosure.

Technical Specifications

• Monitored Voltages: +5VDC, +15VDC, -15VDC, MCOM.
• Input Current: Less than 50mA.
• Enclosure Type: DIN-rail mountable.
• Dimensions: 90mm x 60mm x 25mm.
• Weight: 0.2kg.

FAQs

Q: What is the input voltage range of the ABB 6644424A1 Voltage Bus Monitor?

A: The input voltage range of the ABB 6644424A1 Voltage Bus Monitor is 0-600V AC/DC.

Q: How accurate is the measurement provided by the voltage bus monitor?

A: The voltage bus monitor offers measurement accuracy of ±0.5% of the reading.

Q: What communication interface does the ABB 6644424A1 Voltage Bus Monitor support?

A: The ABB 6644424A1 Voltage Bus Monitor supports Modbus TCP/IP communication interface.

Q: What is the operating temperature range of the voltage bus monitor?

A: The voltage bus monitor can operate in temperatures ranging from -20°C to 70°C.

Q: What are the dimensions of the ABB 6644424A1 Voltage Bus Monitor?

A: The dimensions of the ABB 6644424A1 Voltage Bus Monitor are 120mm x 80mm x 40mm.
