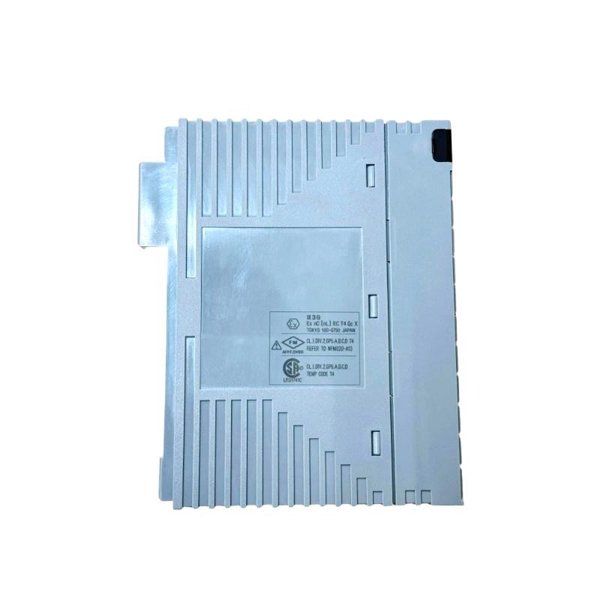

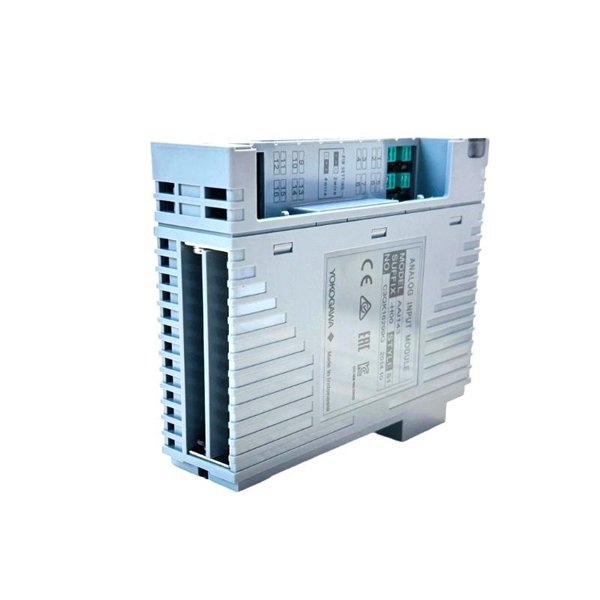

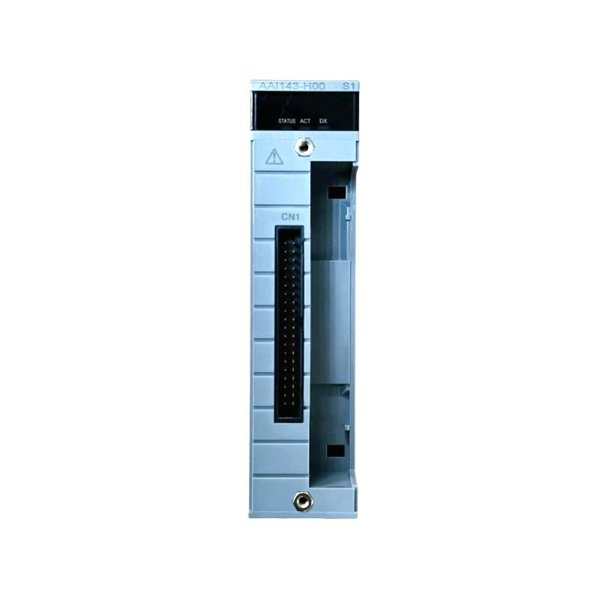

Yokogawa AAI143-H00/A4S10 Analog Input Module
Manufacturer:Yokogawa
Product Number:AAI143-H00/A4S10
Product Type:Analog Input Module
Origin:Japan
Dimensions:107.5 × 32.8 × 130 mm
Weight:0.3 kg
Views:39
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa AAI143-H00/A4S10 is a high-performance analog input module designed for use in Yokogawa’s CENTUM CS 3000 and CENTUM VP control systems. It supports 4-channel isolated analog inputs and is ideal for precise and reliable analog signal acquisition in industrial automation systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | AAI143-H00/A4S10 |
| Input Channels | 4 isolated analog input channels |
| Input Signal | 4–20 mA DC |
| Input Resistance | 250 Ω |
| Isolation | Channel-to-channel and channel-to-ground |
| Resolution | 16-bit |
| Accuracy | ±0.1% of span |
| Power Supply | Supplied by base unit |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Mounting | Mounted on a dedicated terminal board |
| Dimensions (W×H×D) | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
Applications
-
Process control systems in chemical and petrochemical plants
-
Data acquisition in oil and gas facilities
-
Analog signal monitoring in power generation units
-
Control system integration for water treatment plants
-
Pharmaceutical manufacturing automation
Advantages
-
High-precision 16-bit resolution ensures accurate signal reading
-
Channel-to-channel isolation improves noise immunity
-
Compact and lightweight design simplifies installation
-
Compatible with a wide range of Yokogawa control systems
-
Reliable operation under industrial environmental conditions
FAQ
Q1: What type of signals can the AAI143-H00/A4S10 receive?
A1: It supports 4–20 mA DC analog signals.
Q2: Is each input channel isolated from the others?
A2: Yes, the module provides channel-to-channel and channel-to-ground isolation.
Q3: What is the resolution of this module?
A3: It features 16-bit resolution for accurate analog input.
Q4: Can it be used in high-temperature environments?
A4: The module operates in temperatures between 0 to 50°C.
Q5: How many input channels are available?
A5: It supports 4 analog input channels.
Q6: Is this module hot-swappable?
A6: No, the module should be powered down before replacement.
Q7: What is the size of the AAI143-H00/A4S10 module?
A7: Its dimensions are 107.5 × 32.8 × 130 mm.
Q8: What is the weight of the module?
A8: It weighs approximately 0.3 kg.
Q9: Is this module suitable for use in redundant systems?
A9: Yes, it supports integration in redundant architectures.
Q10: What type of terminal board is used with this module?
A10: It mounts on a dedicated terminal board compatible with the Yokogawa system.
