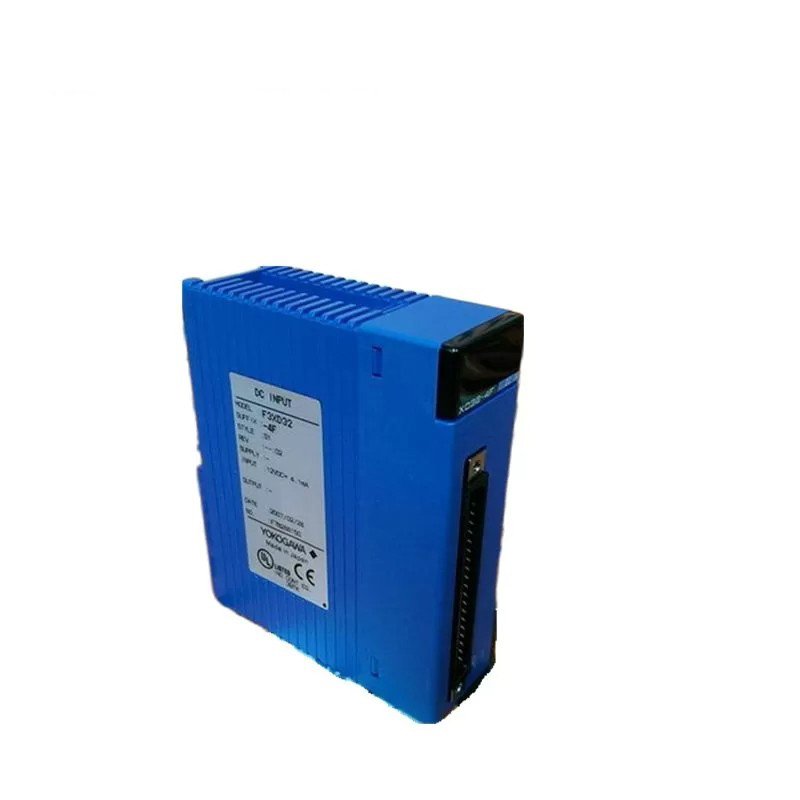

Yokogawa F3XD32-3F DC Input Module

The YOKOGAWA F3XD32-3F is a DC input module for the FA-M3 PLC system. It reads analog voltage signals from external devices and converts them into digital signals for PLC processing. The module has 32 input channels, each configurable to accept -10V to +10V or 0V to +10V voltage ranges. Additionally, the module features a high-speed input mode that captures pulses as short as 0.1 ms.

Specifications

Input channels: 32

Input voltage range: -10V to +10V or 0V to +10V

Input impedance: 2 MΩ

Input accuracy: ±0.5% of full scale

A/D conversion resolution: 16 bits

Update rate: 10 ms

High-speed input mode: Pulse width as short as 0.1 ms

Power supply: 24 VDC

Power consumption: 2.5 W

Operating temperature: -20°C to +60°C

Storage temperature: -40°C to +80°C

Humidity: 90% RH (non-condensing)

Dimensions: 100 mm x 28 mm x 80 mm

Weight: 200 g

Applications

You can use the YOKOGAWA F3XD32-3F in a variety of applications, including:

• Industrial automation
• Process control
• Machine control
• Test and measurement

Additional Features

This module includes several protective features:

• Short-circuit protection
• Open-circuit detection
• Ground fault detection
• Reverse polarity protection
