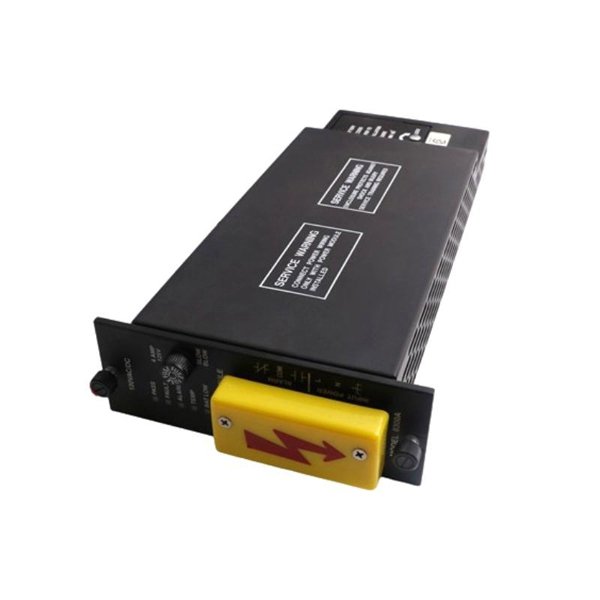

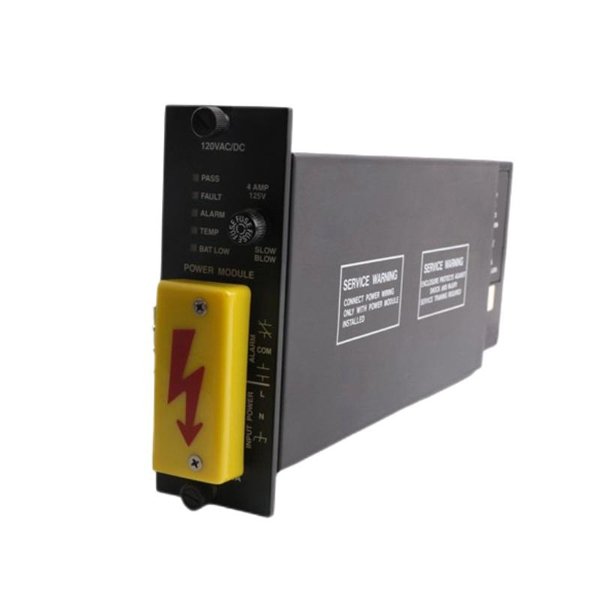

The Triconex 8306E Power Supply Module is a critical component within the Triconex safety system architecture, designed to provide a stable and reliable power source for safety instrumented systems (SIS). Engineered to meet stringent safety and operational standards, the 8306E module delivers continuous DC power to the Triconex control system racks, ensuring uninterrupted system performance under demanding industrial conditions. It features advanced protection mechanisms against overvoltage, undervoltage, and short circuits, safeguarding both the power supply and the connected modules. The 8306E power supply module is known for its robust design, ease of installation, and compatibility with a wide range of Triconex processors and I/O modules, making it an indispensable asset in critical safety applications.

Product Specifications

Applications

The Triconex 8306E Power Supply Module is widely utilized in industries that demand high levels of safety and reliability. Common application scenarios include:

• Providing power to Triconex safety instrumented systems in oil and gas plants

• Supplying reliable DC power in petrochemical and chemical manufacturing facilities

• Powering safety control systems in nuclear power plants

• Ensuring continuous operation of emergency shutdown systems (ESD)

• Supporting safety-critical control in pharmaceuticals and food processing industries

• Powering distributed control systems (DCS) that require certified safety power sources

Advantages

• High Reliability: Designed to deliver uninterrupted power with advanced protective circuitry.

• Safety Certified: Meets SIL 3 standards, ensuring compliance with industry safety regulations.

• Compact Design: Small footprint allows easy integration into existing Triconex racks or panels.

• Wide Input Voltage Range: Compatible with varying industrial power supplies worldwide.

• Thermal Protection: Built-in thermal shutdown prevents damage from overheating.

• Ease of Installation: Supports DIN rail or rack mounting for flexible setup.

• Efficient Operation: High efficiency reduces energy consumption and heat generation.

• Robust Construction: Suitable for harsh industrial environments with wide temperature tolerance.

Frequently Asked Questions (FAQ)

1. What output voltage does the Triconex 8306E power supply provide?

   It delivers a regulated 24 V DC output to power Triconex system components.

2. What input voltage range is supported by the 8306E module?

   The module operates with an input voltage range from 85 to 264 VAC at frequencies between 47 and 63 Hz.

3. Is the 8306E power supply certified for safety applications?

   Yes, it is certified to meet SIL 3 requirements, ensuring suitability for safety instrumented systems.

4. What protective features are built into the power supply?

   It includes protections against overvoltage, undervoltage, short circuits, and thermal overload.

5. Can the 8306E module be mounted on a DIN rail?

   Yes, the design supports both DIN rail and rack mounting for flexible installation.

6. What is the maximum continuous output current capacity?

   The module can provide up to 5 A of continuous current.

7. What operating temperature range does the power supply support?

   It is designed to function reliably in temperatures from 0°C to 70°C.

8. What is the efficiency rating of the 8306E power supply?

   The unit operates at an efficiency greater than 85%, optimizing power consumption.

9. Is the 8306E compatible with all Triconex system modules?

   It is compatible with most Triconex processors and I/O modules that require a 24 V DC power supply.

10. What safety certifications does the 8306E hold?

    Besides SIL 3 certification, it complies with relevant industrial safety standards to ensure reliable and safe operation.
