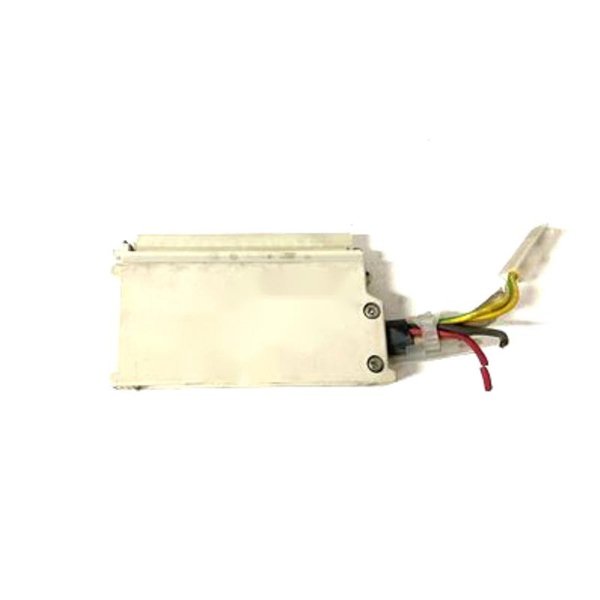

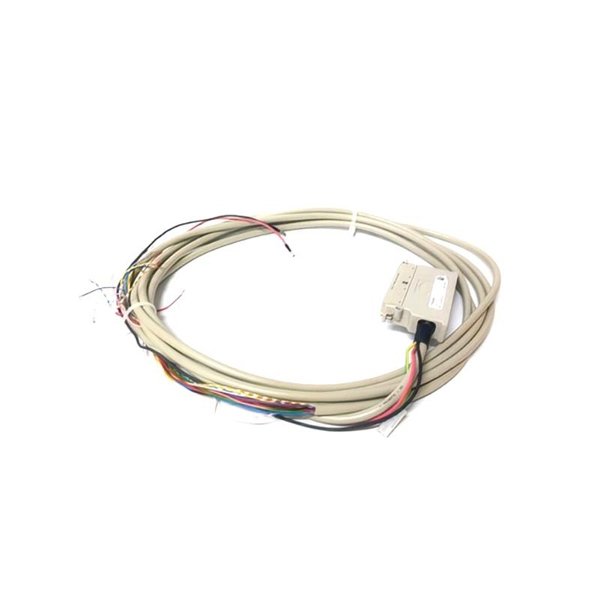

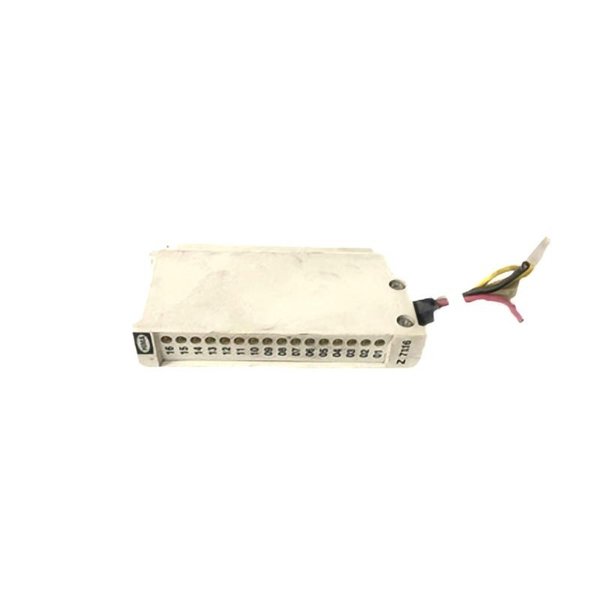

The HIMA Z7116 Cable Plug is a high-performance industrial connector designed to interface seamlessly with HIMA safety modules, such as the F3221 and F3236. Manufactured in Germany, this 16-pin cable plug ensures reliable signal transmission in safety-critical applications. Its robust construction and compliance with international standards make it suitable for various demanding environments, including turbine control systems and industrial automation.

Technical Specifications

Product Applications

The HIMA Z7116 Cable Plug is designed for use in various industrial applications where safety and reliability are paramount:

• Turbine Control Systems: Ensures reliable connections in power generation facilities.

• Industrial Automation: Facilitates secure communication between control systems and machinery.

• Safety Systems: Integral in connecting safety-related devices to HIMA safety controllers.

• Hazardous Environments: Suitable for areas prone to dust, moisture, or extreme temperatures due to its IP67 rating.

• Process Control Systems: Ensures reliable connections in chemical, oil, and gas industries.

Product Advantages

• Robust Construction: Durable materials ensure long-lasting performance in harsh conditions.

• High Protection Class: IP67 rating provides excellent resistance to dust and water ingress.

• Versatile Compatibility: Designed to work seamlessly with HIMA’s F3221 and F3236 modules.

• Easy Installation: User-friendly design allows for quick and secure connections, reducing installation time.

• Compliance with Standards: Meets international safety and environmental standards, ensuring reliability and safety.

• Compact Design: Space-saving dimensions make it suitable for installations with limited space.

• Reliable Signal Transmission: Minimizes signal loss, ensuring consistent communication between components.

• Temperature Resistance: Operates effectively in a wide temperature range, accommodating various industrial environments.

• Maintenance-Friendly: Designed for easy maintenance, reducing downtime and operational costs.

• Enhanced Safety: Provides secure connections, minimizing the risk of accidental disconnections or failures.

Frequently Asked Questions (FAQ)

1. What is the primary use of the HIMA Z7116 Cable Plug?

   • It is used to connect field devices to HIMA safety modules, ensuring secure and reliable signal transmission in safety-critical applications.

2. Is the cable plug suitable for outdoor use?

   • Yes, with an IP67 rating, it is dust-tight and water-resistant, making it suitable for outdoor and harsh environments.

3. What is the operating temperature range?

   • The plug operates effectively between -20°C and +60°C.

4. Can it be used with other HIMA modules besides F3221 and F3236?

   • While specifically designed for F3221 and F3236, compatibility with other modules should be verified based on technical requirements.

5. What are the weight of the plug?

   • It  weighs 0.5 kg.

6. Does the plug comply with international standards?

   • Yes, it complies with CE, UL, and EN standards.

7. Is the installation process complicated?

   • No, the plug is designed for easy and secure installation, reducing setup time.

8. What is the warranty period for the product?

   • The product comes with a 12-month warranty.

9. Does the plug have LED indicators?

   • Yes, it features 16 LED indicators, one for each channel, providing clear visual feedback.

10. Is the plug resistant to high humidity?

    • Yes, it can operate in environments with up to 95% relative humidity, non-condensing.
