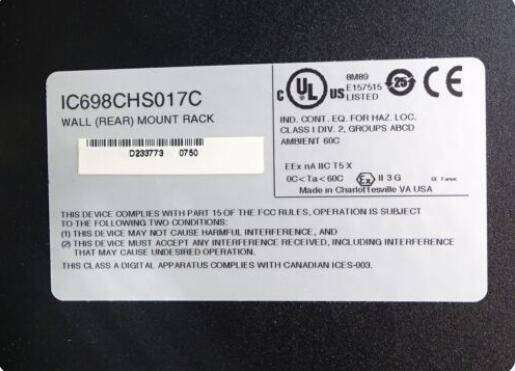

GE Fanuc IC698CHS017 17-Slot modular I/O expansion Module

The GE IC698CHS017 stands as a versatile 17-slot modular I/O expansion module tailored for the RX7i PACSystem. This module presents an extensive array of capabilities, encompassing up to 172 digital inputs, 128 digital outputs, 32 analog inputs, and 8 analog outputs. Its compatibility spans across all RX7i controllers, facilitating its integration into a diverse range of industrial automation applications.

Key Features

This 17-slot module boasts a comprehensive set of features:

• Supports up to 172 digital inputs, 128 digital outputs, 32 analog inputs, and 8 analog outputs.
• Seamless compatibility with all RX7i controllers, ensuring a seamless fit into various setups.
• Wide-ranging input and output voltage capacity, enhancing flexibility.
• Facilitates high-speed data transfer, optimizing performance.
• Comes equipped with IP67 protection, safeguarding against environmental factors.

Technical Specifications

The GE IC698CHS017 boasts impressive technical specifications:

• Digital inputs: 172 channels, supporting 24 VDC or 24 VAC, with currents of 20 mA or 10 mA.
• Digital outputs: 128 channels, accommodating 24 VDC or 24 VAC, with currents of 20 mA or 10 mA.
• Analog inputs: 32 channels, spanning a range of 0 to 10 VDC or 4 to 20 mA.
• Analog outputs: 8 channels, with an output range of 0 to 10 VDC or 4 to 20 mA.
• Data transfer rate: Swift 100 kbps for efficient communication.
• Protection rating: Impressive IP67 protection.
