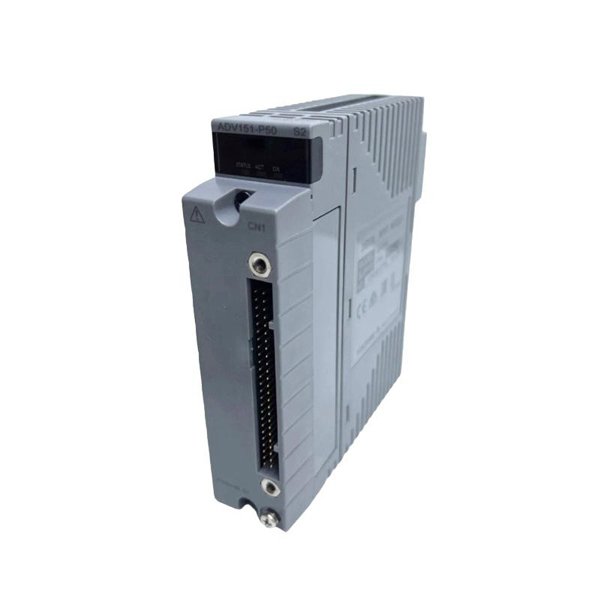

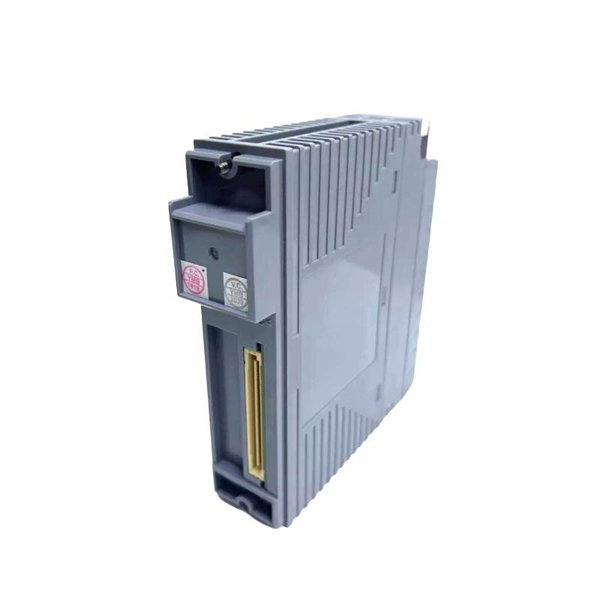

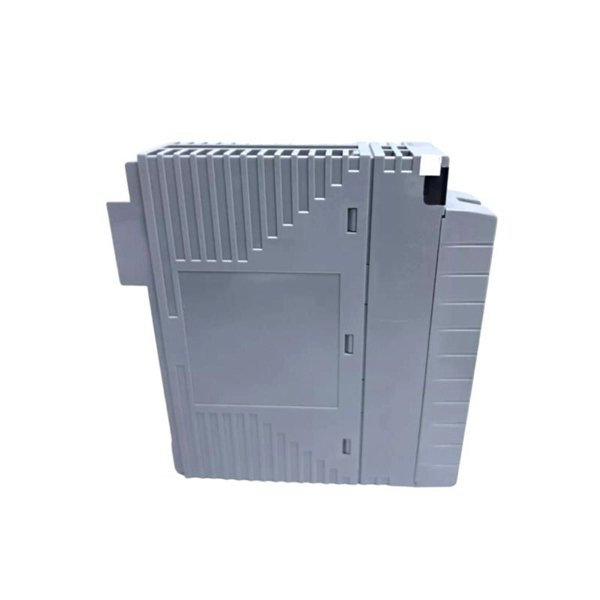

Yokogawa ADV151-P50/B5S00 Digital Input Module

The Yokogawa ADV151-P50/B5S00 Digital Input Module is a high-precision digital input device tailored for robust industrial automation and control systems. As part of the CENTUM VP distributed control system family, this module offers excellent signal acquisition capabilities with high immunity against electrical noise and interference. It supports both dry contact and 24 VDC voltage inputs, ensuring broad compatibility with various field devices such as switches, relays, and proximity sensors.

Designed for harsh industrial environments, the ADV151-P50/B5S00 provides optical isolation to protect sensitive control components from voltage surges and transient disturbances. Its modular plug-in design facilitates easy installation, maintenance, and hot-swapping, which is crucial for minimizing system downtime in continuous operation plants.

Product Parameters

Product Applications

The ADV151-P50/B5S00 module is widely used in industrial process control and safety-critical systems across various industries:

• Oil and Gas: Monitoring valve positions, pump statuses, and emergency shutdown signals.

• Power Generation: Supervising breaker positions, turbine conditions, and protective relay statuses.

• Chemical Processing: Controlling discrete alarm inputs and process equipment states.

• Manufacturing Automation: Detecting machine operation signals, fault alarms, and safety interlocks.

• Water Treatment Facilities: Managing pump and valve digital inputs for process automation.

• Transportation and Infrastructure: Integration with control systems for signaling and safety monitoring.

Product Advantages

• High Signal Accuracy: Ensures reliable and precise detection of digital signals.

• Fast Response: Provides signal processing with minimal latency (< 5 ms).

• Robust Electrical Isolation: Protects control system from voltage spikes and noise interference.

• Compact Design: Optimizes space in control panels while allowing scalability.

• Hot-Swappable: Enables maintenance and module replacement without system downtime.

• Wide Operating Range: Suitable for use in varied industrial environments with wide temperature and humidity tolerances.

• Energy Efficient: Low power consumption reduces thermal load and operational costs.

• Integrated Diagnostics: Facilitates early detection of input faults and channel status.

FAQ

1. How many input channels are available on the ADV151-P50/B5S00 module?

It supports 16 isolated digital input channels.

2. What types of input signals does this module accept?

It accepts dry contact inputs as well as 24 VDC voltage inputs.

3. What is the nominal operating voltage range for the inputs?

The inputs operate within 19 to 32 VDC, typically 24 VDC.

4. What is the response time for detecting input signals?

The response time is 5 milliseconds or less.

5. Does the module provide isolation between input circuits and the logic system?

Yes, it employs optical isolation to protect the control logic from electrical disturbances.

6. Can this module be replaced while the system is running?

Yes, it supports hot-swapping for maintenance without system interruption.

7. Is the ADV151-P50/B5S00 compatible with Yokogawa CENTUM VP systems?

Yes, it is designed for seamless integration with CENTUM VP systems.

8. What environmental conditions can this module operate under?

It can operate in temperatures from 0°C to 55°C and relative humidity of 5–95% non-condensing.

9. What diagnostic features does the module support?

It supports channel status monitoring and fault detection.

10. What power supply does the module require?

It requires a 5 VDC power supply from the base unit for operation.
