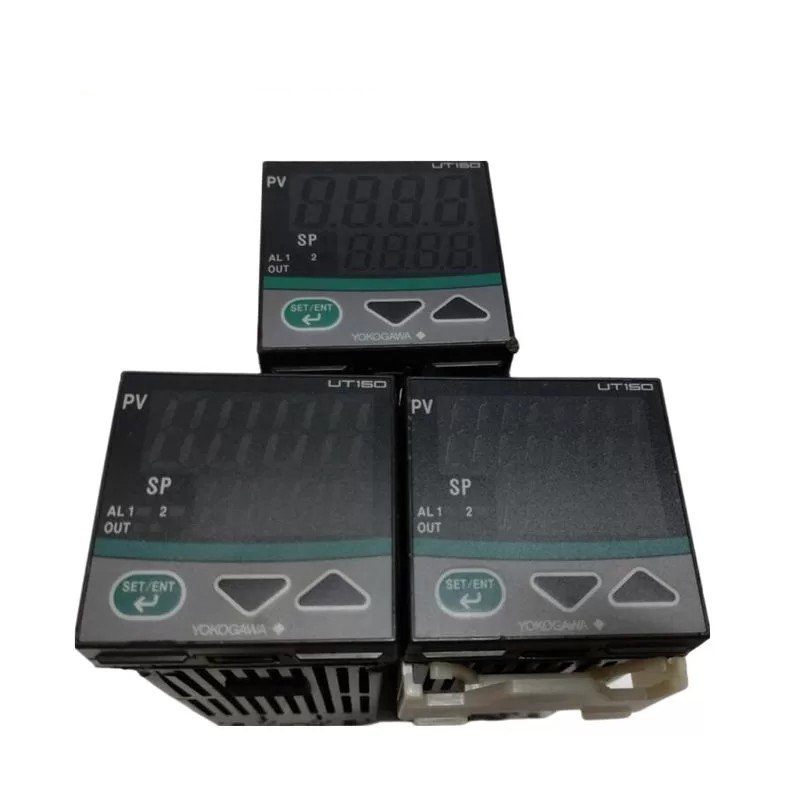

Yokogawa UT150-AN/AL/EX Temperature Controller

The Yokogawa UT150-AN/AL/EX is a 1/4 DIN sized, single-loop temperature controller that offers a variety of features for a wide range of applications. You can use it for both heating and cooling processes. The UT150 is easy to use and configure, and it provides a variety of display options to keep you informed of the process.

Features

• 1/4 DIN size
• Single-loop temperature control
• PID control
• Autotuning
• Relay output
• Analog output
• Alarm output
• RS-232C communication
• Easy to use and configure
• Variety of display options

Technical Specifications

Input:

• Thermocouple: J, K, T, E, R, S, B, N, ±0.5% of full scale
• RTD: Pt100, ±0.1% of full scale
• Analog: 4 to 20 mA, ±0.2% of full scale

Output:

• Relay: 1A at 250 VAC
• Analog: 4 to 20 mA, ±0.2% of full scale
• Alarm: Open drain, 24 VDC

Power Supply: 100 to 240 VAC, 50/60 Hz

Power Consumption: 10 VA

Operating Temperature: -10 to 55°C

Storage Temperature: -20 to 65°C

Humidity: 0 to 90% RH, non-condensing

Dimensions: 48 x 48 x 110 mm

Weight: 0.2 kg
