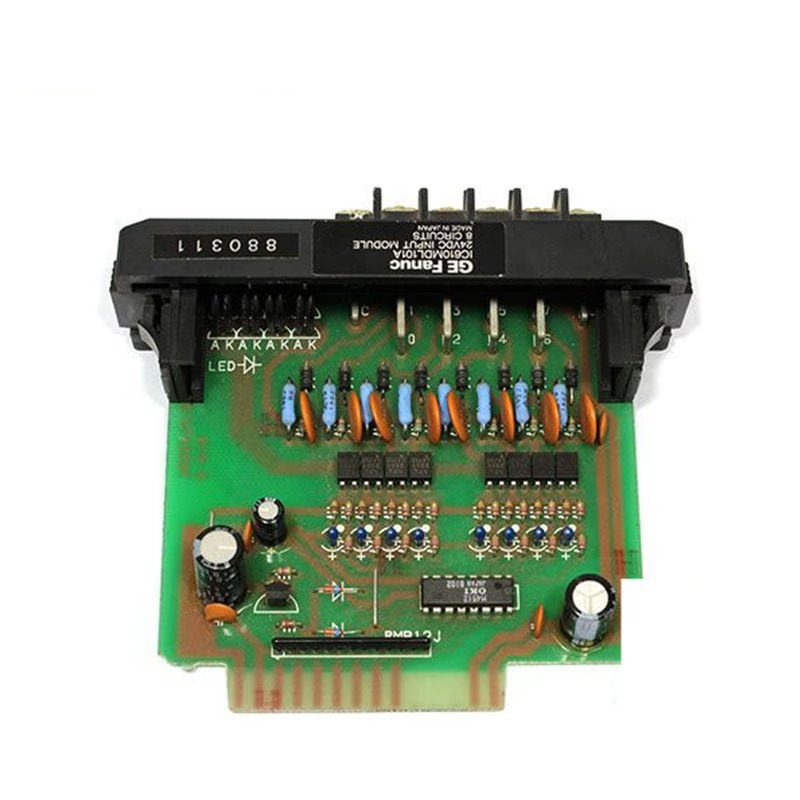

GE Fanuc IC610MDL101A Discrete Input Module

The GE Fanuc IC610MDL101A is a discrete input module designed for use with the Series One programmable logic controllers (PLCs). It is used to receive on/off signals from various external devices such as sensors, switches, and pushbuttons. The module supports 8 input points, allowing it to monitor multiple devices simultaneously. Its 24 VDC input voltage compatibility and sinking input type make it ideal for standard control circuits. This module also features LED indicators for each input, providing real-time status updates. Removable terminal blocks ensure easy wiring and maintenance, making the IC610MDL101A a flexible and reliable solution for industrial automation applications.

Technical Specifications

• Manufacturer: GE Fanuc
• Series: Series One
• Part Number: IC610MDL101A
• Product Type: Input Module
• Number of Input Points: 8
• Input Voltage: 24V DC
• Input Current: 12 mA at rated voltage
• Input Impedance: 1.8 K ohms
• ON Level: Above 3V DC
• OFF Level: Below 0.8V DC
• Response Time: 4 to 15 ms (ON to OFF), 4 to 15 ms (OFF to ON)
• Power Consumption: 14 mA (all inputs on) from 24V DC supply
• Mounting: Compatible connectors and clear mounting instructions for easy installation
