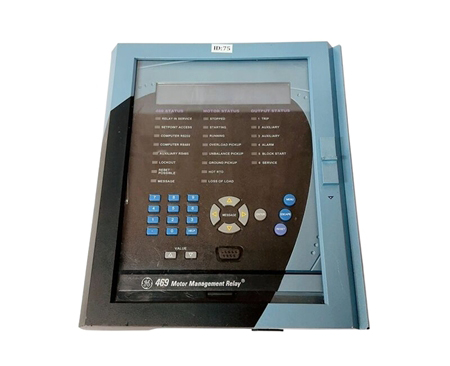

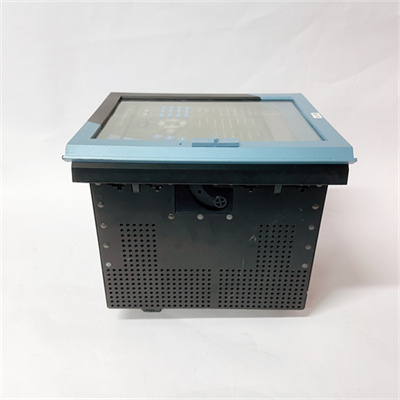

GE 469-P1-HI-A20-E Product Overview

GE 469-P1-HI-A20-E relay integrates multiple protection functions,such as overload,short circuit,ground fault,stall,overheating,etc.,and supports custom protection curves.In addition,it has flexible configuration options and can be configured through software to meet different application requirements.

Main Features

Multi-function integration

The relay integrates multiple functions such as overload protection,underload protection,stall protection,phase sequence protection,etc.

It can monitor the current,voltage and temperature of the motor and take corresponding actions according to the preset thresholds,such as cutting off the power supply and issuing alarm signals.

High-precision control

It has high-precision control capabilities and can accurately monitor the operating status of the motor.

Quickly respond when needed to avoid motor damage or failure.

Easy to configure and debug

Equipped with a user-friendly interface and configuration tools,it is convenient for users to set parameters and configure functions.

Supports multiple communication protocols and interfaces,convenient for integration with other devices and systems.

High reliability

After rigorous quality and reliability testing,it can operate stably for a long time in harsh industrial environments.

The structure is strong,durable,and has the ability to resist electromagnetic interference.

Scalability

Supports modular design,which can be expanded and upgraded according to actual needs.

Users can add functional modules or adjust parameter settings as needed to meet different motor control needs.

Technical specifications

Input voltage:90-300 VDC or 70-265 VAC,frequency is 48-62 Hz.

Output voltage:DC 90-300 V or AC 70-265 V.

Current input:P1=1 A phase transformer secondary side.

Analog output:4-20 mA.

Operating temperature range:-40°C to+60°C.

Storage temperature range:-40°C to+80°C.

Protection level:IP40(front),IP20(back).

Application fields

GE 469-P1-HI-A20-E relay is widely used in industrial automation,power systems,oil and gas,chemical industry,paper printing,textile printing and dyeing,electronic manufacturing,automobile manufacturing,tobacco,plastic machinery,water conservancy,water treatment/environmental protection and municipal engineering.In these fields,it is used to protect and control various medium and large motor equipment,such as fans,water pumps,conveyor belts,etc.

Product advantages

Enhanced front panel design:with corrosion-resistant coating,suitable for harsh environmental conditions.

Optional conformal coating:provides additional protection and extends equipment life.

Self-assessment function:can evaluate the health of the motor and provide configurable alarms when there is a problem with the rotor.

Easy-to-integrate communication interface:supports multiple communication protocols for easy integration with other devices and systems.
