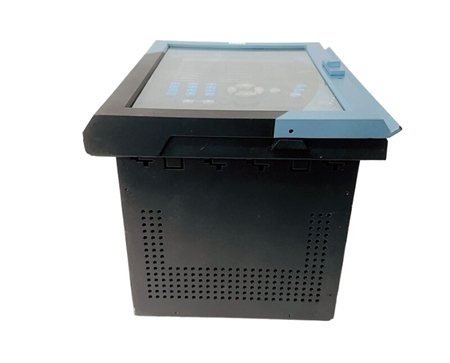

The part number GE 469-P1-HI-A20-E refers to a specific model of a protective relay from General Electric (GE), specifically from the GE Multilin 469 series. Below is an overview of this component and its functionality:

GE 469-P1-HI-A20-E Overview

– Product Description:

– The GE 469 relay is an integrated protective relay primarily designed for the protection of medium and large motors. It is used to monitor the operating conditions of motor applications and to protect against various fault conditions.

– Key Features:

– Protection Functions: The 469 relay offers multiple protection settings including overload, phase and ground fault protection, loss of phase protection, and stall protection.

– Communication Capabilities: It typically features communication protocols that allow it to be integrated into a larger control system, offering functionalities like remote monitoring and control.

– User Interface: The relay usually comes with a user-friendly interface for easy configuration and settings adjustment, often equipped with LCD displays and diagnostic indicators.

– Inputs and Outputs: It generally supports a range of input and output options, which can be customized to suit different applications and site requirements.

– Programmability: The relay is programmable, allowing users to tailor its protection settings to their specific applications.

– Common Applications:

– Motor Protection: Widely used in industrial sectors where motor control and protection are critical, such as manufacturing, oil and gas, water and waste management, and power generation.

– Pump and Fan Protection: Suitable for protecting pumps and fans against various fault conditions that may arise from operations.

More About the Specific Model (P1-HI-A20-E)

– P1: This designation often indicates the range of input voltages the relay can accept.

– HI: This may indicate high-current settings or the type of application it is suited for.

– A20-E: This suffix could refer to specific configurations such as firmware features or hardware configurations.

Documentation and Support

To obtain detailed specifications, installation instructions, and user manuals for the GE 469-P1-HI-A20-E, it is best to refer to the official GE Multilin documentation or contact GE’s customer support. The official GE website can provide resources such as datasheets, user guides, and technical support.
