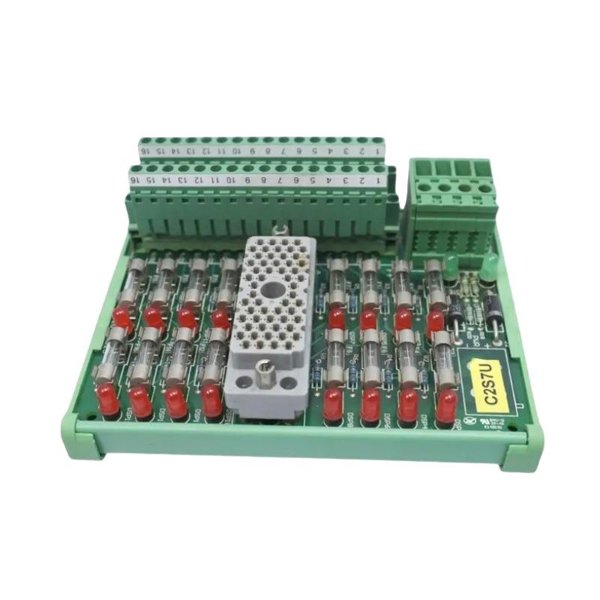

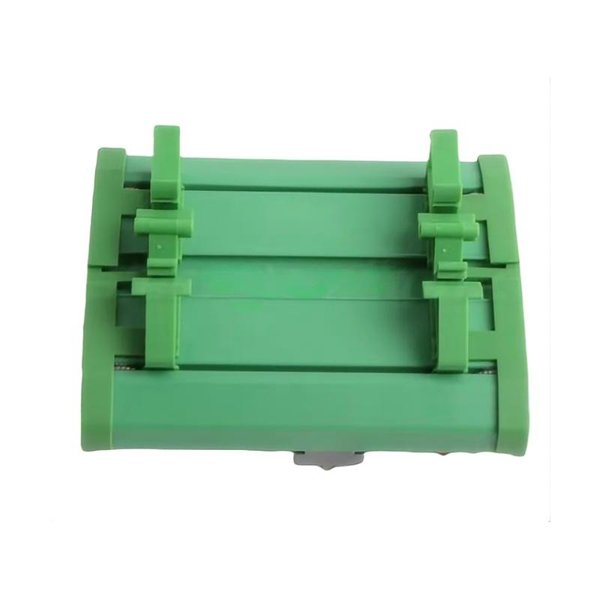

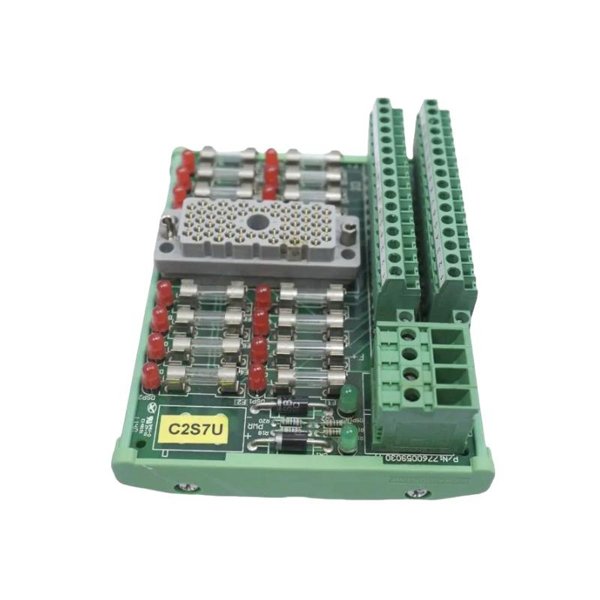

Triconex 9863-710 Analog Output Panel

The Triconex 9863-710 Analog Output Panel is a precision-engineered interface module designed to deliver accurate and stable analog output signals from Triconex control systems to field devices. It provides reliable analog communication to actuators, control valves, transmitters, and other industrial devices requiring continuous analog input.

This panel is critical in applications where precise analog control is necessary for operational safety and process efficiency. Its design includes robust circuitry, channel isolation, and noise-resistant components, ensuring high reliability even in harsh industrial environments. The 9863-710 is widely used in Safety Instrumented Systems (SIS), Emergency Shutdown Systems (ESD), and Fire & Gas Systems (F&G), as well as in general process automation.

Product Specifications

Applications

The Triconex 9863-710 Analog Output Panel is utilized in a variety of industrial and safety-critical systems:

• Process Automation – Controls valves, actuators, and variable speed drives.

• Safety Instrumented Systems (SIS) – Provides precise analog output to trigger safety actions.

• Emergency Shutdown Systems (ESD) – Delivers analog signals to execute shutdown sequences.

• Fire & Gas Systems (F&G) – Interfaces with sensors and control devices.

• Energy and Utilities – Supports analog control in power generation systems.

• Oil, Gas, and Petrochemical Plants – Ensures reliable analog control of critical equipment.

Advantages

The Triconex 9863-710 Analog Output Panel provides multiple benefits:

• High Accuracy – Maintains precise analog output with minimal drift.

• Channel Isolation – Protects against cross-talk and interference.

• Robust Construction – Durable design for harsh industrial environments.

• Flexible Configuration – Supports multiple output ranges and customizable channel allocation.

• Safety Compliance – Certified for SIL3 applications, suitable for safety-critical use.

• Ease of Maintenance – Modular design simplifies replacement and troubleshooting.

• Reliable Signal Transmission – Shielding and robust circuitry ensure noise immunity.

• Integration Ready – Compatible with Triconex controllers and I/O systems.

FAQ

1. What output signal types are supported by the 9863-710?

   It supports 4–20 mA current loops and 0–10 V voltage outputs.

2. How many analog output channels are provided?

   The module offers 16 isolated analog output channels.

3. Does the module provide channel-to-channel isolation?

   Yes, all channels are electrically isolated from each other and from the system.

4. What is the resolution of the analog outputs?

   Resolution ranges from 12-bit to 16-bit depending on configuration.

5. What is the maximum load resistance for current outputs?

   Up to 600 Ω per channel.

6. Can the module be used in redundant systems?

   Yes, it supports integration in redundant architectures for safety systems.

7. How is signal noise minimized?

   Through EMI/RFI shielding and channel isolation.

8. Is the 9863-710 suitable for SIS applications?

   Yes, it is certified SIL3 for safety-critical use.

9. What is the operating temperature range?

   It operates from -20°C to +70°C.

10. Does the panel provide diagnostic features?

    Yes, it includes fault detection and status monitoring capabilities.
