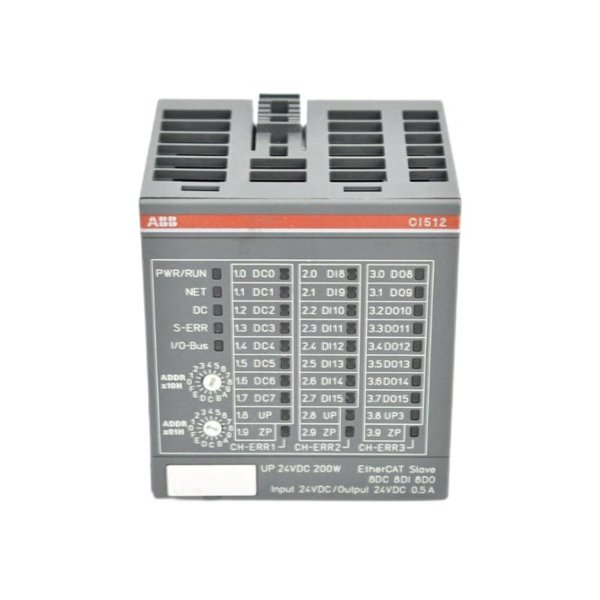

ABB CI512-ETHCAT 1SAP221000R0001 S500 Interface Module

The ABB CI512-ETHCAT 1SAP221000R0001 is a high-performance interface module in the S500 series designed for industrial automation systems that require seamless communication between field devices and control systems. This module serves as an Ethernet-based communication interface, enabling fast, reliable, and secure data exchange between various components of the automation system. It provides a bridge between the fieldbus networks and control systems, ensuring efficient and real-time communication in industrial environments.

Designed to work with ABB’s automation platforms, the CI512-ETHCAT module supports EtherCAT communication protocol, one of the most widely used protocols in real-time applications. With this module, users can integrate a wide variety of I/O devices into their control systems and achieve precise, high-speed operation for automation processes across industries such as manufacturing, robotics, and process control.

Product Specifications

Product Applications

The ABB CI512-ETHCAT 1SAP221000R0001 interface module is specifically designed to be used in a wide range of industrial applications where fast and reliable data transfer is essential. Its EtherCAT protocol support makes it ideal for:

• Industrial Automation Systems: Integration of field devices like sensors, actuators, and drives into a real-time control system.

• Machine Control: Seamless communication between machines and central controllers in manufacturing and packaging lines.

• Robotics: Facilitates high-speed communication between robotic arms, controllers, and sensors for precise control and synchronization.

• Process Control: Ensures efficient and reliable data exchange between devices in continuous or batch process control.

• Energy Systems: Used in smart grid systems and other energy automation applications where high-speed communication is essential.

• Building Automation: Integration of HVAC, lighting, and other systems into an automated building management system.

Product Advantages

• Fast Communication Speed: The EtherCAT protocol offers extremely fast communication speeds with low latency, making it perfect for real-time industrial applications where speed is critical.

• Compact and Lightweight Design: The module’s compact dimensions (62 x 76 x 67.5 mm) and low weight (0.138 kg) ensure easy installation in tight spaces without compromising on functionality.

• Efficient Power Usage: With a power consumption of just 2.5 W, the CI512-ETHCAT module is energy-efficient, reducing overall operational costs.

• High Compatibility: The EtherCAT protocol is supported by a wide range of field devices, making this module highly versatile and compatible with various industrial automation systems.

• Durability and Reliability: With an operating temperature range of -20°C to 60°C and IP20 protection, the module is robust enough to function reliably in industrial environments with varying conditions.

• Status Indicators: The built-in LED indicators provide real-time status updates and diagnostics, ensuring easy troubleshooting and system monitoring.

• Scalability: The EtherCAT communication allows for easy scaling of the system, making it suitable for both small and large automation setups.

FAQ

1. What communication protocol does the ABB CI512-ETHCAT module use?

   • The module uses the EtherCAT communication protocol.

2. What are the dimensions of the ABB CI512-ETHCAT module?

   • The module’s dimensions are 62 x 76 x 67.5 mm.

3. What is the weight of the CI512-ETHCAT module?

   • The module weighs 0.138 kg.

4. What is the power consumption of the ABB CI512-ETHCAT?

   • The module consumes 2.5 W of power.

5. What is the operating temperature range for this module?

   • The operating temperature range is -20°C to 60°C.

6. What is the response time of the ABB CI512-ETHCAT module?

   • The module has a response time of ≤ 1 ms.

7. What protection class does the ABB CI512-ETHCAT module have?

   • It has an IP20 protection rating.

8. What certification standards does the ABB CI512-ETHCAT module comply with?

   • The module complies with CE, UL, and RoHS certification standards.

9. Can the ABB CI512-ETHCAT module be used in outdoor environments?

   • No, it has an IP20 protection rating, which is suitable for indoor use.

10. How many EtherCAT ports are available on this module?

    • The module has 1 EtherCAT port for communication.
