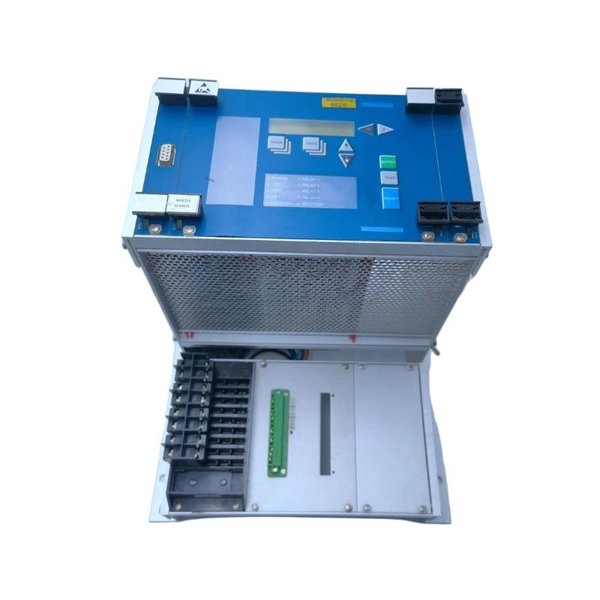

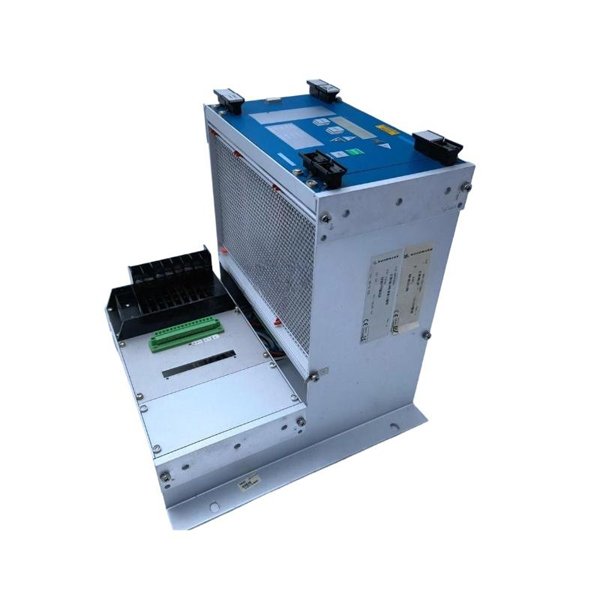

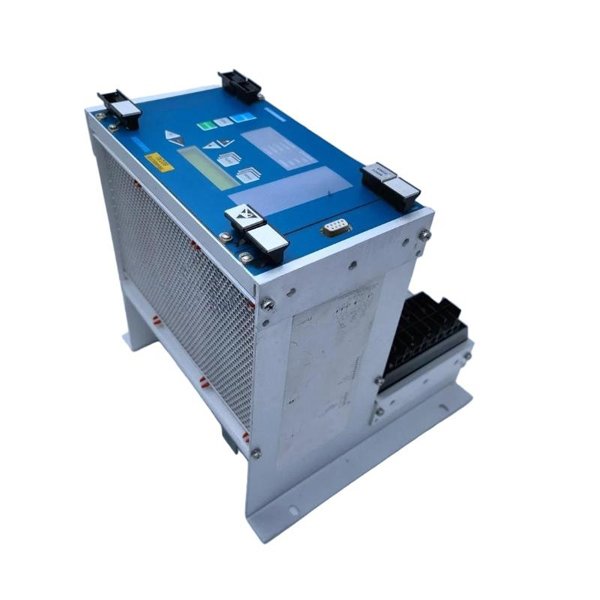

Woodward MRD1G5MA Digital Speed Control Module

The Woodward MRD1G5MA Digital Speed Control Module is an advanced electronic device designed for the regulation and control of the speed in industrial machinery. It is commonly used in power generation, manufacturing, and other industrial applications where precise speed control is essential for optimal system performance. The module offers robust features, ensuring high precision and reliable operation in dynamic environments.

Technical Specifications

Product Applications

• Industrial Engines: Precise control over the speed of diesel or gas engines used in manufacturing or energy generation.

• Turbines: Optimal control of turbine speed, which is crucial in power generation and processing industries.

• Marine Vessels: Control of engine speed for smooth operation of marine vessels.

• Generator Sets: Maintaining the speed stability of generators to ensure consistent power output.

• Pump and Fan Systems: Ensures efficient speed control in pump and fan systems across various industrial sectors.

• Compressors: Regulates the speed of compressors, reducing energy consumption while maintaining optimal performance.

Advantages of Woodward MRD1G5MA

• High Precision Speed Control: Provides accurate speed regulation, ensuring efficient operation of machinery.

• Wide Compatibility: Works well with various engines, turbines, and generators.

• Robust Communication Protocols: RS-485 and CAN Bus support for easy integration with other industrial systems.

• User-Friendly Interface: Simple adjustments for speed control, which minimizes operator errors.

• Durable and Reliable: Designed for operation in harsh environments, ensuring long-term reliability.

• Compact Design: Space-saving design that is easy to install in existing systems without the need for extensive modifications.

FAQ

Q1: How does the MRD1G5MA control the speed of engines?

A1: The MRD1G5MA uses Pulse Width Modulation (PWM) to adjust the speed of engines by varying the power sent to the engine’s actuator, which adjusts the fuel or power output, thus controlling the engine’s speed.

Q2: Can the MRD1G5MA be used with both gas and diesel engines?

A2: Yes, the MRD1G5MA is compatible with both gas and diesel engines, making it versatile for various industrial applications.

Q3: What is the primary control input for the MRD1G5MA?

A3: The primary control input for the MRD1G5MA is analog (0-10 VDC), allowing the user to control the speed by adjusting the input voltage.

Q4: What are the communication options available on the MRD1G5MA?

A4: The MRD1G5MA supports RS-485 and CAN Bus communication protocols, which enable integration with other industrial control systems.

Q5: What happens if the MRD1G5MA is exposed to temperatures beyond its operating range?

A5: Exposure to temperatures beyond the specified operating range of -40°C to 70°C can cause malfunction or permanent damage to the unit. It is critical to maintain the recommended temperature for reliable operation.

Q6: Can the MRD1G5MA be integrated with existing control systems?

A6: Yes, the MRD1G5MA is designed for easy integration into existing control systems, ensuring smooth communication and control functionality.

Q7: What is the output current of the MRD1G5MA?

A7: The MRD1G5MA can provide an output current of up to 1 A, which is suitable for controlling a wide range of industrial machinery.

Q8: Does the MRD1G5MA support both DC and AC motors?

A8: The MRD1G5MA is primarily designed for DC motor control, but it can be used in AC motor systems that have compatible control features.

Q9: What is the typical application of PWM in the MRD1G5MA?

A9: PWM (Pulse Width Modulation) is used in the MRD1G5MA to regulate the motor speed by controlling the timing of power pulses to the engine, providing precise control over its speed.

Q10: Is the MRD1G5MA capable of remote control?

A10: Yes, with the appropriate communication setup, the MRD1G5MA can be controlled remotely via its RS-485 or CAN Bus interfaces.
