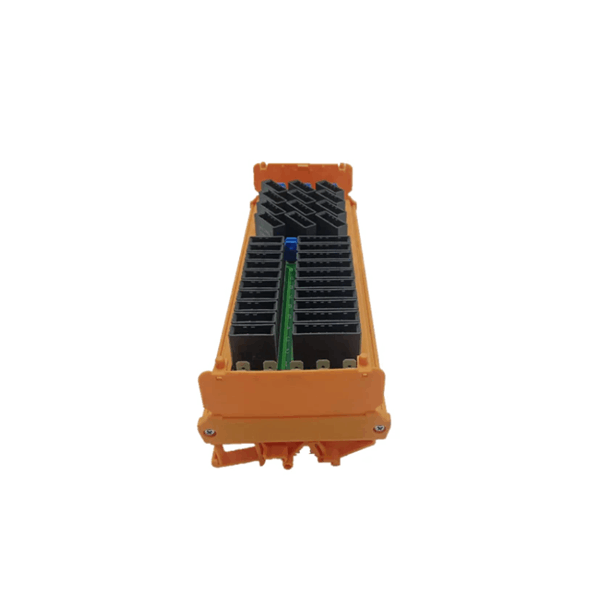

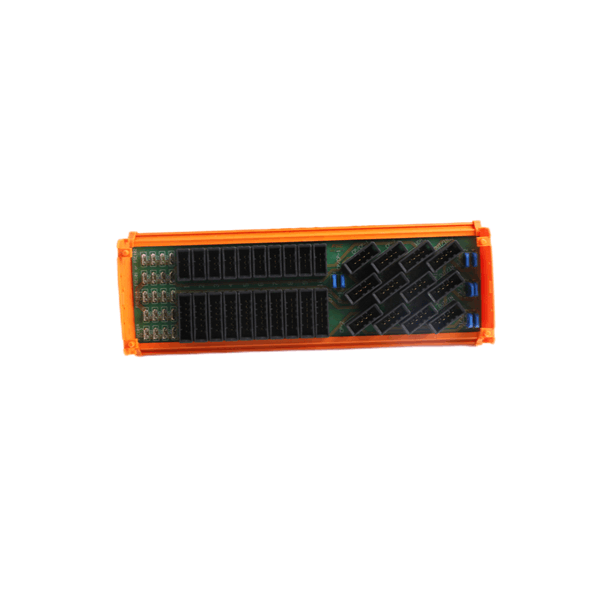

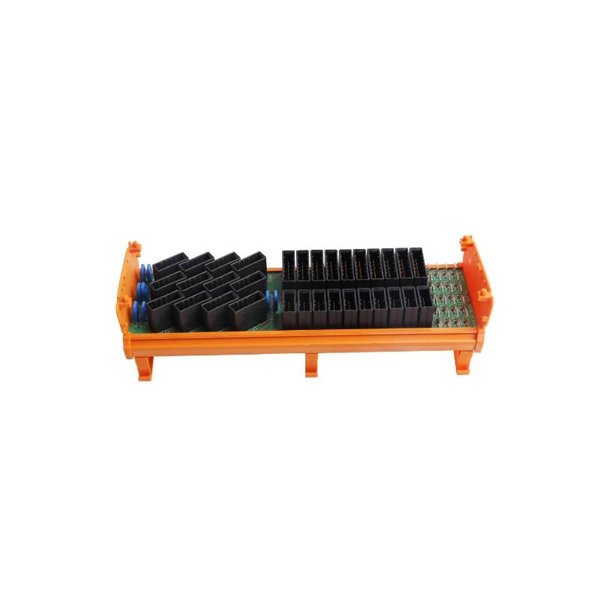

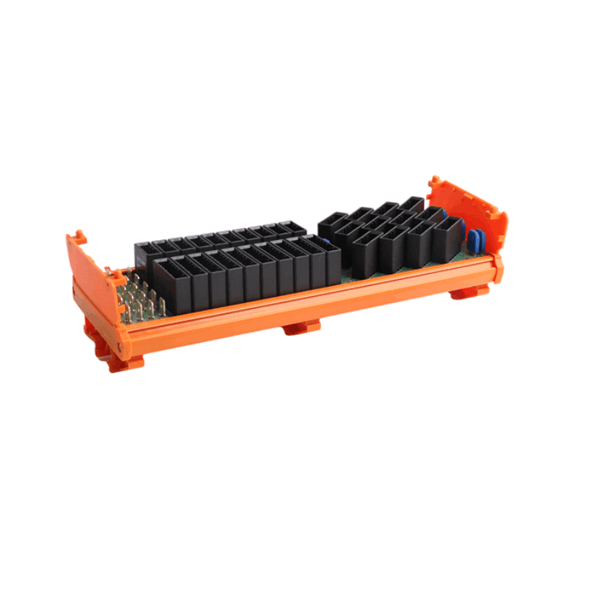

Honeywell 10313/1/1 FSC Termination Module

The Honeywell 10313/1/1 FSC Termination Module is part of Honeywell’s advanced Fieldbus and Control System (FSC) offerings. It plays a crucial role in the integration of field devices into a distributed control system (DCS), such as the Honeywell Experion system. This termination module is designed to provide reliable connection and termination of field wiring to the system’s communication bus.

The module is specifically designed for use with devices that communicate via the Foundation Fieldbus protocol, which is widely used in industries like oil & gas, chemicals, and power generation. By providing a stable and secure interface between field instruments and control systems, the 10313/1/1 FSC Termination Module ensures smooth signal transmission and minimizes communication issues within the system.

This termination module is essential for maintaining the integrity of fieldbus networks by offering high-quality electrical isolation and shielding, preventing electrical noise and interference, which could disrupt signal quality or equipment performance. It also simplifies the process of wiring, reducing installation time and potential errors.

Technical Specifications

Applications

The Honeywell 10313/1/1 FSC Termination Module is ideal for a wide range of industrial applications, particularly those that rely on the Foundation Fieldbus protocol for communication. Its versatile features make it suitable for various fields including:

• Oil & Gas Industry

  Used in upstream and downstream applications where reliable, high-performance communication with field devices like pressure, temperature, and flow sensors is essential.

• Chemical and Petrochemical Plants

  Ensures smooth integration of process control systems with devices such as valve positioners, analyzers, and motor controllers.

• Power Generation

  Enables accurate monitoring and control of turbine systems, boilers, and auxiliary equipment with minimal downtime and high operational reliability.

• Water and Wastewater Treatment

  Used in SCADA systems for managing water treatment processes, including pumps, filtration systems, and chemical dosing equipment.

• Pharmaceutical and Food & Beverage

  Connects a wide range of measurement and control devices to a central DCS, ensuring consistency and quality in production processes.

Key Advantages

1. High Isolation Performance

   The module provides 1500 VAC isolation between field devices and the control system, protecting both systems from electrical surges and faults.

2. Compact and Robust Design

   Designed for industrial environments, it features a compact, durable form factor that saves space and withstands harsh conditions such as high temperatures and humidity.

3. Simplifies Wiring and Installation

   The module reduces wiring complexity by integrating multiple terminations in a single device, making installation and maintenance more efficient.

4. Fieldbus Compatibility

   Fully compliant with the Foundation Fieldbus protocol, it allows for seamless integration with other Fieldbus devices and control systems, enhancing interoperability.

5. Reliability in Harsh Environments

   It is designed to operate in extreme temperatures ranging from -40°C to +70°C, making it suitable for diverse industrial settings, including remote and offshore locations.

6. Flexible Mounting Options

   Can be mounted on a DIN rail or directly onto panels, offering flexibility in installation depending on the system design and space availability.

7. Cost-Efficient

   Reduces the overall cost of field wiring infrastructure by offering efficient integration and reducing the need for additional components.

Frequently Asked Questions (FAQ)

1. What is the main function of the 10313/1/1 FSC Termination Module?

   The module serves to connect and terminate field wiring to a Foundation Fieldbus communication network, enabling the integration of field devices into a distributed control system.

2. Which devices are compatible with this termination module?

   The module is compatible with any Foundation Fieldbus-compliant devices such as sensors, actuators, transmitters, and controllers.

3. Can this module be used with other communication protocols?

   No, the 10313/1/1 module is specifically designed for Foundation Fieldbus communication. For other protocols, different termination modules are required.

4. What types of outputs can I expect from this module?

   The module primarily handles digital fieldbus signals, but it can also pass through 4-20 mA signals for certain applications.

5. Is the module suitable for hazardous environments?

   The module is rated for industrial environments and may be used in hazardous locations if it is installed in an appropriate enclosure that complies with ATEX or other relevant certifications.

6. How does this module handle electrical surges or faults?

   The module provides electrical isolation of up to 1500 VAC to prevent damage from electrical surges or faults in the field wiring.

7. What is the operating temperature range of the module?

   The operating temperature range is from -40°C to +70°C, making it suitable for a wide range of industrial settings.

8. Can I use this module for long-distance wiring?

   Yes, this module is designed to handle long-distance wiring connections as long as the total cable length is within the specifications of the Foundation Fieldbus standard.

9. How does this module help with reducing installation time?

   By consolidating multiple field terminations into a single module, it reduces the need for extensive wiring, simplifying the installation process.

10. What are the mounting options for this module?

    The module can be mounted on a DIN rail or directly onto a panel, providing flexibility depending on the installation needs.
