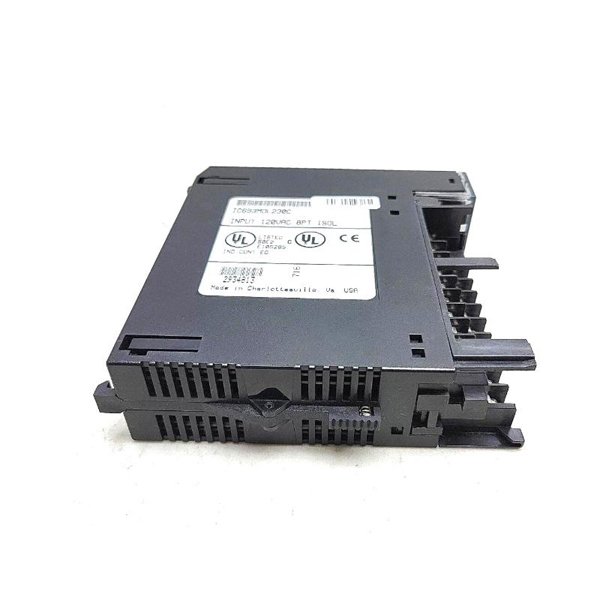

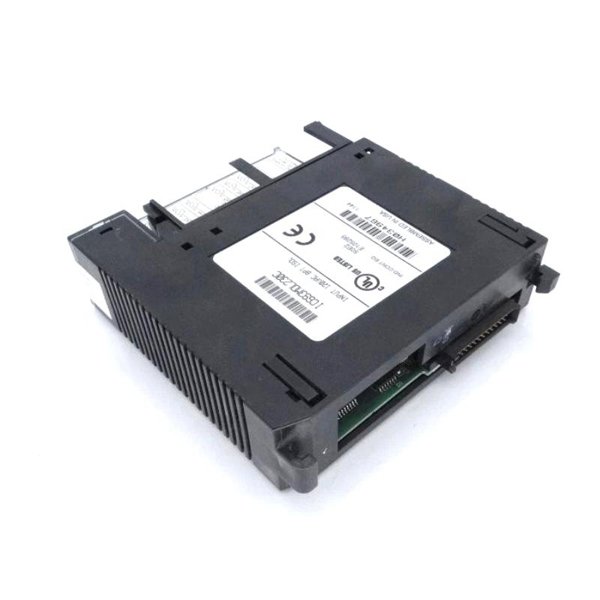

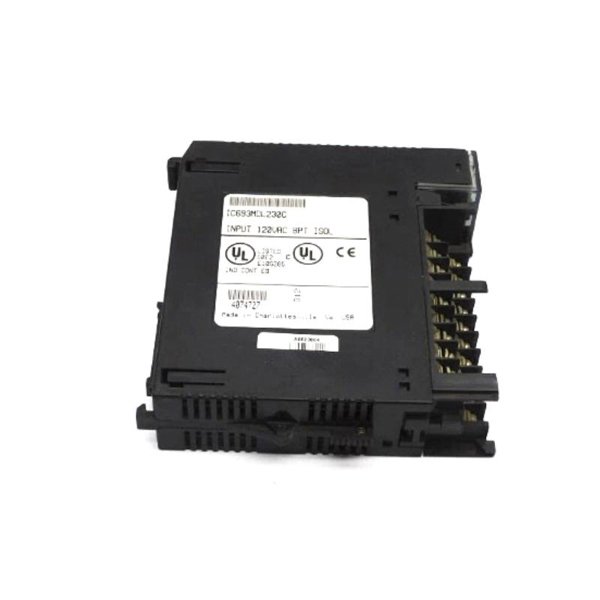

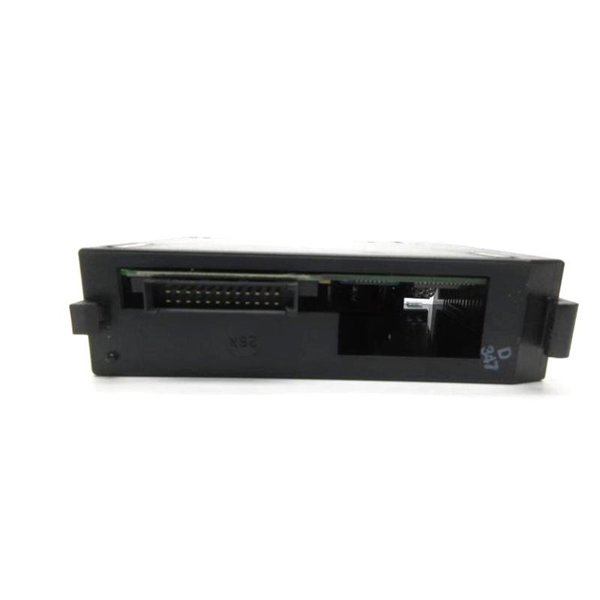

General Electric IC693MDL230 PACSystems RX3i System AC Isolated Input Module
Manufacturer:GE
Product Number:IC693MDL230
Product Type:AC Isolated Input Module
Origin:USA
Dimensions:142 x 30 x 130 mm
Weight:0.18kg
Views:51
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IC693MDL230 is a 120 VAC Isolated Input Module designed for the PACSystems RX3i and Series 90-30 PLCs. It provides 8 discrete input points, each isolated to allow flexible connection of various AC input devices. The module is ideal for industrial applications requiring reliable detection of 120 VAC input signals.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE (General Electric) |
| Series | PACSystems RX3i / Series 90-30 |
| Model | IC693MDL230 |
| Type | Discrete Input Module |
| Input Voltage | 120 VAC nominal |
| Input Voltage Range | 0–132 VAC |
| Input Points | 8 isolated inputs |
| Frequency | 47–63 Hz |
| Input Current | 6 mA at 120 VAC |
| Isolation | 1500V between each input and ground |
| LED Indicators | 1 per input (ON when energized) |
| Response Time |
OFF to ON: 45 ms
ON to OFF: 45 ms |
| Mounting Type | DIN Rail / Backplane Module |
| Dimensions (W x H x D) | 30 x 130 x 142 mm |
| Weight | 0.18 kg |
Product Applications
-
Factory automation and control systems
-
Machinery status monitoring
-
Building and energy management systems
-
Electrical panel signal detection
-
Infrastructure and utilities input control
Product Advantages
-
High isolation per input for increased safety
-
Clear input status via onboard LEDs
-
Compact design suitable for space-constrained panels
-
Standard 120 VAC compatibility
-
Reliable operation in industrial environments
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the IC693MDL230 module?
A1: It detects the presence or absence of 120 VAC input signals on 8 isolated channels.
Q2: Can this module be used with Series 90-30 and RX3i systems?
A2: Yes, it is compatible with both Series 90-30 and RX3i PLC systems.
Q3: Are the input channels individually isolated?
A3: Yes, each of the 8 input points is isolated from the others.
Q4: What voltage range does the module support?
A4: It accepts 0–132 VAC input voltage, nominally 120 VAC.
Q5: How are input statuses displayed?
A5: Each channel has a dedicated LED indicator that lights when the input is energized.
Q6: What is the input current at 120 VAC?
A6: Approximately 6 mA per input point.
Q7: Can it be mounted on a standard DIN rail?
A7: Yes, it supports DIN rail and backplane mounting.
Q8: Is the module suitable for high-speed input applications?
A8: No, it has a response time of 45 ms and is intended for standard input sensing.
Q9: What level of electrical isolation is provided?
A9: 1500V isolation between input channels and ground.
Q10: Does it require external power for operation?
A10: No separate power is required; it draws power from the backplane.
