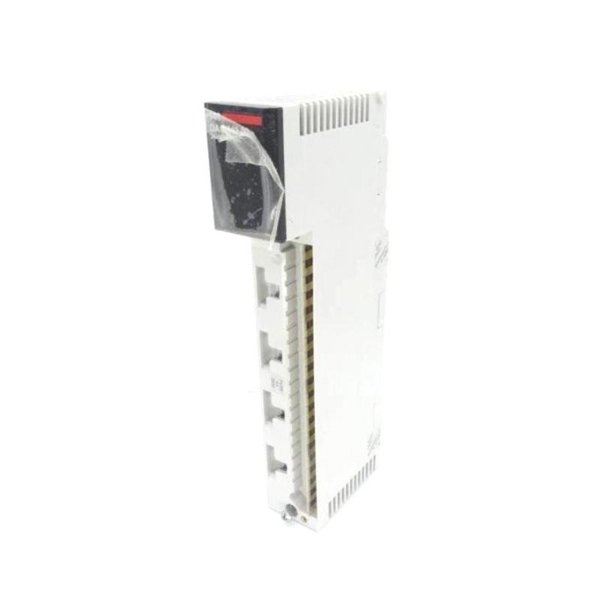

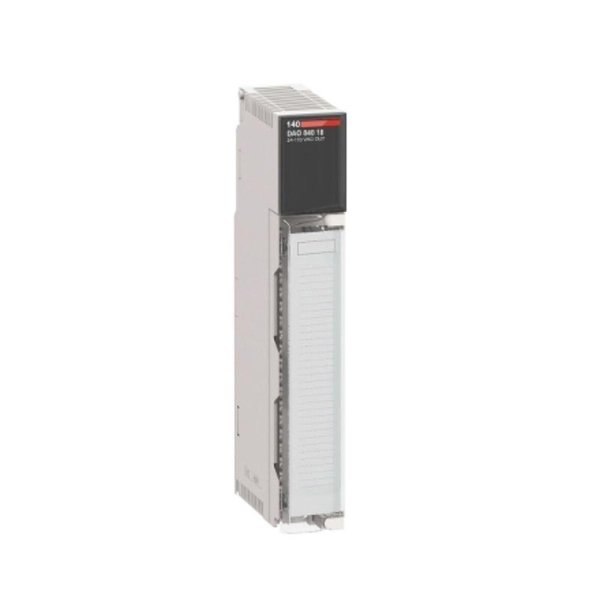

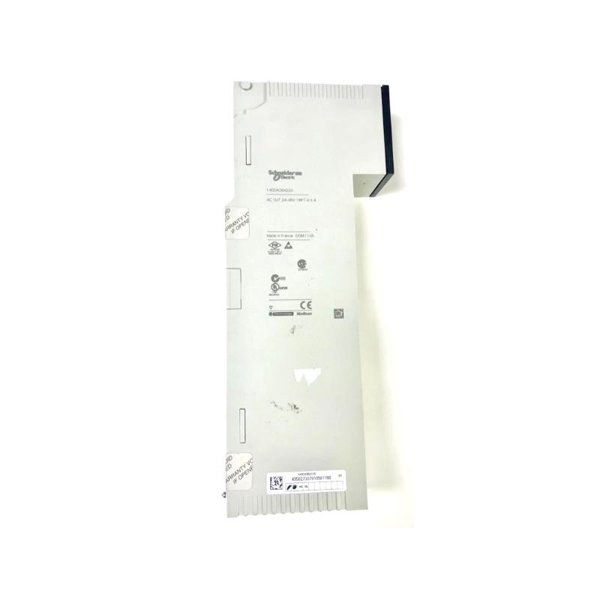

Schneider 140DAO84220C AC Discrete Output Module
Manufacturer:Schneider
Product Number:140DAO84220C
Product Type:AC Discrete Output Module
Origin:France
Dimensions:103.9 × 40.3 × 250 mm
Weight:0.45 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 140DAO84220C is a high-performance AC discrete output module from the Modicon Quantum series. It provides 32 channels of 120 VAC outputs, designed for industrial automation applications requiring robust and reliable switching capability.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 140DAO84220C |
| Product Type | AC Discrete Output Module |
| Number of Outputs | 32 |
| Output Type | Discrete (Digital) |
| Voltage Range | 120 VAC |
| Output Frequency | 47–63 Hz |
| Output Current per Channel | 0.5 A |
| Isolation | 1500 V RMS |
| Response Time | 0.5 ms ON / 1 ms OFF |
| Field Connection | Removable Terminal Block |
| Mounting Type | Rack-mounted (Quantum backplane) |
| Dimensions (W x H x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.45 kg |
Applications
-
Factory automation systems
-
Machine control panels
-
Process industry I/O systems
-
Motor and pump control systems
Key Advantages
High-density Output: 32 channels in a single module for space-efficient installations
Fast Switching: Rapid response for time-sensitive operations
Built-in Isolation: Ensures safety and system reliability
Plug-and-play Design: Easy integration with Modicon Quantum platforms
Rugged Build: Designed for harsh industrial environments
Frequently Asked Questions (FAQ)
Q1: What is the function of the 140DAO84220C module?
A1: It provides 32 discrete AC outputs for controlling devices like contactors and relays.
Q2: What type of load can it switch?
A2: It switches resistive and inductive loads operating at 120 VAC.
Q3: Can it be used in safety-critical systems?
A3: It is not a safety-rated module but is reliable for general industrial use.
Q4: What is the module’s output current capacity?
A4: Each output channel supports up to 0.5 A.
Q5: Is the module hot-swappable?
A5: No, it should be powered down before replacement or installation.
Q6: What is the recommended operating temperature?
A6: Typically 0°C to 60°C, per Quantum system specifications.
Q7: Does it support diagnostics?
A7: Yes, it provides LED indicators for each output channel.
Q8: What is the response time?
A8: 0.5 ms ON and 1 ms OFF for fast control.
Q9: How is the wiring done?
A9: Via a removable terminal block for easy maintenance.
Q10: Which software is compatible for configuration?
A10: Schneider’s Unity Pro or EcoStruxure Control Expert.
