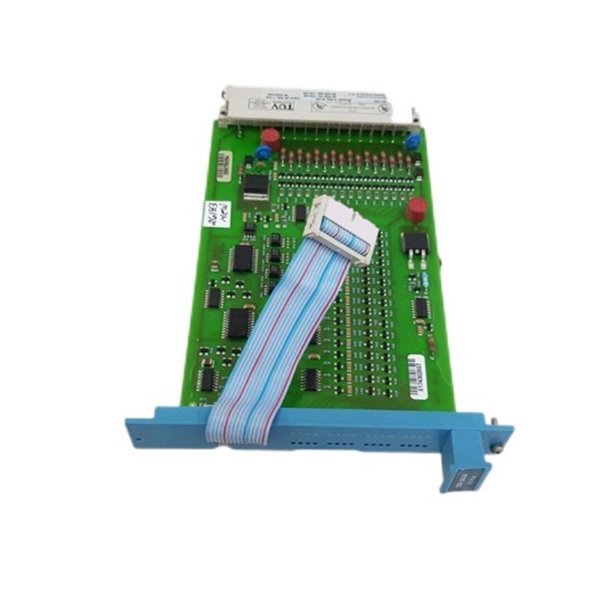

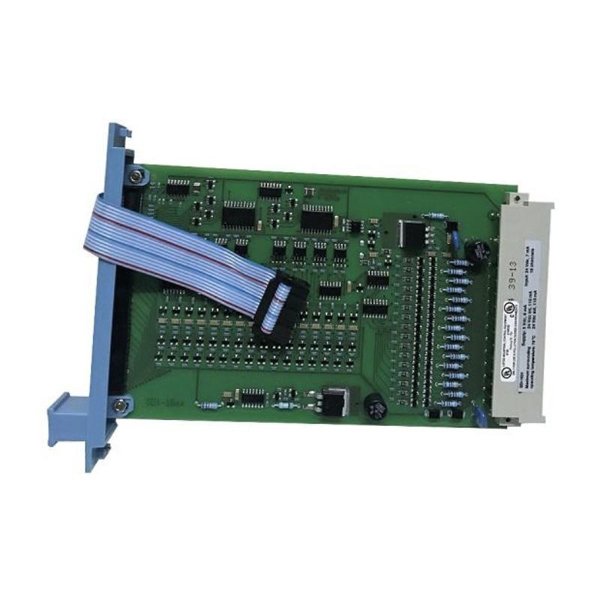

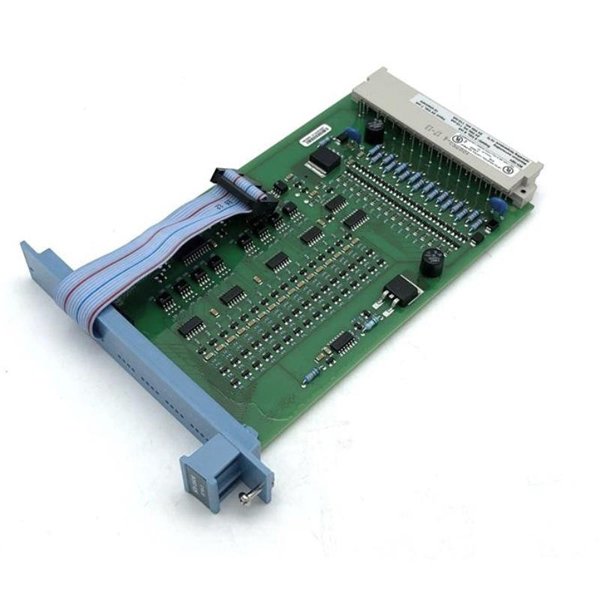

Honeywell FC-SDI-1624 Safety Digital Input Modules

The Honeywell FC-SDI-1624 is a high-performance signal isolator designed for industrial applications requiring reliable and accurate signal transmission. It is a part of Honeywell’s extensive series of signal conditioning equipment, which ensures seamless integration with a wide variety of control systems. This device is engineered to isolate, protect, and condition signals, thereby preventing issues caused by electrical interference or ground loops. With robust features and easy integration, it is an ideal solution for industrial automation, monitoring systems, and process control.

Product Parameters

Product Applications

1. Industrial Automation Systems: The FC-SDI-1624 is commonly used in automation systems to isolate signals from controllers, preventing noise or ground loops from affecting data accuracy.

2. Monitoring and Control Systems: In process monitoring and control systems, the device ensures reliable signal transmission from sensors to controllers, minimizing errors and improving system reliability.

3. Energy and Utilities: Often used in energy monitoring systems, it helps isolate and condition input signals for accurate readings in power plants or substations.

4. Building Management Systems (BMS): The device is essential in building automation, where it facilitates signal conditioning between various sensors and monitoring systems.

Product Advantages

• High Isolation Capability: With up to 1500 VDC isolation, it effectively protects against electrical faults, ensuring reliable system operation.

• Wide Operating Range: Capable of operating in extreme temperatures ranging from -40°C to 85°C, the FC-SDI-1624 is suitable for use in harsh industrial environments.

• Easy Integration: The device supports 4-20 mA and voltage input/output, ensuring compatibility with a wide range of control systems and sensors.

• Durable Design: Built with an ABS plastic housing and DIN rail mounting, the unit is designed for durability and ease of installation in industrial settings.

• Low Power Consumption: Operating with a 24 VDC power supply, it offers efficient power usage while maintaining high performance.

FAQ

1. What input types are supported by the Honeywell FC-SDI-1624?

   • The FC-SDI-1624 supports 4-20 mA and voltage inputs.

2. What is the isolation voltage of this product?

   • The device provides 1500 VDC isolation.

3. What is the operating temperature range?

   • The product operates in temperatures ranging from -40°C to 85°C.

4. Can this device be mounted on a DIN rail?

   • Yes, the FC-SDI-1624 can be easily mounted on a DIN rail.

5. What is the power supply requirement for this device?

   • The device requires a 24 VDC power supply.

6. What is the weight of the FC-SDI-1624?

   • The device weighs 200 grams.

7. Is the device suitable for use in energy monitoring systems?

   • Yes, it is ideal for energy and utility monitoring applications.

8. Can the FC-SDI-1624 be used in extreme temperature environments?

   • Yes, it is designed to operate in harsh environments with a temperature range from -40°C to 85°C.

9. What kind of protection does the device offer?

   • It provides protection against electrical faults through its high isolation capability.

10. Can this device be used in building management systems?

    • Yes, it is widely used in building management systems to condition signals between sensors and controllers.
