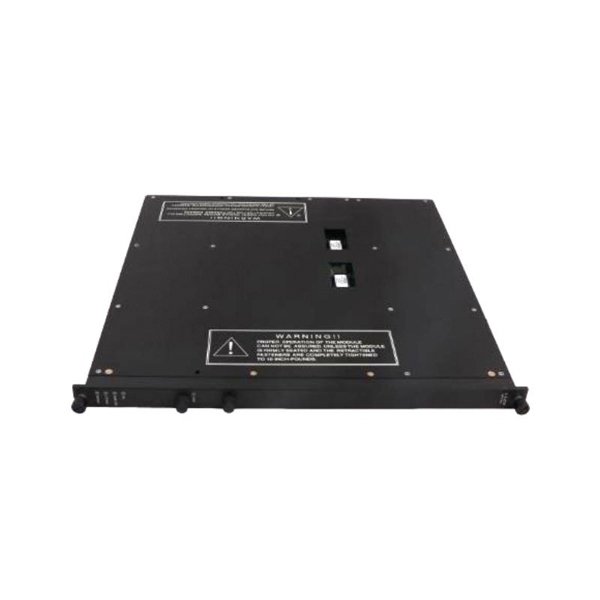

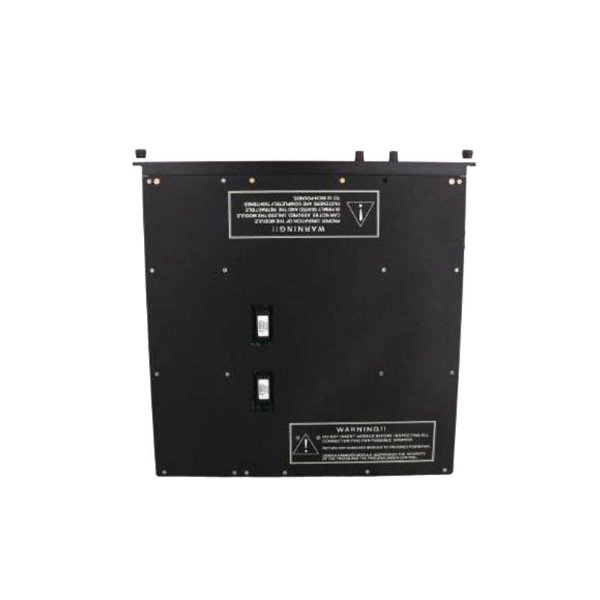

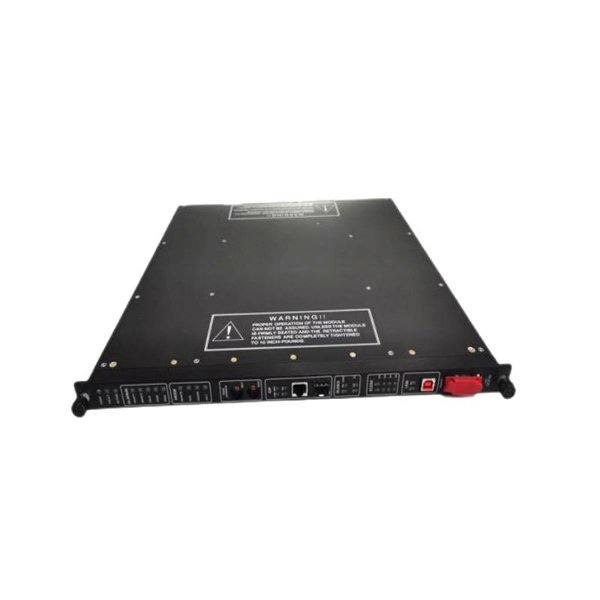

Triconex 4210 Remote Extender Module

The Triconex 4210 Remote Extender Module is a critical component designed to extend the reach and functionality of Triconex safety systems. It enables remote connection and expansion of I/O modules across different locations while maintaining real-time data integrity, high-speed communication, and fault tolerance.

Engineered for high-reliability applications, the 4210 module ensures that distributed control systems (DCS) and programmable logic controllers (PLCs) maintain secure and seamless communication across industrial environments. It is widely used in oil & gas, chemical processing, power plants, and large-scale industrial automation systems.

This module is built for redundancy and high availability, offering robust protection against signal degradation, electromagnetic interference (EMI), and power fluctuations. It is a plug-and-play device that integrates easily into existing Triconex systems, making it a cost-effective solution for remote system expansions.

Product Specifications

Product Applications

1. Oil & Gas Industry – Used for remote wellhead monitoring, pipeline automation, and refinery control systems.

2. Power Generation – Ensures secure communication between turbines, substations, and plant-wide SCADA systems.

3. Chemical Processing – Extends control and monitoring functions in distributed chemical manufacturing plants.

4. Water Treatment Facilities – Connects remote pumping stations and treatment plants with centralized control.

5. Pharmaceutical Industry – Maintains high-speed data transfer for process validation and quality control.

6. Railway & Transportation – Supports safe and reliable remote automation of railway signaling systems.

7. Manufacturing & Industrial Automation – Extends automated material handling and assembly line operations.

Product Advantages

1. Long-Distance Communication – Supports up to 10 km extension over high-speed fiber optics.

2. Redundancy & Fault Tolerance – Ensures uninterrupted communication with dual-channel redundancy.

3. High-Speed Data Transmission – Operates at 100 Mbps, minimizing latency and data loss.

4. Seamless System Expansion – Allows scalable expansion of Triconex safety and control systems.

5. Strong EMI Protection – Shielded against electromagnetic interference for stable performance.

6. Plug-and-Play Installation – Simplifies system integration with auto-detection and configuration.

7. Compact & Durable Design – Designed for harsh industrial conditions with rugged enclosure.

8. Certified for Critical Safety – Meets SIL 3 safety requirements, ensuring reliable performance.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Triconex 4210 Remote Extender Module?

   • It extends the communication range of Triconex safety and control systems using high-speed fiber optics.

2. How far can the Triconex 4210 module extend communication?

   • It supports distances up to 10 km, making it ideal for large industrial sites.

3. Is the 4210 module compatible with all Triconex systems?

   • Yes, it is fully compatible with Triconex safety controllers and distributed control systems.

4. Does the module support redundancy?

   • Yes, it features dual-channel redundancy for fault-tolerant communication.

5. What industries commonly use the Triconex 4210?

   • It is widely used in oil & gas, power generation, chemical processing, and water treatment.

6. Is the module resistant to electromagnetic interference (EMI)?

   • Yes, it is IEC 61000 compliant, offering high-level EMI protection.

7. What power supply is required for the Triconex 4210?

   • It operates on 24V DC power supply.

8. Can the module be installed in hazardous environments?

   • Yes, it is ATEX certified and safe for use in explosive atmospheres .

9. What data rates does the module support?

   • It supports 100 Mbps data transmission , ensuring fast and reliable communication .

10. What is the installation process for the 4210 module?

• It is a plug-and-play device that requires minimal configuration and setup .
