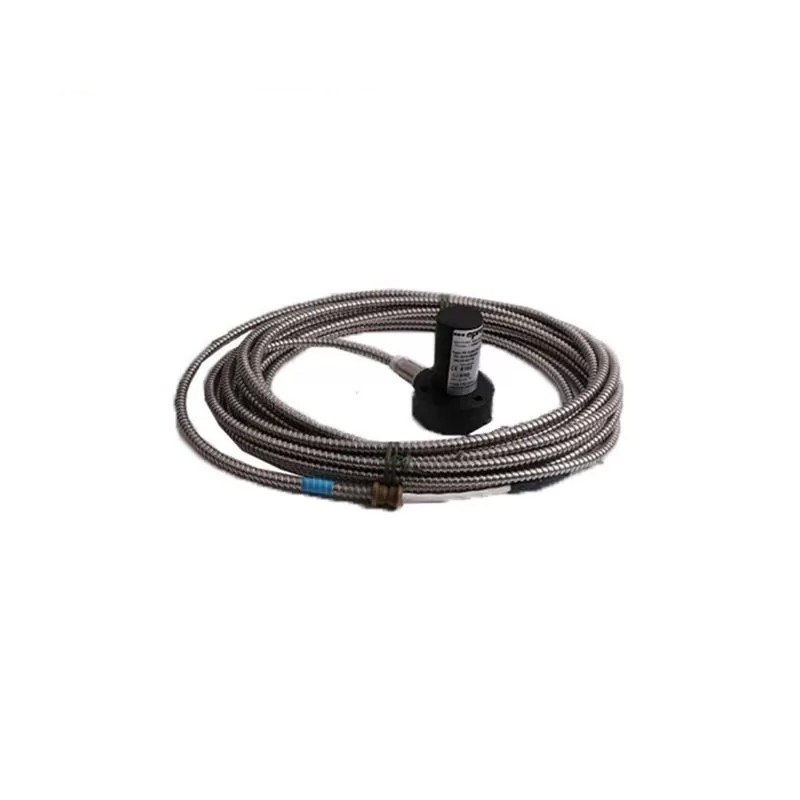

Epro PR9268/617-100-N Electro Dynamic Velocity Sensor
Product Number: PR9268/617-100-N
Category: ElectroDynamic Velocity Sensor / Vibration Transducer
Sensor Type: Moving-coil velocity transducer for absolute vibration measurement
Sensitivity: 17.5 mV/mm/s
Frequency Range: 14 to 1000 Hz
Natural Frequency: 14 Hz ± 7% @ 20°C
Transverse Sensitivity: < 0.1 @ 80 Hz
Vibration Amplitude: 500 μm peak-peak
Amplitude Linearity: < 2%
Maximum Acceleration: 10g continuous, 20g intermittent
Orientation Options: Omnidirectional, vertical, horizontal models available
Resistance: 1723Ω ± 2%
Inductance: ≤ 90 mH
Active Capacity: < 1.2 nF
Application: Absolute vibration measurement of critical turbomachinery: steam, gas, hydro turbines, compressors, pumps, fans for case vibration monitoring
System Compatibility: MMS 3000/6000 monitoring systems
Product Description
The Epro PR9268/617-100-N is a compact and robust electrodynamic velocity sensor designed for industrial vibration measurement applications. This sensor offers high accuracy and reliability for monitoring the health of machinery in harsh environments.
Type
Electro dynamic velocity sensor
Key Features
- Compact design: Enables space-saving installation in tight locations.
- Electrodynamic technology: Provides non-contact measurement of vibration velocity, minimizing wear and tear.
- Wide frequency range (potential): Capable of capturing vibrations across a broad spectrum of frequencies for comprehensive machine health monitoring (refer to datasheet for confirmed range).
- Rugged construction: Built to withstand demanding industrial environments.
Technical Specifications
- Parameter Value
- Model Number PR9268
- Variant 617-100-N
- Measurement Type Vibration velocity
- Output Type Analog (typically mV/mil/sec)
