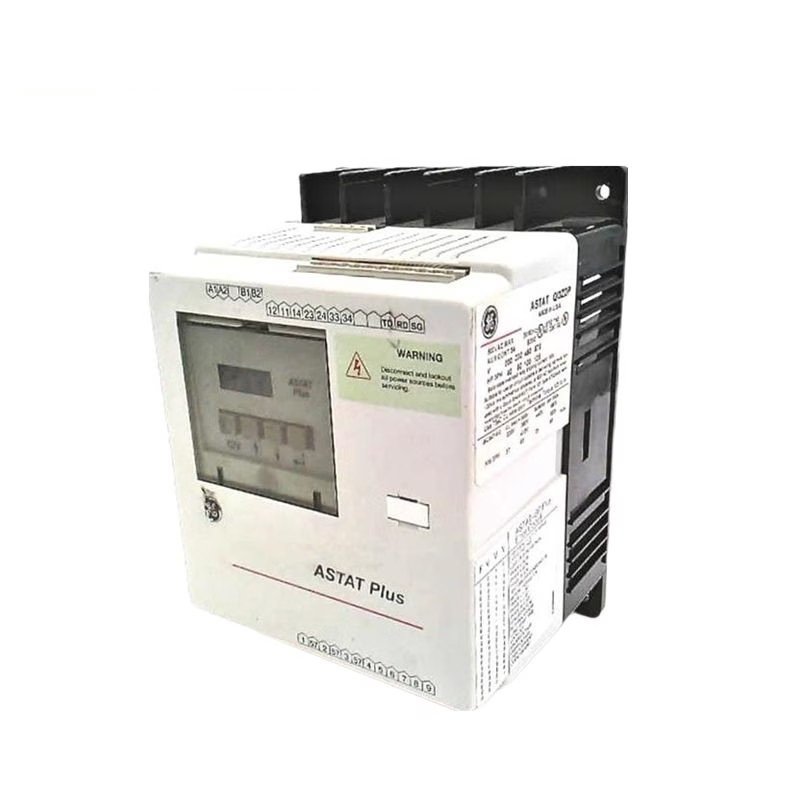

GE Fanuc QI3ZDP Solid State Overload Relay

The GE Fanuc QI3ZDP is a solid-state overload relay designed to protect three-phase motors from overcurrent conditions. It monitors motor current to detect overloads, phase loss, and phase imbalance. The relay offers reliable protection without the need for mechanical components, ensuring accuracy and durability in industrial environments. This relay is especially useful in systems requiring precise and adjustable overload protection for motor control.

Technical Specifications

• Solid-State Design: Ensures no mechanical components, offering reliable and accurate protection.
• Three-Phase Protection: Monitors all three phases for overloads, phase loss, and imbalance.
• Adjustable Trip Current: Allows the setting of trip points based on the motor’s full-load current.
• Trip Class: Available in Class 10, Class 20, or other configurations based on trip time requirements.
• Auxiliary Contacts: Provides remote overload trip indication and control interlocking.
• Voltage Rating: 600VAC.
• Frequency: 50/60Hz.
• Part Number: QI3ZDP
• Category: Contactors & Starters
• Subcategory: Solid State Overload Relay
• Dimensions: 5.3 in x 8.0 in x 5.0 in (13.5 cm x 20.3 cm x 12.7 cm)
• Weight: 3 lbs 10.9 oz (1.7 kg)
