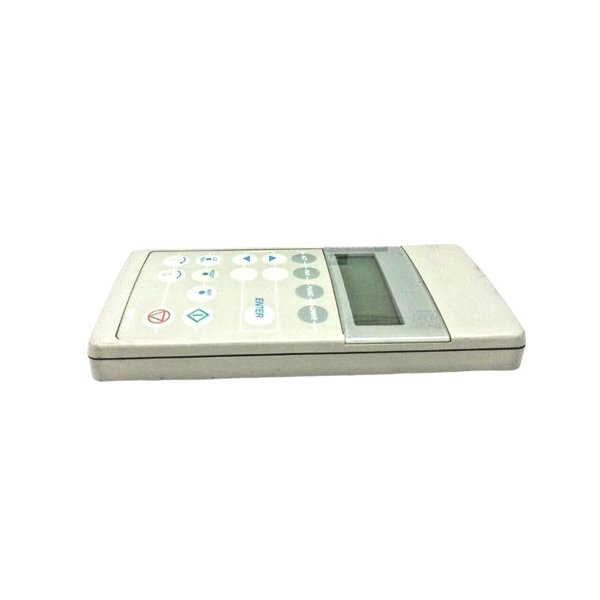

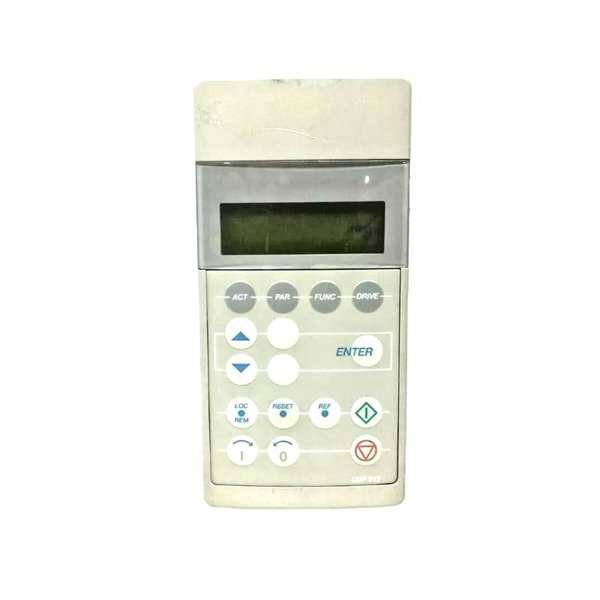

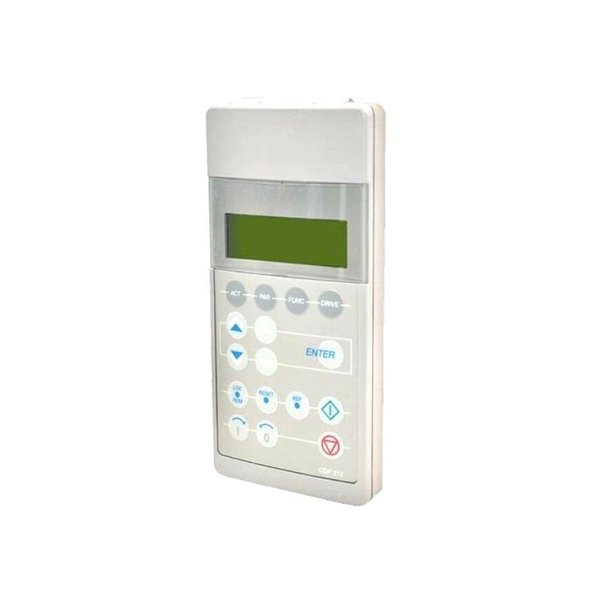

ABB CDP312 3BHL000220P0001 Control Panel
Manufacturer:ABB
Product Number:CDP312 3BHL000220P0001
Product Type:Control Panel
Origin:Sweden (SE)
Dimensions:200 x 150 x 50mm
Weight:0.2 kg
Views:40
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB CDP312 3BHL000220P0001 is a compact, user-friendly control panel designed for seamless integration into ABB drive systems. It offers clear visual feedback and intuitive operation, making it ideal for both commissioning and maintenance tasks. Its robust build ensures reliable performance even in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CDP312 3BHL000220P0001 |
| Type | Control Panel |
| Dimensions | 200 x 150 x 50 mm |
| Weight | 0.2 kg |
| Display | Backlit LCD |
| Interface | Keypad and navigation keys |
| Mounting | Panel-mount |
| Operating Temperature | -10°C to +50°C |
| Protection Class | IP54 |
Applications
The CDP312 is widely used in:
-
ABB drive commissioning and configuration
-
Parameter monitoring and adjustment in automation systems
-
Industrial machine control
-
Service and maintenance diagnostics
-
System troubleshooting in production lines
Advantages
-
Compact and lightweight, easy to install
-
Intuitive interface simplifies operation
-
Robust and durable design suitable for industrial settings
-
Wide temperature operating range
-
IP54 protection ensures resistance to dust and splashes
-
Enhances efficiency of ABB drives and systems
FAQ
Q1: What is the main function of the CDP312?
A1: It provides control and monitoring capabilities for ABB drive systems.
Q2: Can it be mounted directly on a panel?
A2: Yes, it is designed for panel mounting with an IP54 protection rating.
Q3: Does it support backlit display?
A3: Yes, it features a clear backlit LCD for easy readability.
Q4: What is the weight of the CDP312?
A4: The panel weighs approximately 0.2 kg.
Q5: What temperature range can it operate in?
A5: It works reliably between -10°C and +50°C.
Q6: Is it compatible with all ABB drives?
A6: It is compatible with a range of ABB drives; check specific compatibility in the manual.
Q7: How durable is the unit in dusty environments?
A7: With IP54 protection, it withstands dust and splashes effectively.
Q8: Is it easy to use for maintenance purposes?
A8: Yes, its intuitive interface makes it suitable for both maintenance and diagnostics.
Q9: Does it require external power?
A9: No, it draws power from the connected drive system.
Q10: What is the size of the CDP312?
A10: Its dimensions are 200 x 150 x 50 mm.
