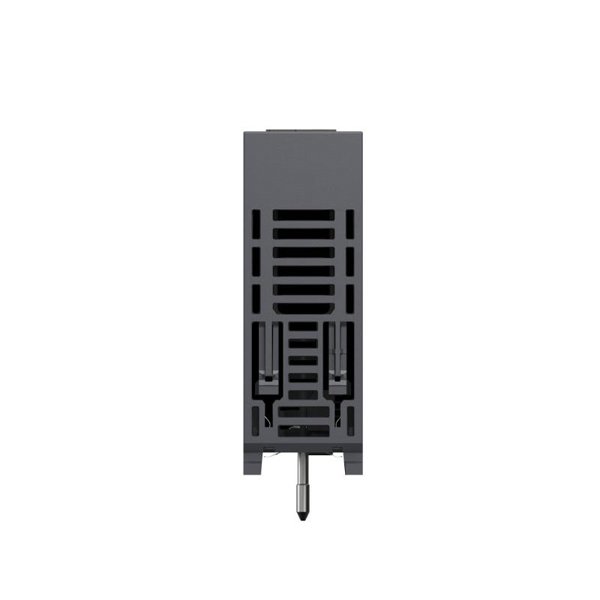

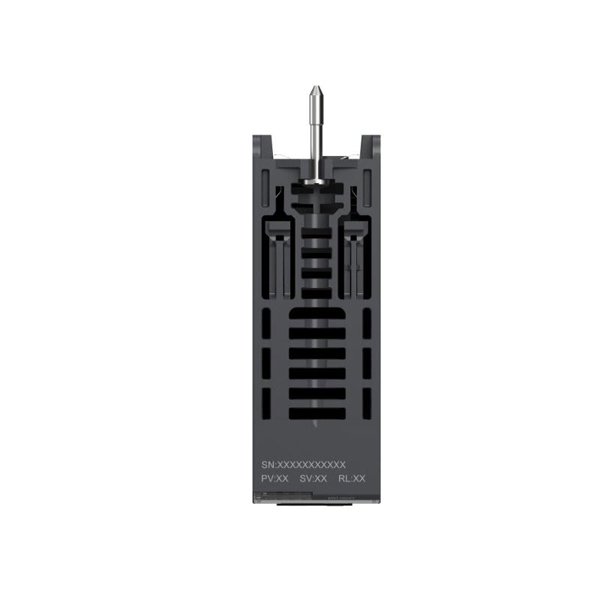

Schneider BMXERT1604T Multifunction Input Module
Manufacturer:Schneider
Product Number:BMXERT1604T
Product Type:Multifunction Input Module
Origin:France
Dimensions:32 x 100 x 86 mm
Weight:0.454 kg
Views:162
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider Electric BMXERT1604T is a high-performance Ethernet Remote I/O module designed for use with the Modicon M340 automation platform. As part of the Modicon X80 I/O system, this module offers seamless integration for distributed control applications requiring fast, flexible, and reliable digital input capabilities across industrial networks.
Featuring 16 discrete input/output channels, the BMXERT1604T supports deterministic Ethernet communication through Ethernet TCP/IP protocols. This allows real-time data acquisition and communication between field devices and the control system over extended distances. It is optimized for high-speed and time-sensitive operations, making it suitable for advanced automation environments such as manufacturing plants, utility systems, and infrastructure monitoring.
Engineered for DIN rail mounting and compliant with industrial standards, this I/O module provides robust diagnostics, LED indicators per channel, and hot-swap capabilities for maintenance without system downtime.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | BMXERT1604T |
| Product Type | Remote I/O Ethernet Input Module |
| Brand | Schneider Electric |
| Series | Modicon X80 |
| Platform Compatibility | Modicon M340, Modicon X80 |
| Communication Protocol | Ethernet TCP/IP, Modbus TCP |
| Number of Channels | 16 channels (mixed I/O) |
| Input Type | Discrete (Digital) Inputs |
| Input Voltage | 24 VDC |
| Output Type | Transistor Outputs |
| Output Current (max) | 0.5 A/channel |
| Isolation | Channel-to-bus isolation (galvanic) |
| Diagnostic Features | Per-channel status LEDs, network diagnostics |
| Hot Swap Support | Yes |
| Power Supply Requirement | 24 VDC (±20%) |
| Mounting Type | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Certifications | CE, UL, CSA, RoHS, EAC |
| Dimensions (W x H x D) | 32 x 100 x 86 mm |
| Weight | 0.454 kg |
Product Applications
The BMXERT1604T is ideal for automation applications that demand modular, decentralized control and Ethernet-based communication. Typical application areas include:
Manufacturing Automation: Real-time monitoring and control of conveyors, sensors, actuators, and safety systems.
Water Treatment Plants: Remote data acquisition and diagnostics in distributed water processing units.
Food & Beverage Industry: High-speed packaging line monitoring with input/output signal control.
Smart Infrastructure: Reliable I/O data exchange in traffic management and building control systems.
Energy Management Systems: Integration of I/O signals in substations and renewable energy installations.
Material Handling Systems: Coordination of input and output devices for cranes, lifts, and automated warehouses.
Product Advantages
Seamless Ethernet Integration: Supports open Ethernet communication, enabling flexible architecture and easy system expansion.
High Channel Density: 16 channels in a compact footprint make it ideal for space-constrained panels.
Robust Diagnostics: LED indicators provide quick visual feedback on channel and network status.
Hot Swappable: Modules can be replaced without shutting down the system—minimizing downtime during maintenance.
Durable Design: Industrial-grade housing and electronics ensure performance in harsh environments.
Easy Installation: Standard DIN rail mounting simplifies panel design and field setup.
Cross-Platform Compatibility: Integrates with Modicon M340 and other Ethernet-compatible controllers.
Scalable for Large Systems: Well-suited for scalable systems requiring centralized or distributed I/O.
Frequently Asked Questions (FAQ)
What does the BMXERT1604T actually do in a control system?
It acts as a remote I/O module that reads input signals and sends output signals over Ethernet, making your control system more flexible and distributed.
Can I connect this module directly to a Modicon M340 CPU?
Yes, it’s fully compatible with Modicon M340 via Ethernet and is designed to operate seamlessly within the same architecture.
Is this module suitable for fast-response applications?
Absolutely. It’s built for deterministic Ethernet communication, making it well-suited for fast control cycles.
How do I know if the module is receiving power and signals?
LED indicators on the front panel show power status and I/O activity for each channel, making it easy to diagnose issues.
Does it support hot-swapping during system operation?
Yes. You can replace the module while the system is running, provided that safety protocols are followed.
What kind of output does it support?
It provides transistor-type outputs, good for switching digital devices like lamps, contactors, or valves.
Can I use this module in environments with high humidity?
Yes, it can tolerate up to 95% relative humidity, as long as there’s no condensation.
What happens if communication with the CPU is lost?
The module can be configured to go into a safe state or retain its last known output—depending on how you set it up.
Is there a specific configuration tool for setup?
Yes, you can configure it using EcoStruxure Control Expert (formerly Unity Pro), which allows full customization.
How do I mount this module in my panel?
It snaps onto a standard DIN rail and connects via Ethernet. It’s compact and quick to install.
