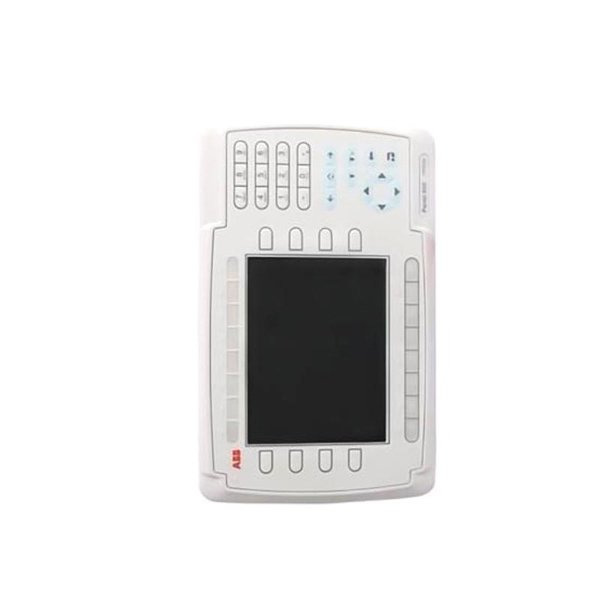

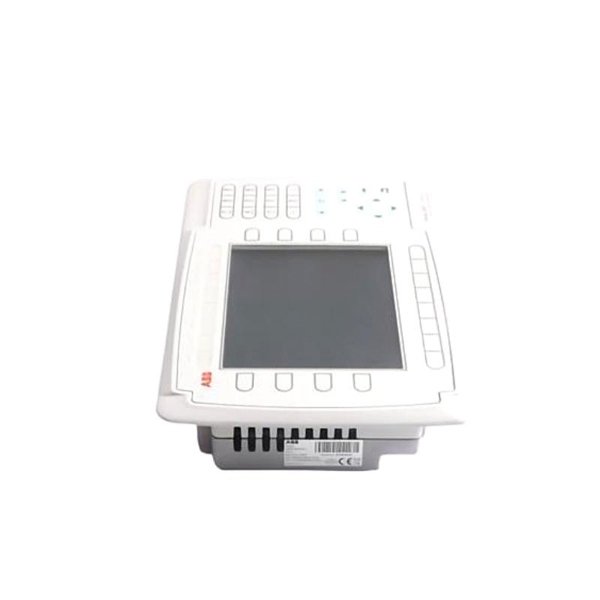

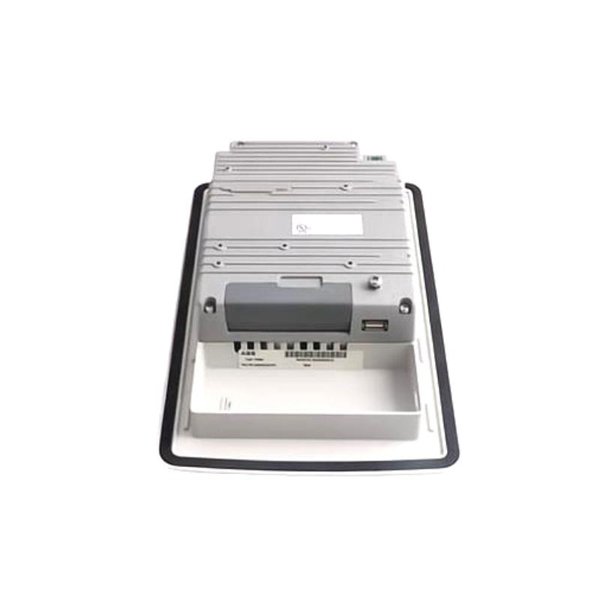

The ABB PP836 3BSE042237R1 Operator Panel is a high-performance Human-Machine Interface (HMI) unit designed for industrial process control and monitoring. As part of ABB’s leading line of automation products, the PP836 serves as a critical interface between operators and control systems in environments such as power plants, manufacturing facilities, and processing industries.

Built with a durable touch-sensitive display and a robust embedded system, the PP836 enables operators to interact with control systems, visualize process data in real time, and manage alarms, diagnostics, and parameters with ease. It supports ABB’s 800xA control system architecture, ensuring seamless communication and integration with AC 800M controllers and other ABB automation platforms.

The panel’s modular software compatibility, excellent graphical rendering, and rugged build quality make it ideal for demanding industrial applications that require long-term reliability and intuitive user interaction.

Product Specifications

Product Applications

The ABB PP836 operator panel is engineered for mission-critical environments where visual feedback and intuitive system interaction are essential. Its primary application areas include:

• Power Generation Facilities – Real-time turbine and generator monitoring.

• Chemical and Petrochemical Plants – Operator access to process control and safety systems.

• Water Treatment Plants – SCADA interface for filtration and distribution systems.

• Manufacturing Lines – Monitoring and controlling robotic systems and automated production lines.

• Food and Beverage Processing – Hygienic monitoring of batching, mixing, and packaging systems.

• Oil & Gas Refineries – Zone-specific deployment for interface with distributed control systems (DCS).

Product Advantages

• Reliable Touch Interface: Industrial-grade resistive touchscreen allows gloved operation and long service life.

• High Compatibility: Seamless integration with ABB’s AC 800M and 800xA systems enables centralized control.

• Compact Yet Powerful: Efficient internal hardware with low power usage and high graphical performance.

• Environmental Protection: IP65 front panel rating ensures dust and water resistance in harsh conditions.

• Multiple Communication Ports: Ethernet, USB, and serial ports allow flexible device and network connections.

• User-Centric Design: Intuitive user interface reduces training time and enhances operational safety.

Frequently Asked Questions (FAQ)

1. Q: What control systems is the PP836 compatible with?

   A: It is fully compatible with ABB’s 800xA system and AC 800M controllers.

2. Q: Can the panel be used with gloves?

   A: Yes, the resistive touchscreen is responsive even when operated with gloved hands.

3. Q: What is the ingress protection rating of the panel?

   A: The front panel is rated IP65, suitable for industrial environments.

4. Q: Does it support USB peripherals such as keyboards or memory drives?

   A: Yes, the panel includes USB ports for connecting external devices.

5. Q: Can the panel display multiple process screens simultaneously?

   A: Yes, it supports multitasking through the ABB SoftControl interface.

6. Q: Is the operating system customizable?

   A: The panel uses a pre-installed embedded Linux or ABB-specific OS and is not user-customizable.

7. Q: What is the lifespan of the touchscreen?

   A: The resistive screen typically offers over 1 million touches per point.

8. Q: Can it be wall-mounted?

   A: It is designed for panel mounting; wall mounting would require custom fixtures.

9. Q: Is the firmware upgradeable?

   A: Yes, firmware can be updated via USB or Ethernet.

10. Q: What kind of applications can be deployed on it?

    A: Operator visualization, alarm control, trend logging, diagnostics, and event handling.
