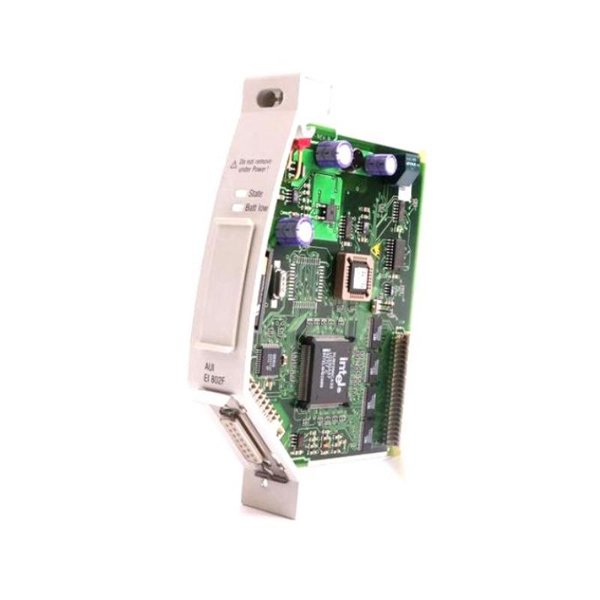

ABB EI802F 3BDH000016R1 Ethernet Module AUI
Manufacturer:ABB
Product Number:EI802F 3BDH000016R1
Product Type:Ethernet module AUI
Origin:Sweden (SE)
Dimensions:125 ×155 ×28 mm
Weight:0.15 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB EI802F 3BDH000016R1 is an Ethernet communication module designed for the ABB AC 800F FieldController. It provides a reliable AUI interface for connecting Ethernet transceivers supporting 10Base5, 10Base2, 10BaseT, and 10BaseFL standards. This module ensures seamless integration with Industrial Ethernet networks, enhancing system flexibility and communication performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | EI802F |
| Part Number | 3BDH000016R1 |
| Interface | AUI (Attachment Unit Interface) |
| Supported Standards | 10Base5, 10Base2, 10BaseT, 10BaseFL |
| Application | Ethernet connectivity for AC 800F |
| Power Supply Slot | E1 or E2 of AC 800F |
| Dimensions (W×H×D) | 125 × 155 × 28 mm |
| Weight | 0.15 kg |
Applications
-
Ethernet communication within ABB Freelance and Industrial IT systems.
-
Redundant or non-redundant AC 800F controller configurations.
-
Integration of field devices into plant-wide Ethernet networks.
Advantages
-
Supports multiple Ethernet media through AUI.
-
Enables flexible network configurations including star, bus, or fiber optic topologies.
-
Easy installation in standard AC 800F slots.
-
Proven reliability in harsh industrial environments.
-
Supports redundancy when used in redundant AC 800F systems.
FAQ
Q1: What is the primary function of the EI802F?
A1: It connects the AC 800F controller to Ethernet networks via an AUI interface.
Q2: Which Ethernet standards does the EI802F support?
A2: It supports 10Base5, 10Base2, 10BaseT, and 10BaseFL.
Q3: In which slots of AC 800F can the EI802F be installed?
A3: It can be installed in slots E1 or E2.
Q4: Does the EI802F support redundant configurations?
A4: Yes, it can be used in redundant AC 800F setups.
Q5: What are the dimensions of the EI802F?
A5: 125 × 155 × 28 mm.
Q6: What is the weight of the EI802F?
A6: Approximately 0.15 kg.
Q7: Is the EI802F suitable for fiber optic connections?
A7: Yes, when used with appropriate AUI transceivers.
Q8: Can I mix the EI802F with other Ethernet modules in one controller?
A8: Yes, it is possible depending on system design.
Q9: What is the difference between EI801F, EI802F, and EI803F?
A9: EI801F uses 10Base2 (BNC), EI802F uses AUI, and EI803F uses Twisted Pair (RJ45).
Q10: Does the EI802F require external power?
A10: No, it is powered by the AC 800F backplane.
