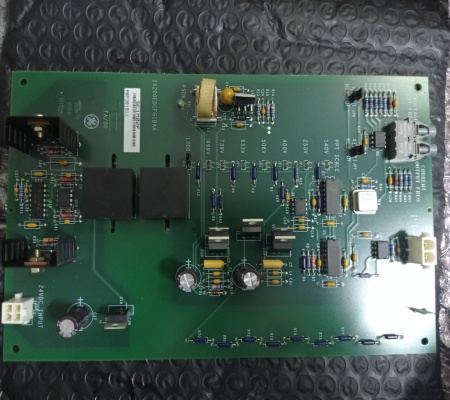

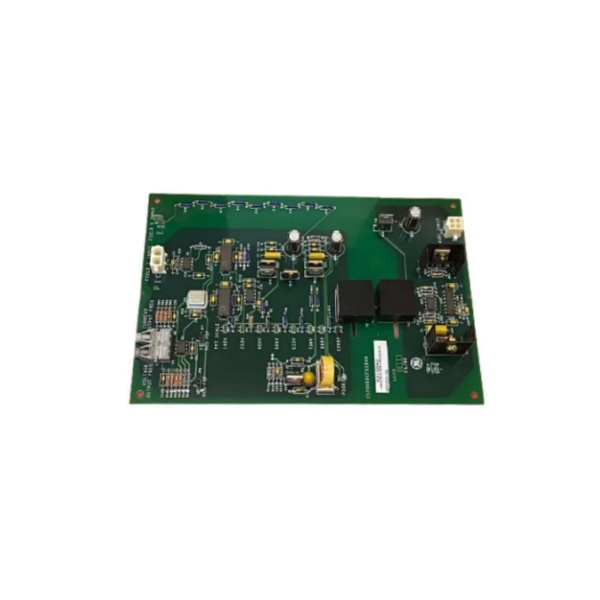

General Electric IS200EDCFG1BAA Exciter DC Feedback Board

The EDCF board measures the excitation current and excitation voltage of the SCR bridge and interfaces with the EISB board in the controller via a high-speed fiber optic link. The fiber optic provides voltage isolation between the two boards and is highly noise immune. The excitation voltage feedback circuit provides seven selector settings to narrow down the bridge voltage to suit the application. The IS200EDCFG1BAA EDCF board is used to measure the excitation current and voltage of the SCR bridge throughout the EX2100 Series drive assembly. This IS200EDCFG1BAA product can also interface with the corresponding EISB board via a high-speed fiber optic link connector. The EDCF abbreviation board contains a single LED indicator that indicates corrective action of the board power supply. The LED is labeled PSOK and glows green to indicate normal PCB functionality.

Frequently asked questions about the product are as follows:

-What is the GE IS200EDCFG1BAA used for?

The IS200EDCFG1BAA is an exciter DC feedback board used to monitor and process DC feedback signals in gas and steam turbine excitation systems.

-What signals does the IS200EDCFG1BAA process?

Excitation voltage, excitation current, other exciter related DC signals.

-How do I install the IS200EDCFG1BAA?

Install the board in the designated slot inside the Mark VI control system housing. Ensure proper grounding and shielding to avoid electrical noise or interference.
