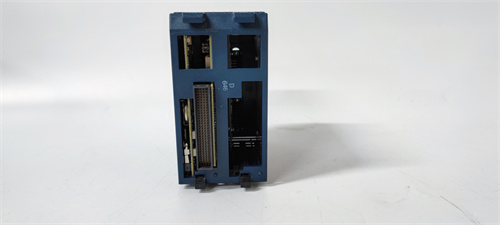

GE IC695CPE310 Product Introduction

The GE IC695CPE310 CPU processor is mainly used for real-time control of machines,processes and material handling systems.It integrates advanced microelectronics,computer technology,automatic control technology and communication technology,and is designed to replace traditional relays,execution logic,timing,counting and other sequential control functions,and establish a flexible remote control system.

Main Features

Powerful processing power

Equipped with a 1.1 GHz Atom processor,it provides fast data processing and control capabilities.

With 10 MB of user memory and 10 MB of non-volatile flash user memory,user memory can be retained without batteries.

Various communication interfaces

Communicate with the programmer through the internal Ethernet port or serial port.

Communicate with I/O and intelligent option modules through dual PCI/serial backplanes.

The embedded Ethernet interface supports two programmer connections and supports data rates up to 100Mb/s.

Provides RS-485 and RS-232 serial ports,supports Modbus RTU slave,SNP slave and serial I/O protocols.

Flexible programming environment

Supports ladder diagram,structured text,function block diagram and C language programming to meet different programming needs.

Configurable data and program memory,supports automatic positioning of symbol variables,and can use any amount of user memory.

High reliability and stability

Designed for industrial environments,with high reliability and stability.

The optional energy pack provides power to the CPU long enough to write user memory to non-volatile memory(NVS)when the system is powered off.

Rich functions and expandability

Supports most 90-30 series modules and expansion racks.

Can be installed in any pair of slots in the main RX3i controller rack(except the two highest numbered slots).

Supports up to 512 program blocks,with a maximum size of 128KB per program block.

Technical Specifications

Processor:1.1 GHz Atom processor

Memory:10 MB user memory,10 MB non-volatile flash user memory

Communication interface

Embedded Ethernet interface(supports 10Mb/s and 100Mb/s)

RS-485 and RS-232 serial ports

Block support:Up to 512 blocks,each block up to 128KB

Power requirements:3.3V DC,5V DC or 24V DC

Operating temperature:0 to 60°C(some information may indicate an operating temperature of-20°C to+50°C,but 0 to 60°C is a more common specification)

Dimensions and weight:The specific dimensions and weight may vary depending on the product batch and manufacturer,but generally this series of modules has a compact design and moderate weight.

Application areas

GE IC695CPE310 CPU processor is widely used in various industrial automation control systems,such as manufacturing,energy,transportation and other fields.It can perform real-time control of machines,processes and material handling systems,and realize automation and intelligence of the entire system through communication with I/O and intelligent option modules.
