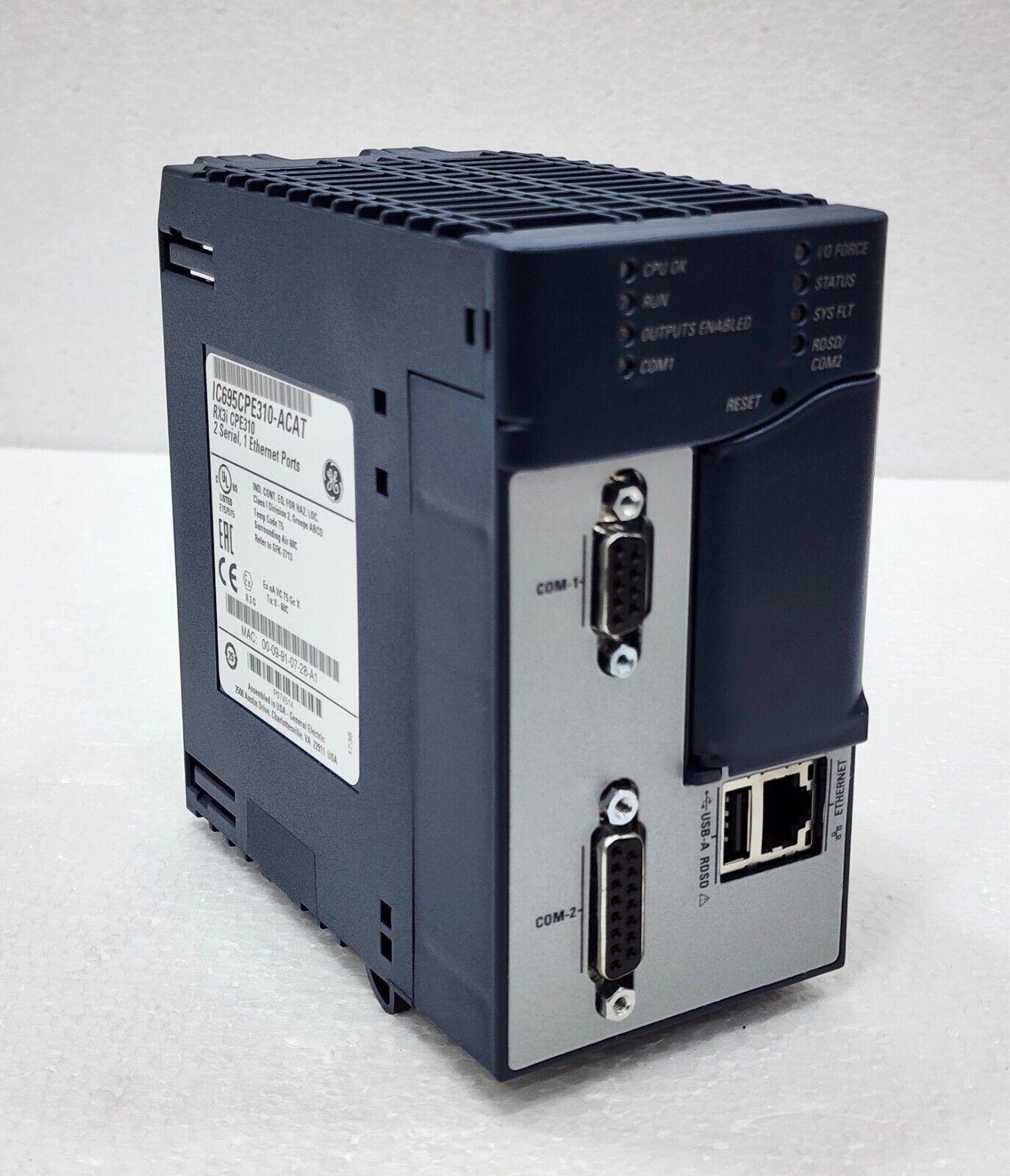

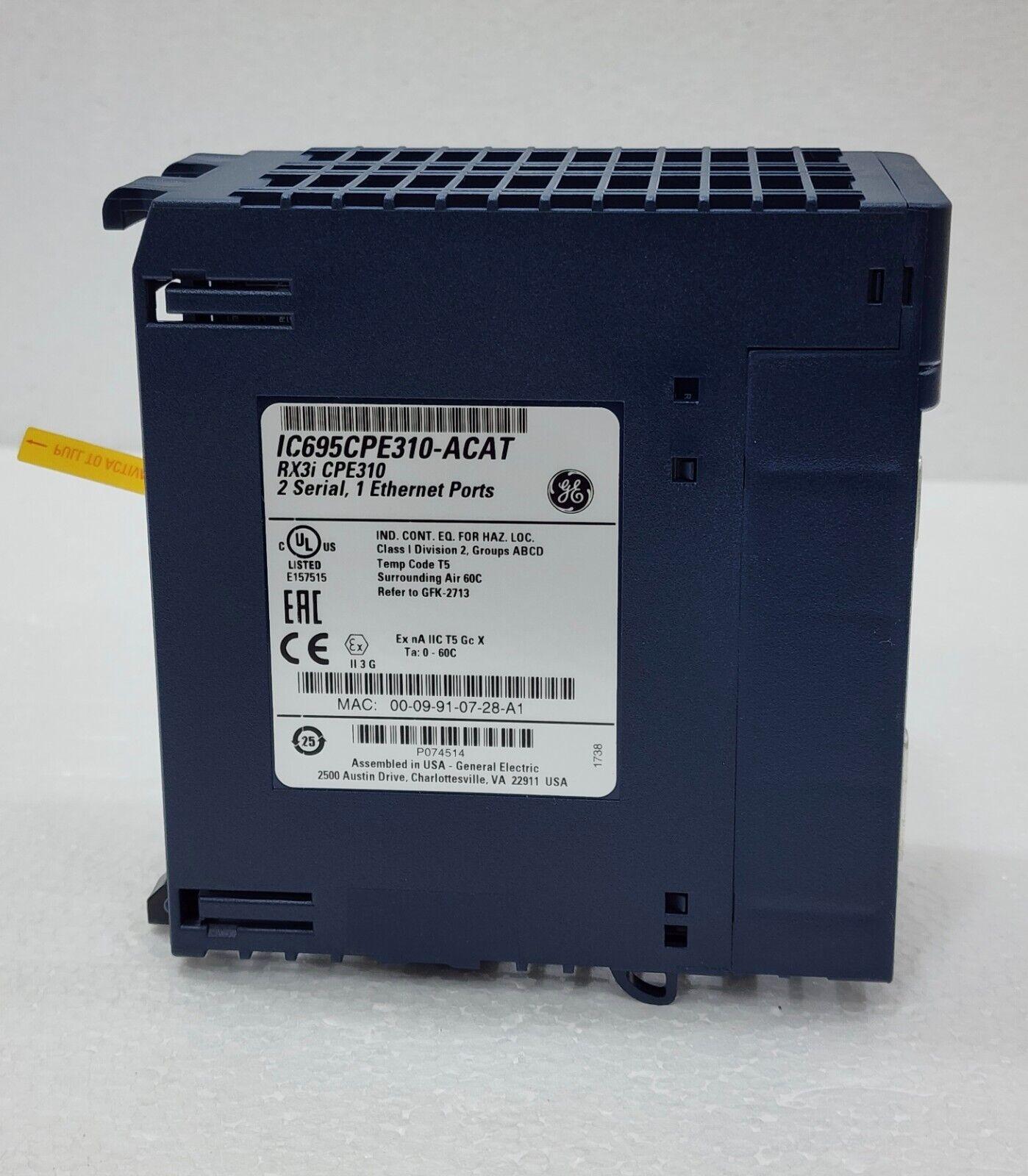

GE Fanuc IC695CPE310 PACSystems™ RX3i CPE310 Controller

GE Fanuc IC695CPE310 PACSystems™ RX3i controllers provide the foundation for Industrial Internet connectivity. It is a powerful, modular Programmable Automation Controller with a focus on high availability. The RX3i features a single control engine and a universal programming environment to provide application portability across multiple hardware platforms.

PACSystems™ RX3i Controller Specifications

• Part Number: IC695CPE310
• Form Factor: Backplane
• User Memory: 13MB
• I/O:
  • 32k Bits Discrete I/O
  • 32k Words for Analog I/O
• Energy Pack: Included
• Redundancy Support: Media Redundancy (MRP) with PNC001
• Ethernet Ports: 3 (2-port switch, 10/100/1000)
• Ethernet Protocols:
  • SRTP Client/Server
  • Modbus TCP/IP
  • OPC UA
  • EGD
  • PROFINET
  • DNP3 Outstation
  • IEC-61850 Client
  • IEC-104 Server
  • HART passthrough
• Serial Protocols:
  • ASCII Serial
  • Modbus/RTU
• Remote I/O Devices: Up to 255 Simplex with PNC001
• USB Interface: 1x USB-A 2.0
• Environmental: 0 to 60°C
• Agency Approvals:
  • UKCA
  • UL
  • cUL
  • RoHS
  • CCC
  • FCC
  • Reach
  • UL HazLoc C1D2
  • ATEX Zone 2
• Marine Certifications:
  • ABS
  • BV
  • LR
  • DNV GL

Features

• Programming tools include tag-based programming, a library of reusable code, and a test edit mode for improved online troubleshooting.
• User-friendly environment to increase design flexibility and improve engineering efficiency and productivity.
• Plug-and-play addition of PROFINET-enabled devices for secure connectivity of machines, data, and people.
• High-speed multicore processor for faster throughput without information bottlenecks.
• Support for various I/O types including high-density discrete I/O, universal analog (TC, RTD, Strain Gauge, Voltage, and Current configurable per channel), isolated analog, high-density analog, high-speed counter, and motion modules.
• Isolated serial ports for robust and reliable integration of sensors and instruments.
