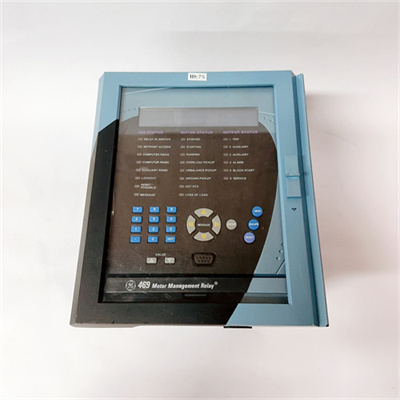

GE 469-P1-HI-A20-E Detailed Introduction

GE 469-P1-HI-A20-E is an advanced motor management relay produced by General Electric(GE),which is designed to provide comprehensive monitoring,control and protection functions for medium and large motors and is widely used in the field of industrial automation control.The following is a detailed analysis of the product.

Product Overview

Model and Use

469-P1-HI-A20-E is part of the GE Multilin 469 series motor management relay,which is used to protect and manage medium and large motors to ensure their stable operation.

Application Field

Applicable to chemical,electric power,manufacturing,metallurgy,rubber,cement,mechanical equipment,construction and other industries.

Technical Features

Power Protection Function

Monitor and protect equipment and lines in the power system,detect faults,overcurrent,undercurrent,overvoltage,undervoltage,frequency abnormality,etc.,and take corresponding protection actions.

High-precision measurement

Real-time measurement of parameters such as voltage,current,frequency and power for monitoring,analysis and control of power systems.

Communication interface

Supports multiple communication interfaces and protocols(such as Modbus,PROFIBUS,etc.),which is convenient for data exchange and remote monitoring with other devices and systems.

Event recording and alarm function

Record important system events and fault information,and notify operators in time through the alarm function.

Programmability

Users can set parameters,configure logic and define protection strategies according to specific application requirements.

Reliability and durability

Adopts industrial-grade design,adapts to harsh production environments,and has high reliability and durability.

Product advantages

Comprehensive protection:Provides a variety of power protection functions to ensure the safe operation of motors and equipment.

High-precision measurement:Real-time monitoring of key parameters,providing data support for equipment maintenance and optimization.

Easy to integrate:Supports multiple communication protocols,which is easy to integrate with other automation equipment.

User-friendly:Equipped with enhanced panel display,the operation is intuitive and convenient.

Strong environmental adaptability:The protective coating under chemical environment enables it to maintain good working condition in harsh environments.

Technical parameters

Rated voltage:DC 90-300V,AC 70-265V

Frequency range:48-62Hz

Current input:1A phase CT secondary

Analog output:4 0 to 1mA analog outputs

Digital input:9 opto-isolated inputs

Protection level:IP20

Overvoltage category:II

Insulation voltage:300V

Pollution level:2

Operating temperature:-40°C to+60°C

Application scenarios

Motor protection:Detect the operating status of the motor,including parameters such as current,voltage and temperature,and promptly detect and respond to possible electrical faults or overload conditions.

Cooling time constant simulation:When the motor is running or stopped at a load below the overload pickup set point,the relay simulates the cooling process of the actual motor.

Start prohibition and emergency restart:Prevent the motor from starting when its thermal capacity is insufficient,or reset the supervision timer in an emergency to allow the hot motor to start.

RTD bias:Based on the measured current,but taking into account the effects of ambient temperature and motor cooling conditions,an RTD(Resistance Temperature Detector)bias adjustment can be made to more accurately reflect the actual operating state of the motor.
