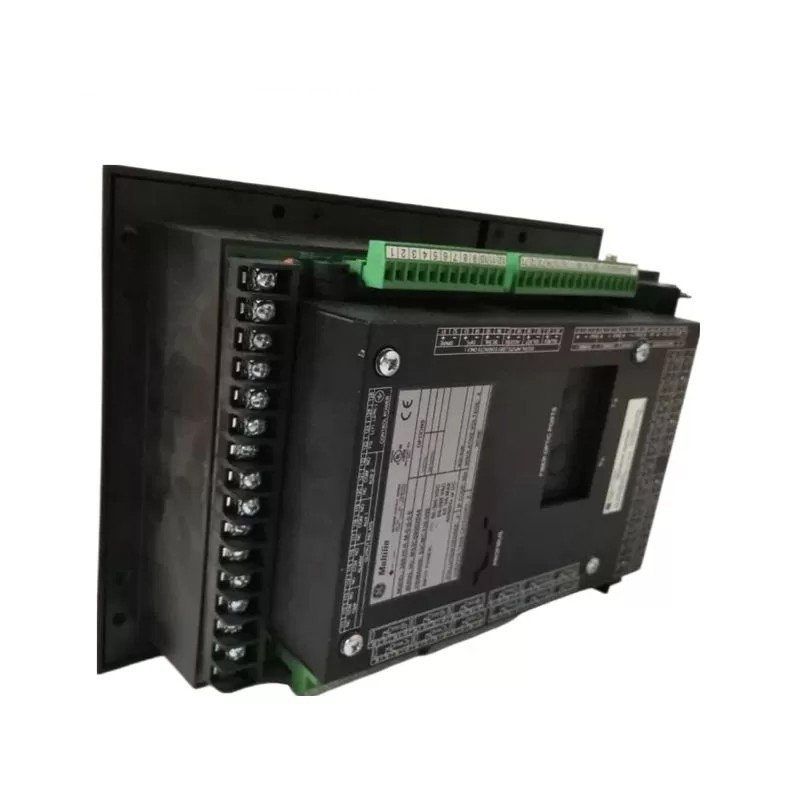

GE Fanuc 369-HI-R-0-0-0 Motor Management Relay

The GE Fanuc 369-HI-R-0-0-0 is a versatile motor management relay for medium-sized AC motors. It belongs to the GE Speedtronic Mark V series. This relay is known for its robust protection features and advanced monitoring capabilities.

Key Features

• Comprehensive Motor Protection: The relay offers protection against overcurrent, short circuit, ground fault, thermal overload, motor starting and stopping issues, and loss of excitation.
• Advanced Monitoring: It continuously monitors motor parameters. This allows for early detection of potential issues, preventing unexpected downtime.
• Customizable Protection: Tailor the protection settings to fit specific application requirements. This ensures optimal performance and safety.
• Built-in Diagnostics: The relay includes self-diagnostic features that help identify and resolve issues with the relay or motor system.
• Communication Capabilities: Supports various communication protocols, allowing seamless integration into your control system.
• 12 RTD Inputs: The “R” in the model number signifies 12 built-in Resistance Temperature Detector (RTD) inputs. These enable precise temperature monitoring of the motor and its environment.

Technical Specifications

• Control Power: 50-300 VDC, 60-264 VAC
• Frequency: 50/60 Hz
• Current Probe: 485 mA
• RTD Inputs: 12 (optional)
• Dimensions: 11 cm x 30 cm x 21 cm
• Weight: 0.21 kg
• Other Features: Enhanced faceplate, motor health report, motor start logger, advanced event recorder

Applications

The 369-HI-R-0-0-0 is suitable for various industries, including:

• Manufacturing
• Oil and Gas
• Water and Wastewater

Benefits

• Improved Motor Reliability: Comprehensive monitoring and protection extend motor lifespan.
• Enhanced System Uptime: Early fault detection minimizes downtime and reduces maintenance costs.
• Increased Safety: Robust protection features safeguard personnel and equipment.
• Flexibility: Customizable settings adapt to various applications.
