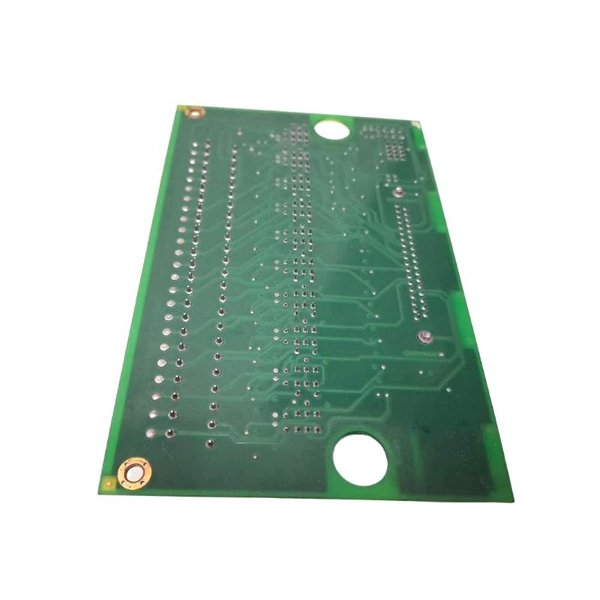

General Electric IS200STCIH6A Simplex Contact Input Terminal Board

The GE IS200STCIH6A Simplex Contact Input Terminal Board is an advanced interface component designed to provide reliable contact input connections for the IS200 series of protection and control systems. This terminal board serves as a bridge between field devices and the control modules, ensuring precise signal transfer, fault-resistant connections, and simplified wiring.

Engineered for high-performance industrial environments, the IS200STCIH6A supports secure and organized signal routing for protective relays, remote monitoring systems, and automation modules. Its robust construction allows consistent performance under electrical and environmental stress, making it an ideal choice for substations, industrial control systems, and complex automation networks.

This terminal board is particularly valued for its modular design, enabling easy integration with other IS200 series components, as well as providing the flexibility to expand contact inputs as system requirements grow.

Product Specifications

Product Applications

The GE IS200STCIH6A is widely applied in various industrial and electrical control scenarios:

• Substation automation for contact input monitoring

• Integration with protective relays to track field device states

• SCADA systems for digital input signal acquisition

• Industrial process control panels requiring multiple discrete inputs

• Remote terminal units (RTUs) for real-time input monitoring

• Retrofit projects requiring structured wiring and compact terminal solutions

Its high-density layout allows for efficient organization of multiple contact inputs without complicating maintenance or troubleshooting.

Product Advantages

The GE IS200STCIH6A provides several distinct advantages:

• Reliable Connectivity: Designed to maintain stable input connections under high electrical and mechanical stress.

• Easy Installation: DIN rail and panel mounting options simplify system integration.

• Durability: Corrosion-resistant terminals and high-quality insulating materials ensure long-term performance.

• Compact Design: Optimized for high-density wiring, saving space in control panels.

• Safety Compliance: Meets IEC and UL standards to reduce risk of electrical faults.

• Modularity: Compatible with other IS200 series devices for system expansion.

• Maintenance-Friendly: Clearly labeled terminals simplify troubleshooting and system modifications.

Frequently Asked Questions (FAQ)

1. Can the IS200STCIH6A support both dry and wet contact inputs?

   It can accommodate both dry and wet contact types.

2. What is the maximum current per terminal?

   Each terminal can handle up to 5 A safely.

3. Is this terminal board compatible with all IS200 series modules?

   Yes, it is fully compatible with IS200 series relays and interface devices.

4. What is the operating temperature range?

   It operates reliably between -20°C and +70°C.

5. How is the terminal board mounted?

   It can be mounted on either a DIN rail or directly on a panel.

6. Can multiple IS200STCIH6A boards be connected for expanded input points?

   Yes, it allows modular expansion to accommodate additional inputs.

7. What insulation resistance does the board provide?

   Insulation resistance is 100 MΩ or greater at 500 V DC.

8. What dielectric strength can it withstand?

   It withstands 2.5 kV AC at 50 Hz for 1 minute without breakdown.

9. Are the contact points corrosion-resistant?

   Yes, all contact points are treated to resist corrosion in industrial environments.

10. Does the board comply with international safety standards?

    Yes, it complies with IEC 60947-7-1 and UL 1059 standards.
