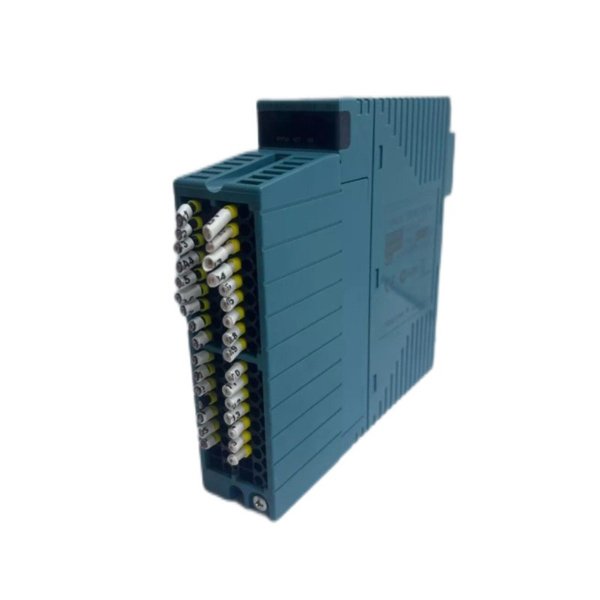

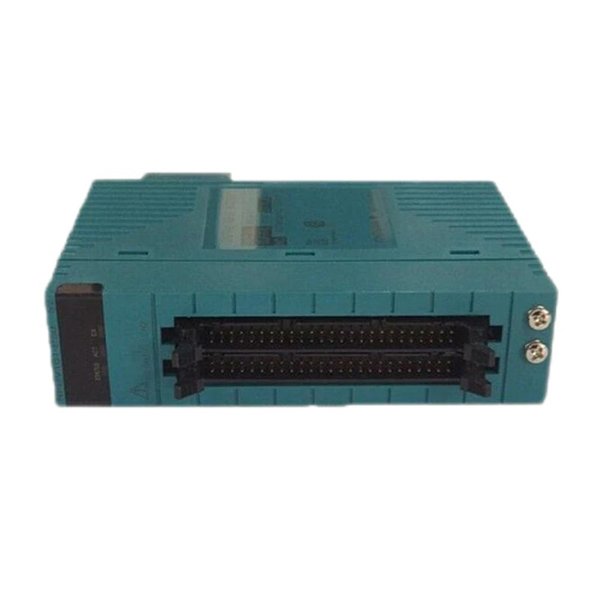

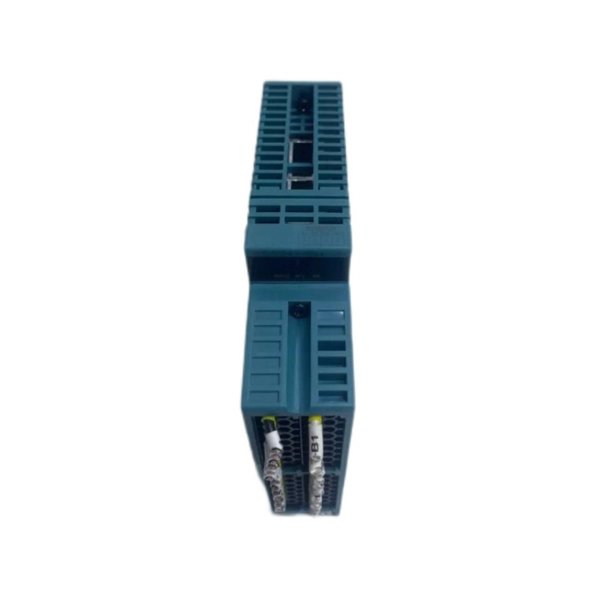

Yokogawa NFAI543 Analog Output Modules

The Yokogawa NFAI543 Analog Output Module is a high-performance output module designed to provide precise analog signals from Yokogawa’s control systems to field devices such as actuators, control valves, and instrumentation requiring analog control. This module is a key component in Yokogawa’s automation architecture, supporting distributed control systems (DCS) such as CENTUM series or safety systems.

The NFAI543 ensures reliable, stable, and highly accurate analog signal transmission, making it ideal for industries where precise control over process variables such as temperature, flow, pressure, or level is essential. Built for demanding industrial environments, the NFAI543 offers excellent durability, diagnostic capabilities, and seamless system integration.

Key Features

• Provides high-accuracy analog output signals (e.g., 4-20mA) to field devices

• Supports precise control of actuators, valves, and other analog-controlled equipment

• Compatible with Yokogawa CENTUM and other control system platforms

• High-resolution output ensures stability and precision in control applications

• Advanced diagnostic functions for fault detection and system health monitoring

• Supports redundant configurations for enhanced system reliability

• Compact, modular design for efficient installation and maintenance

• Robust industrial-grade construction for harsh operating environments

• Low power consumption for efficient system operation

• Compliant with global safety, EMC, and industrial standards

Technical Specifications

Industry Applications

The Yokogawa NFAI543 Analog Output Module is widely used across industries requiring precision analog control:

• Oil & Gas: Precise control of valves and actuators in refineries and offshore platforms

• Power Generation: Regulates processes in turbine and plant control systems

• Chemical Processing: Enables fine control of process variables such as temperature and flow

• Water & Wastewater Treatment: Controls pumps, valves, and treatment systems

• Pharmaceutical Manufacturing: Supports accurate control in regulated production environments

• Metals and Mining: Provides reliable analog outputs for heavy-duty automation systems

Product Advantages

• Precise Analog Control: High-resolution output signals for stable and accurate control of field devices

• Reliable Performance: Robust design ensures long-term operation in demanding environments

• Diagnostics and Monitoring: Built-in functions detect faults and monitor system health

• Seamless System Integration: Fully compatible with Yokogawa control platforms

• Channel Isolation: Prevents signal interference and enhances system safety

• Redundancy Support: Enables high system availability for critical applications

• Compact Footprint: Saves space in control cabinets or system racks

• Energy Efficient: Low power consumption for reduced operational costs

• Global Compliance: Meets international standards for safety, EMC, and reliability

• Field Proven: Trusted performance in a wide range of industrial control applications

Frequently Asked Questions (FAQ)

1. What is the function of the Yokogawa NFAI543?

   It delivers precise analog output signals (typically 4-20mA) from the control system to field devices such as actuators or valves.

2. How many output channels does the NFAI543 support?

   The module offers 8 independent analog output channels.

3. Is the NFAI543 compatible with Yokogawa’s CENTUM DCS?

   Yes, it integrates seamlessly with the CENTUM series and other Yokogawa automation platforms.

4. What type of analog signals does the NFAI543 provide?

   It primarily outputs 4-20mA signals, with other ranges configurable based on system requirements.

5. Does the NFAI543 support diagnostics?

   Yes, it includes output monitoring, fault detection, and status indicators for reliable system performance.

6. Is the NFAI543 suitable for use in harsh industrial environments?

   Yes, it is designed for continuous operation in demanding conditions with wide temperature and humidity ranges.

7. What isolation features does the NFAI543 offer?

   The module provides channel-to-channel and channel-to-ground isolation for enhanced signal integrity and safety.

8. Can the NFAI543 be used in redundant control system configurations?

   Yes, it supports redundancy setups to maximize system reliability.

9. What is the output accuracy of the NFAI543?

   The typical accuracy is ±0.1% of full scale, ensuring high-precision control.

10. Is the NFAI543 compliant with global standards?

    Yes, it meets CE, UL, RoHS, and IEC requirements for industrial automation equipment.
