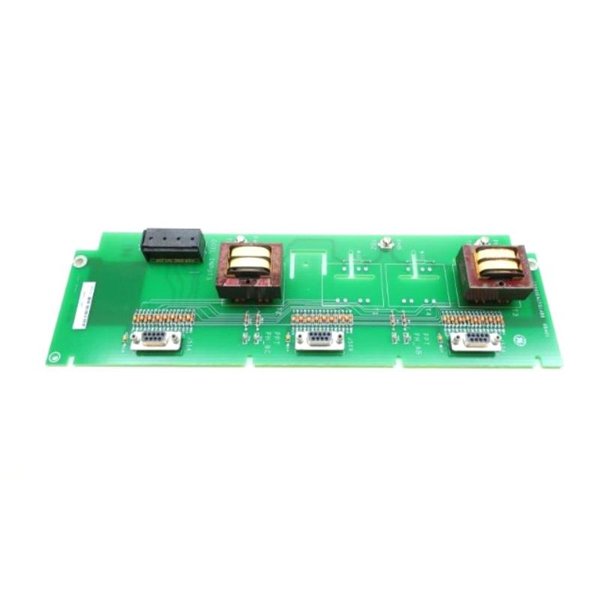

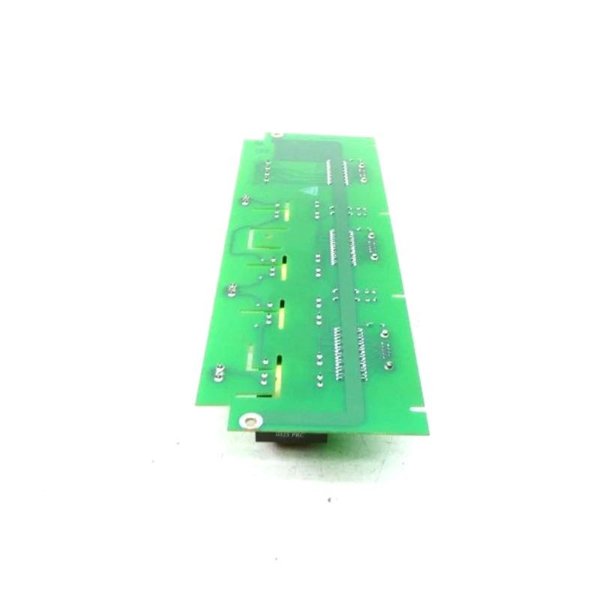

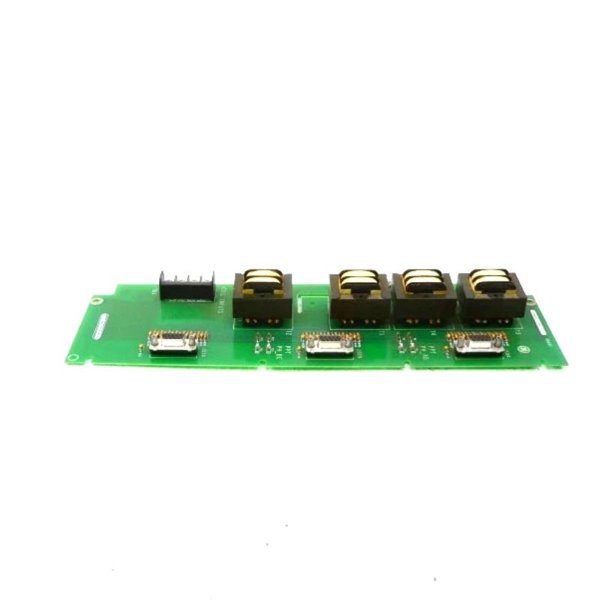

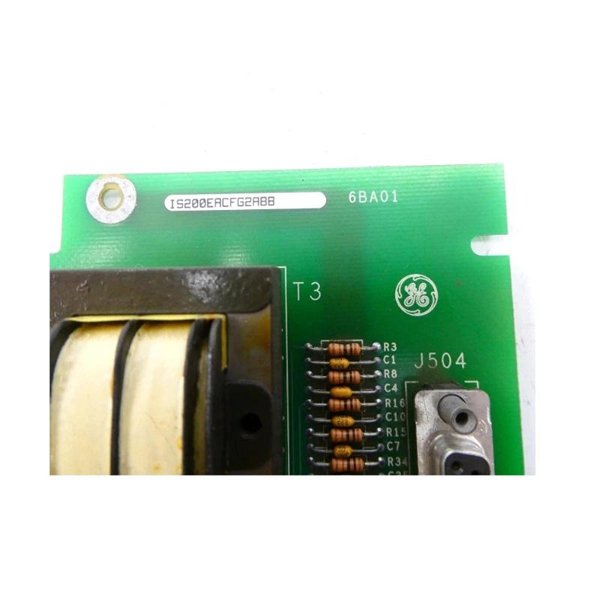

General Electric IS200EACFG3A Exciter Ac Feedback board

The GE IS200EACFG3A is an exciter AC feedback board designed to work with GE excitation systems. It provides precise AC feedback signals to ensure reliable control of generator excitation, contributing to system stability and performance.

Product Features

The IS200EACFG3A offers robust feedback functionality, high accuracy, and seamless integration into GE’s exciter systems. It is engineered for durability and long-term operation in demanding industrial environments.

Technical Specifications

Applications

• GE LS2100 and EX2000 excitation systems

• Generator excitation control

• Industrial power plants

• Utility power generation facilities

• Ensuring generator voltage stability

Advantages

• High precision AC feedback measurement

• Compact and lightweight design for easy installation

• Reliable performance in harsh environments

• Compatible with a wide range of GE exciter systems

• Improves system stability and response

FAQ

Q1: What is the function of the IS200EACFG3A?

A1: It provides AC feedback signals for accurate control of the generator excitation system.

Q2: Is it compatible with GE EX2000 systems?

A2: Yes, it is designed for use with EX2000 and similar GE exciter systems.

Q3: What are the board dimensions?

A3: The board measures 110 × 60 × 67 mm.

Q4: How much does it weigh?

A4: The weight is approximately 0.14 kg.

Q5: What is the operating temperature range?

A5: It operates between 0°C and +60°C.

Q6: Does it support both 50 Hz and 60 Hz frequencies?

A6: Yes, it supports both standard power frequencies.

Q7: How is it mounted in the system?

A7: It is rack-mounted within the exciter panel.

Q8: Can it be used in utility power plants?

A8: Yes, it is suitable for both industrial and utility applications.

Q9: What is the typical input voltage range?

A9: The board handles input voltages up to 120 VAC.

Q10: Does it improve voltage stability?

A10: Yes, it helps maintain stable voltage by providing accurate feedback.
