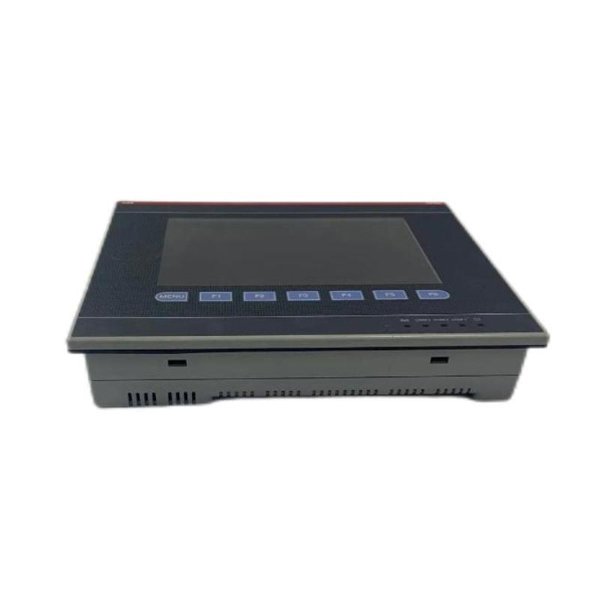

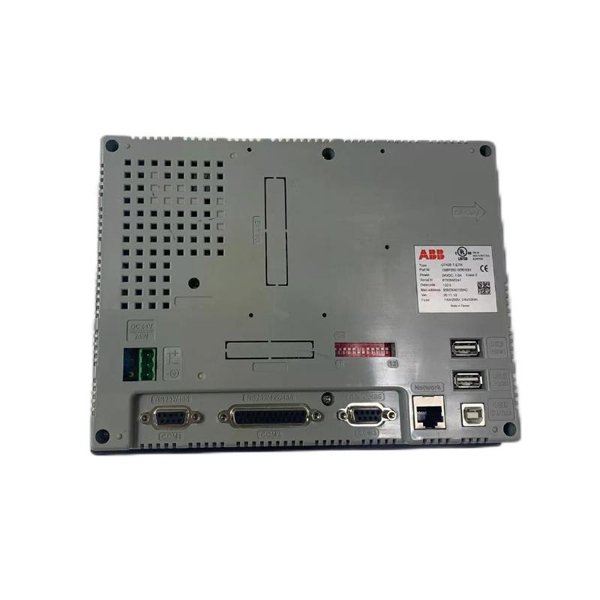

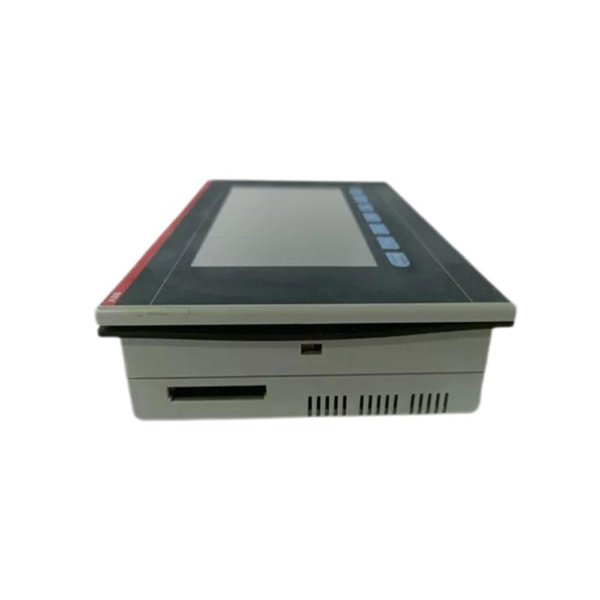

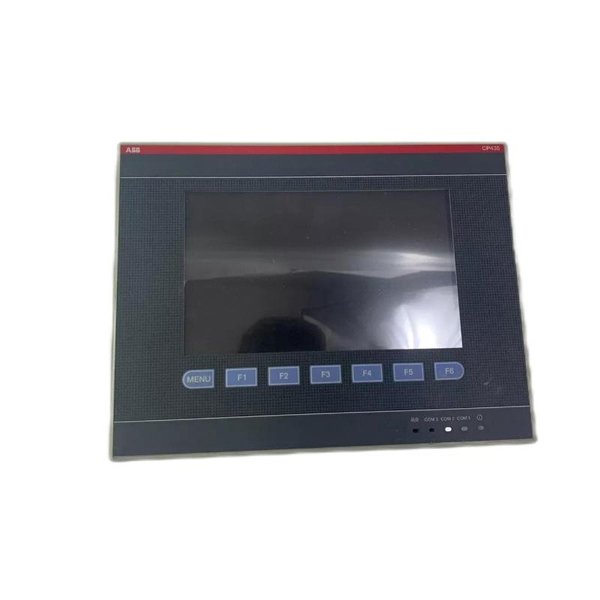

ABB CP435T-ETH 1SBP260197R1001 Touchscreen Panel

The ABB CP435T-ETH 1SBP260197R1001 is a versatile and high-performance Human-Machine Interface (HMI) touchscreen panel, designed for a wide range of industrial applications. This HMI panel serves as a bridge between operators and machines, offering easy and intuitive control and monitoring capabilities in automated environments. Equipped with a 4.3-inch touchscreen, the CP435T-ETH provides a clear and responsive interface that enhances user interaction and operational efficiency.

With Ethernet communication capabilities, the CP435T-ETH allows seamless integration into complex automation systems, offering fast data transfer and real-time monitoring. The compact design of this unit, coupled with its lightweight nature, makes it ideal for integration into a variety of control panels and industrial equipment.

Its robust build ensures reliable performance in demanding industrial environments, offering both durability and flexibility. This makes the ABB CP435T-ETH an essential tool in applications requiring consistent performance and precise control over processes.

Product Specifications

Product Applications

The ABB CP435T-ETH 1SBP260197R1001 touchscreen panel is highly versatile and finds application in several industries that rely on automated control and monitoring systems. Its compact design and feature-rich specifications make it an ideal solution for various operational needs:

• Manufacturing Control: The CP435T-ETH is perfect for controlling and monitoring automated production lines. It allows for smooth operations and ensures that any system failures or issues can be detected and resolved quickly.

• Process Control: Used extensively in industries such as chemical manufacturing, food processing, and pharmaceuticals, the CP435T-ETH enables precise control over industrial processes, enhancing overall efficiency.

• Building Automation: The panel is ideal for controlling building systems like HVAC, lighting, and security, optimizing energy usage and improving the efficiency of building operations.

• Energy Management: In energy-intensive industries, the CP435T-ETH can help monitor power consumption, optimize load management, and ensure energy efficiency across a range of applications.

• Robotics Control: In robotic systems, this touchscreen panel is an essential interface that allows operators to control robotic arms, conveyors, and other machinery with precision.

• Infrastructure Management: The CP435T-ETH can be used for managing large infrastructure systems such as water treatment plants, oil and gas facilities, and mining operations, ensuring smooth functioning of critical assets.

Product Advantages

• User-Friendly Interface: The 4.3-inch resistive touchscreen allows operators to interact with complex systems easily. Its responsive touch mechanism ensures quick navigation and system adjustments.

• Ethernet Communication: The built-in Ethernet connectivity offers high-speed communication for real-time monitoring and control, making it ideal for applications requiring immediate data transfer.

• Compact and Efficient: With dimensions of 47 x 176 x 231 mm and weighing only 0.86 kg, the CP435T-ETH has a compact and efficient design, ideal for installation in tight spaces or crowded control panels.

• Durability: Rated with an IP65 protection class, the CP435T-ETH is dust-tight and resistant to water ingress, making it suitable for use in harsh industrial environments.

• Wide Temperature Range: The device can operate in temperatures from -10°C to 60°C, providing flexibility and reliability even in extreme environments.

• Low Power Consumption: The CP435T-ETH has a low power consumption of 8 W, ensuring energy efficiency and reducing operating costs over time.

• Mounting Flexibility: The panel mount design makes it easy to integrate the touchscreen into existing control panels or automation systems, providing both convenience and space-saving advantages.

• Global Certifications: The product is certified with CE, UL, and RoHS, meeting global standards for quality, safety, and environmental compliance.

FAQ

1. What size is the screen on the ABB CP435T-ETH?

   • The screen size is 4.3 inches, offering a balance between visibility and compactness for industrial applications.

2. What type of touchscreen does the CP435T-ETH use?

   • It uses a resistive touchscreen, which offers high durability and accuracy in industrial settings.

3. What is the weight of the ABB CP435T-ETH?

   • The device weighs 0.86 kg, making it lightweight and easy to integrate into various systems.

4. What communication protocol does the CP435T-ETH support?

   • The CP435T-ETH supports Ethernet (ETH) communication for seamless data transfer and integration with other devices.

5. What is the operating temperature range of the panel?

   • The operating temperature range is from -10°C to 60°C, which allows it to perform in various environmental conditions.

6. Does the CP435T-ETH have any protection from environmental factors?

   • Yes, the panel has an IP65 protection rating, making it resistant to dust and water ingress.

7. What is the power consumption of the CP435T-ETH?

   • The power consumption is 8 W, ensuring it is energy-efficient and cost-effective.

8. What is the screen resolution of the CP435T-ETH?

   • The screen resolution is 480 x 272 pixels, providing a clear and readable display.

9. Can the ABB CP435T-ETH be used in outdoor environments?

   • Although the panel has an IP65 rating, it is primarily designed for indoor use. Proper installation is necessary to prevent exposure to extreme weather conditions.

10. What certifications does the ABB CP435T-ETH have?

    • The CP435T-ETH is certified with CE, UL, and RoHS, ensuring compliance with international safety and environmental standards.
