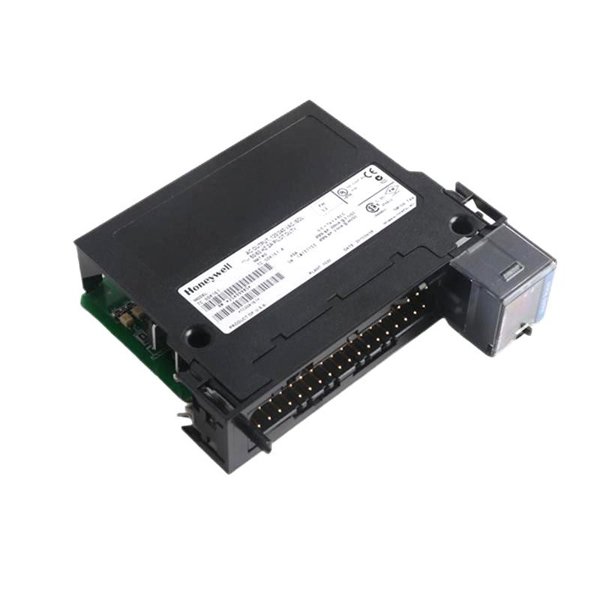

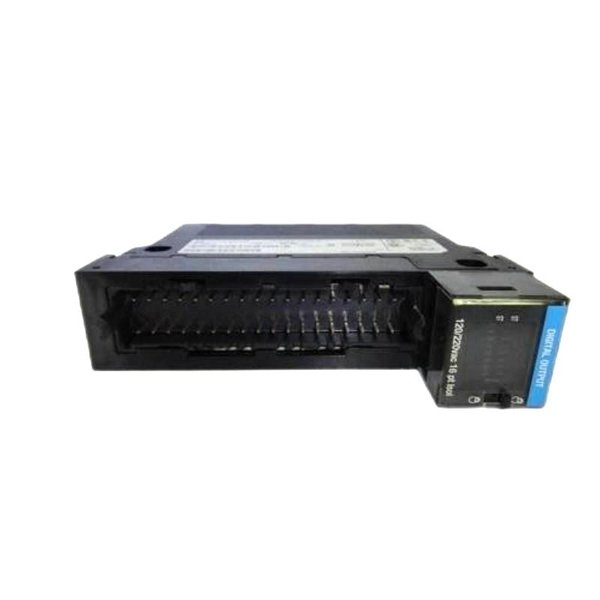

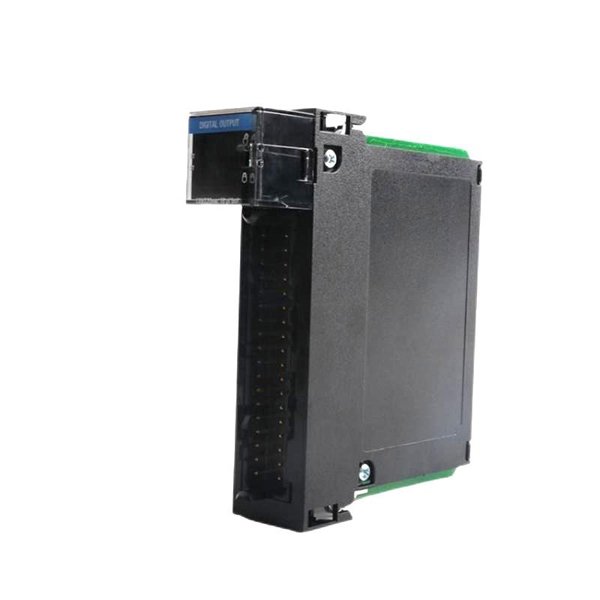

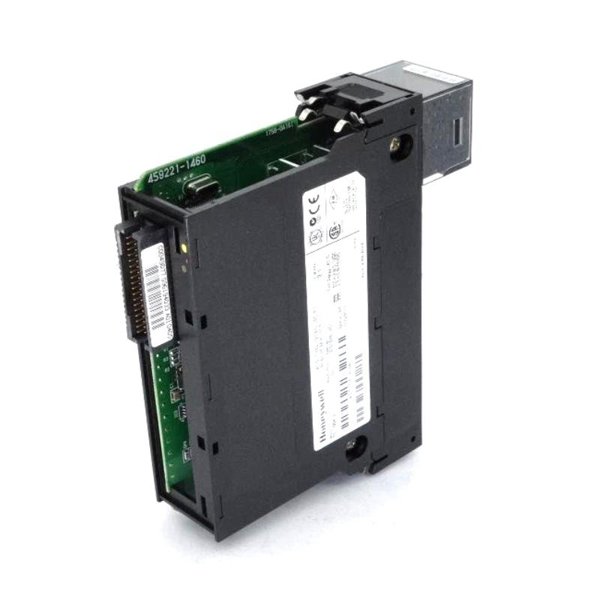

Honeywell TC-ODK161 Experion LS AC Digital Output Module
Manufacturer:Honeywell
Product Number:TC-ODK161
Product Type:Experion LS AC Digital Output Module
Origin:USA
Dimensions:100 × 120 × 30 mm
Weight:0.25 kg
Views:66
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell TC-ODK161 is a 16-channel isolated AC digital output module designed for use within the Experion LS control system. It provides reliable switching of 120/220 VAC loads and ensures electrical isolation between channels and the system bus, enhancing protection and signal integrity in industrial control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | TC-ODK161 |
| Output Type | AC Digital Output |
| Number of Channels | 16 isolated channels |
| Voltage Rating | 120/220 VAC |
| Output Current per Channel | Up to 2 A per channel |
| Isolation | Channel-to-channel and channel-to-bus |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | DIN rail or chassis |
| Dimensions (W×H×D) | 100 × 120 × 30 mm |
| Weight | 0.25 kg |
Applications
-
Distributed process control systems
-
Batch processing and sequential control
-
Factory automation and building management systems
-
Motor starters and industrial lighting control
Product Advantages
Channel Isolation: Each output is electrically isolated, reducing fault propagation.
High Voltage Tolerance: Supports both 120 VAC and 220 VAC applications.
Compact Design: Saves space in control cabinets.
Reliable Switching: Optimized for long operational life in harsh industrial environments.
Experion LS Compatibility: Seamless integration into Honeywell’s Experion LS system.
Frequently Asked Questions (FAQ)
Q1: What types of loads can the TC-ODK161 drive?
A1: It can drive resistive and inductive AC loads such as solenoids, contactors, and indicators.
Q2: Are the outputs isolated?
A2: Yes, all 16 outputs are individually isolated from each other and the system bus.
Q3: Is the module compatible with 220 VAC systems?
A3: Yes, it supports both 120 VAC and 220 VAC operation.
Q4: Can the module be mounted on a DIN rail?
A4: Yes, it supports DIN rail as well as chassis mounting.
Q5: What is the maximum current per channel?
A5: Each output can deliver up to 2 amps.
Q6: Does this module support diagnostics?
A6: No, the TC-ODK161 does not include diagnostic feedback channels.
Q7: Can the module operate in high humidity environments?
A7: Yes, it supports up to 95% non-condensing humidity.
Q8: What control systems is it designed for?
A8: It is designed for use in Honeywell’s Experion LS control platform.
Q9: Are there any coated versions available?
A9: Yes, the TK-ODK161 is the conformally coated variant for harsh environments.
Q10: What is the physical size of the module?
A10: It measures 100 × 120 × 30 mm and weighs 0.25 kg.
