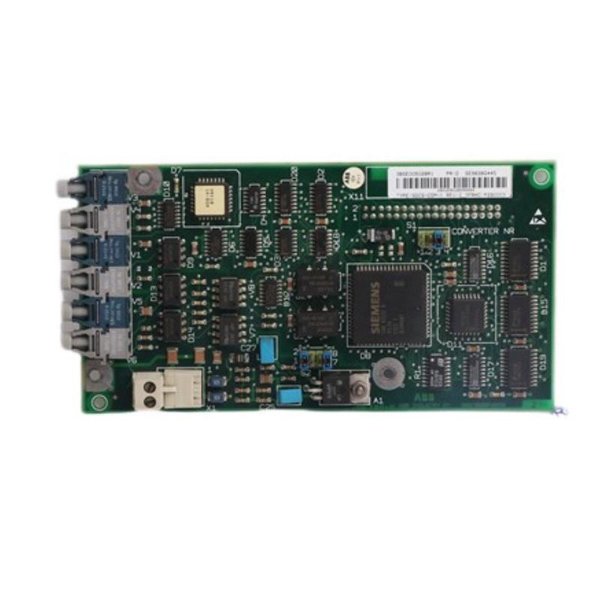

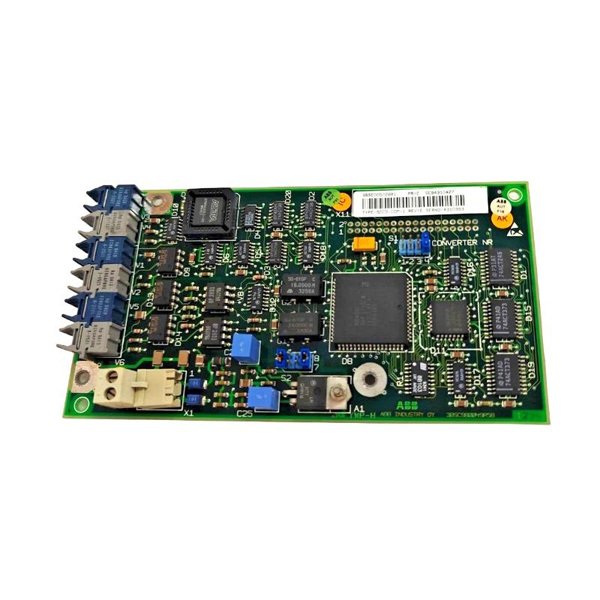

ABB SDCS-COM-1 3BSE005028R1 Communication Board

The ABB SDCS-COM-1 3BSE005028R1 is a communication board designed for ABB DCS thyristor power converters used in DC drive systems. It enables reliable data exchange between the converter control board and external devices such as PCs, PLCs, or control panels via serial or optical communication interfaces.

Technical Specifications

Applications

• Used in ABB DCS/DC drive systems for industrial automation

• Enables communication with PLCs, HMIs, or monitoring tools

• Suitable for motor control and process control in manufacturing plants

Advantages

• Compact and lightweight for easy integration

• Reliable and proven communication solution for ABB drives

• Compatible with a wide range of ABB DC drive systems

• Supports both serial and optical links

• Improves system diagnostics and monitoring capability

FAQ

Q1: What is the function of the SDCS-COM-1 board?

A1: It serves as a communication interface between ABB DC drives and external devices.

Q2: Which ABB systems support the SDCS-COM-1?

A2: It is compatible with DCS500, DCS500B, DCP500, and DCP500B systems.

Q3: Does it support optical communication?

A3: Yes, it supports optical fiber links as well as serial communication.

Q4: How is the SDCS-COM-1 powered?

A4: It is powered directly by the converter it is installed in.

Q5: What is the physical size of the board?

A5: The board measures 153.6 × 83.5 × 20 mm.

Q6: Can it be used with PLCs?

A6: Yes, it allows integration with programmable logic controllers.

Q7: Is the SDCS-COM-1 hot-swappable?

A7: No, the drive must be powered down before replacing the board.

Q8: What is the weight of the board?

A8: The weight is approximately 0.24 kg.

Q9: Does it improve system monitoring?

A9: Yes, it enables external monitoring and diagnostics of the drive.

Q10: Can it replace the SDCS-COM-5 board?

A10: It can be used where SDCS-COM-5 is not specifically required; however, SDCS-COM-5 is recommended for newer systems.
