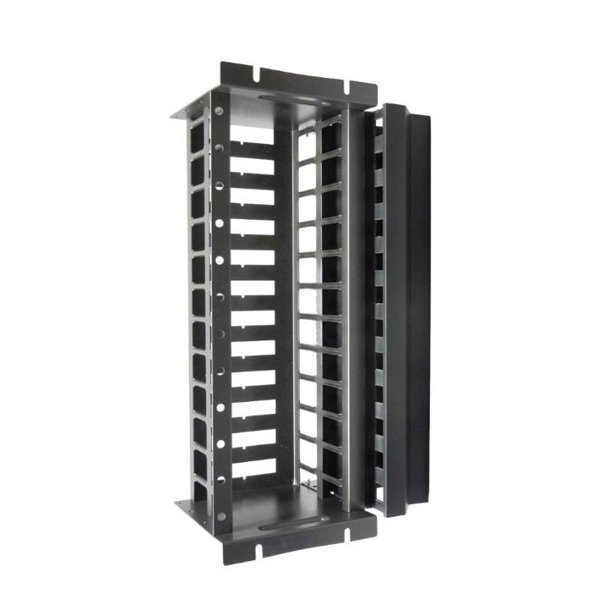

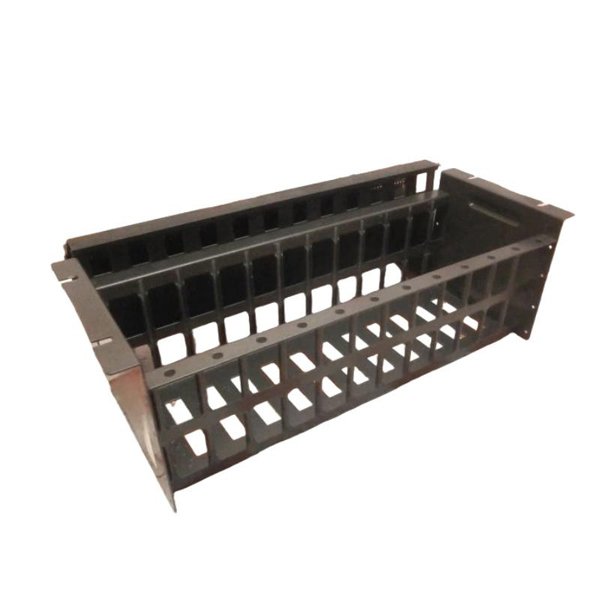

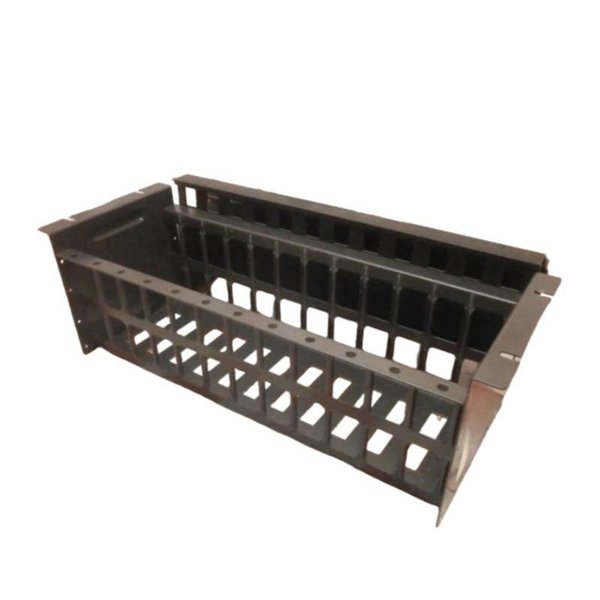

ABB Bailey NTMU02 Termination Mounting Unit

The ABB Bailey NTMU02 is a dedicated Termination Mounting Unit designed to serve as the foundation for mounting and organizing termination panels within the Bailey INFI 90 and Symphony distributed control system (DCS) environments. As part of the system’s field wiring infrastructure, the NTMU02 provides structured physical support and connectivity for I/O wiring and termination hardware.

This unit allows for clean and reliable signal transition from field devices—such as sensors, actuators, and limit switches—to controller input/output modules. Its rugged, panel-ready construction and compatibility with various ABB Bailey termination units make it an essential component in maintaining safe, organized, and efficient control system infrastructure.

Technical Specifications

Applications

The ABB NTMU02 is widely utilized across various industries that rely on high-density, highly reliable control systems. Its role as a termination mounting infrastructure makes it indispensable in:

• Power Plants: Enables the structured and safe installation of termination panels for turbine, boiler, and auxiliary control systems.

• Petrochemical Facilities: Organizes control wiring for process loops involving valves, sensors, and relay interfaces.

• Oil & Gas Processing Units: Facilitates compact and accessible wiring for control and safety systems.

• Water and Wastewater Treatment: Provides secure termination infrastructure for sensor feedback and pump/motor control signals.

• Industrial Automation Systems: Used in material handling and production line controls where centralized wiring is crucial.

• Mining and Metallurgical Plants: Ensures robust termination and protection of field signal wiring in harsh environments.

Product Advantages

• Universal Termination Support

  Designed to accommodate multiple ABB Bailey termination units, offering flexibility in system design and expansion.

• Efficient Cable Management

  Built-in features for cable routing, labeling, and strain relief simplify installation and maintenance tasks.

• Durable Industrial Construction

  Manufactured from heavy-duty materials, the NTMU02 withstands vibration, heat, and long-term wear common in industrial environments.

• Easy Panel Integration

  Mounts directly onto standard back panels or control cabinet frames, minimizing installation time and hardware requirements.

• Improved Safety and Cleanliness

  Organizing terminations within the NTMU02 minimizes wiring mess and reduces the chance of connection errors or electrical shorts.

• Extended System Lifespan

  By enabling proper wire support and strain relief, it helps prolong the lifespan of terminations and wiring harnesses.

• Designed for Legacy and Modern Systems

  Fully backward compatible with legacy INFI 90 equipment, while also suitable for use in hybrid or modernized control architectures.

Frequently Asked Questions (FAQ)

1. What is the main function of the NTMU02?

   It provides a physical mounting platform for termination panels used in ABB Bailey DCS systems, ensuring organized and reliable field wiring.

2. Which termination units are supported by NTMU02?

   It is compatible with NTMP01, NTLS01, NTCL01, NTCF01, and other standard Bailey termination modules.

3. Does it include any wiring or circuitry?

   No, it is a passive mechanical mounting unit and does not contain electrical components or signal processing circuits.

4. Is the NTMU02 required for every termination unit?

   While not mandatory, it is highly recommended for structured, secure, and standards-compliant installation of termination panels.

5. What material is the unit made of?

   It is typically built from powder-coated steel or aluminum, designed to withstand industrial wear and provide structural support.

6. Can the NTMU02 be used in outdoor environments?

   It should only be used indoors or within sealed control enclosures due to its IP20 environmental rating.

7. How is cable management handled in this unit?

   It features pre-cut slots and provisions for internal wiring ducts and strain relief fixtures to maintain order and safety.

8. Is the NTMU02 suitable for retrofit installations?

   Yes, it is often used in retrofit and upgrade projects where old termination systems are being modernized or restructured.

9. Does ABB provide a specific cabinet or rack for the NTMU02?

   It can be mounted into most standard control cabinets or ABB racks that support Bailey DCS components.

10. How many termination units can be mounted on a single NTMU02?

    This depends on the size and layout of each termination unit, but typically 2–4 panels can be supported per mounting unit.
