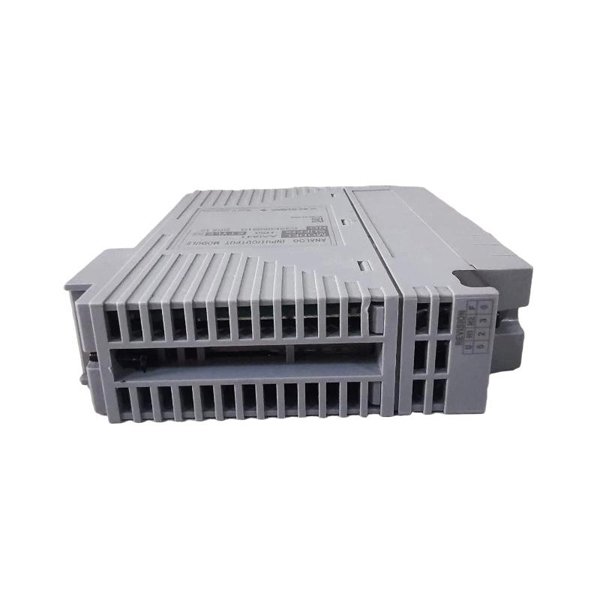

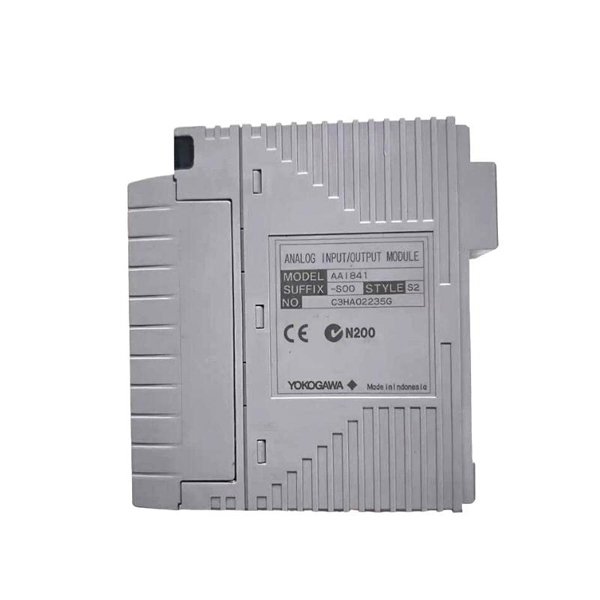

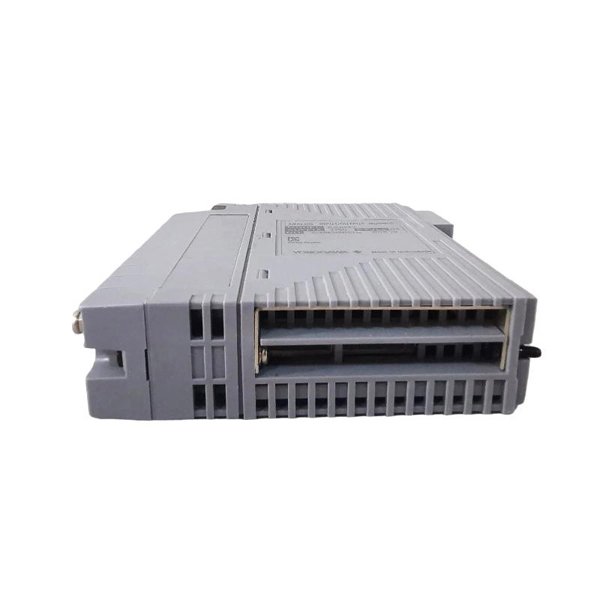

Yokogawa AAI841-S50/K4A00 Analog I/O Module

The Yokogawa AAI841-S50/K4A00 Analog I/O Module is a sophisticated component designed for precise analog signal acquisition and control within industrial automation environments. As part of Yokogawa’s renowned distributed control system (DCS) portfolio, this module provides reliable and high-fidelity conversion between analog field signals and digital system data. Its dual functionality, supporting both analog input and output channels, allows it to effectively manage complex process variables in critical industrial operations.

The AAI841-S50/K4A00 is engineered for enhanced accuracy and stability, tailored to meet the stringent requirements of industries such as chemical processing, power generation, and oil refining. Its robust construction ensures consistent performance under electrical noise, temperature extremes, and humidity, while its compatibility with Yokogawa’s CENTUM VP and other control platforms enables seamless integration and operational efficiency.

Product Specifications

Applications

The AAI841-S50/K4A00 module finds use across a wide range of industries and processes requiring precise analog measurement and control. Typical applications include:

• Chemical and petrochemical plants for pressure, temperature, and flow measurement and control

• Power generation plants for turbine and boiler control instrumentation

• Oil and gas refineries for process monitoring and control

• Water and wastewater treatment plants for pump and valve control

• Food and beverage manufacturing for process consistency and quality assurance

• Pharmaceutical manufacturing where precise process parameters must be maintained

Advantages

• High Precision: Offers high accuracy of ±0.05% full scale with stable long-term measurement performance.

• Rapid Response: Response time under 50 milliseconds suits fast control loops and dynamic processes.

• Industrial-Grade Robustness: Resilient to noise, temperature variations, and humidity typical of industrial environments.

• Versatile Signal Support: Compatible with various analog input and output signals, enhancing adaptability.

• Comprehensive Isolation: Channel-to-channel and channel-to-ground isolation improves signal integrity and safety.

• Compact Design: Fits standard DIN rail or rack mounts, facilitating space-saving installation.

• Seamless System Integration: Designed to integrate smoothly with Yokogawa’s DCS, simplifying configuration and maintenance.

Frequently Asked Questions (FAQ)

1. What input signal types can the module handle?

   It accepts ±10 V voltage inputs, 0-20 mA, and 4-20 mA current inputs.

2. Can the output be configured for different current ranges?

   Yes, the output can be set for either 0-20 mA or 4-20 mA.

3. What level of accuracy does the module provide?

   It maintains ±0.05% accuracy of full scale under typical operating conditions.

4. Is electrical isolation provided between channels?

   Yes, each channel is electrically isolated from others and from the chassis ground.

5. What is the typical response time for signal processing?

   The response time is typically less than 50 milliseconds.

6. What power requirements does the module have?

   It operates on a nominal 24 V DC power supply.

7. Is the module suitable for high-humidity environments?

   Yes, it is rated to operate reliably up to 95% relative humidity without condensation.

8. Does the module integrate with Yokogawa’s DCS communication protocols?

   Yes, it is fully compatible with Yokogawa DCS communication standards.

9. Can the module support simultaneous analog input and output?

   Yes, it supports mixed analog input and output across four channels.

10. What maintenance actions are recommended to ensure optimal performance?

    Periodic calibration, terminal cleaning, and verification of signal accuracy are advised.
