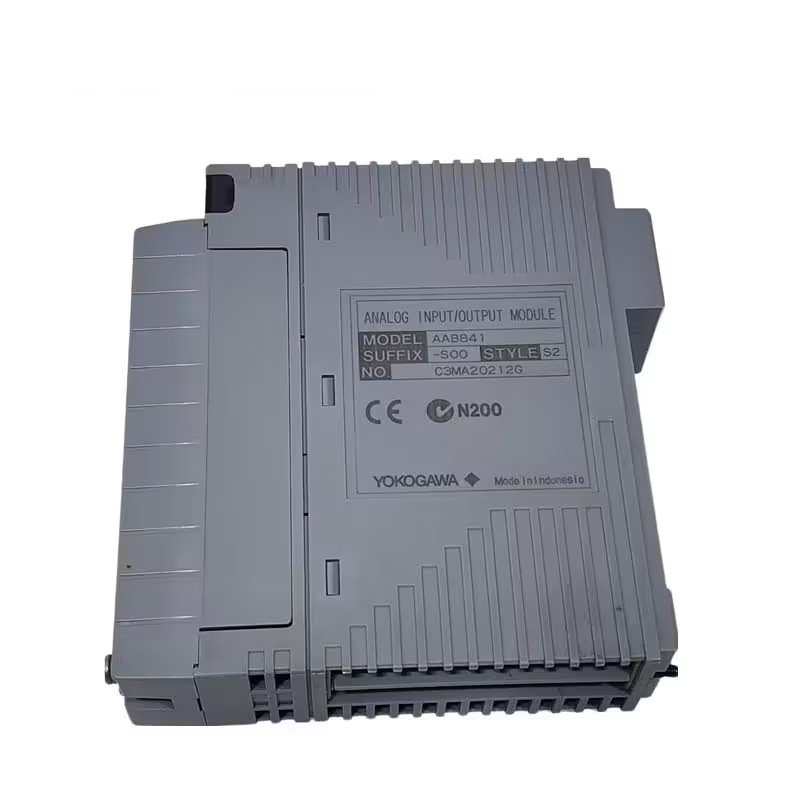

The Yokogawa AAB841-S00 is an analog input/output (I/O) module designed for the Yokogawa CENTUM VP Distributed Control System (DCS). It enables seamless integration of analog signals into process control applications. With 8 input channels and 8 output channels, this module supports various input and output ranges, including 1-5V (input) and 4-20mA (output), providing flexibility for diverse industrial applications. Its non-isolated design makes it suitable for scenarios where electrical isolation is not required.

Technical Specifications

• Model Type:
  • Analog I/O Module
• Channels:
  • 8 Input Channels
  • 8 Output Channels
• Signal Ranges:
  • Input: 1-5V
  • Output: 4-20mA
• Isolation:
  • Non-Isolated (no electrical isolation between input and output)
• Compatibility:
  • Compatible with Yokogawa Centum VP DCS
• Operating Conditions:
  • Temperature Range: -40°C to +70°C
  • Humidity: 5% to 95% (non-condensing)
• Dimensions:
  • Size: 5.0″ x 1.0″ x 5.0″ (12.7 cm x 2.5 cm x 12.7 cm)
• Weight:
  • 0.2 kg (8.0 oz)
