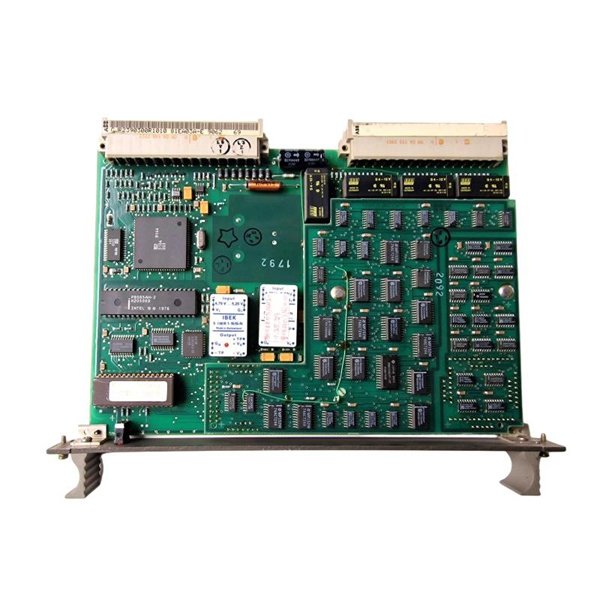

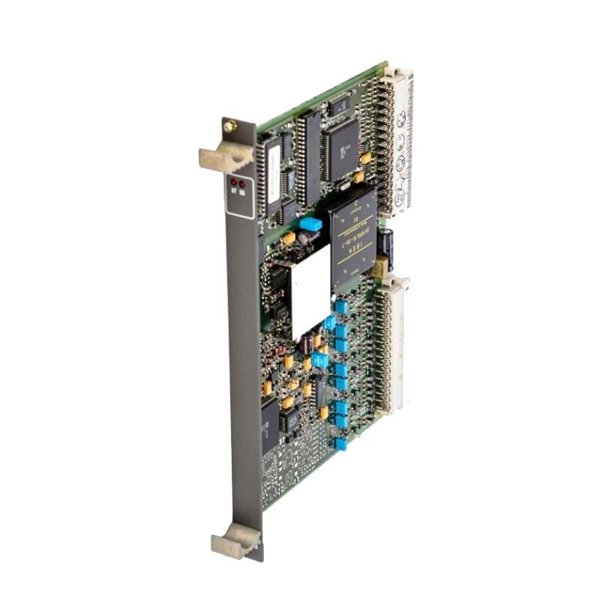

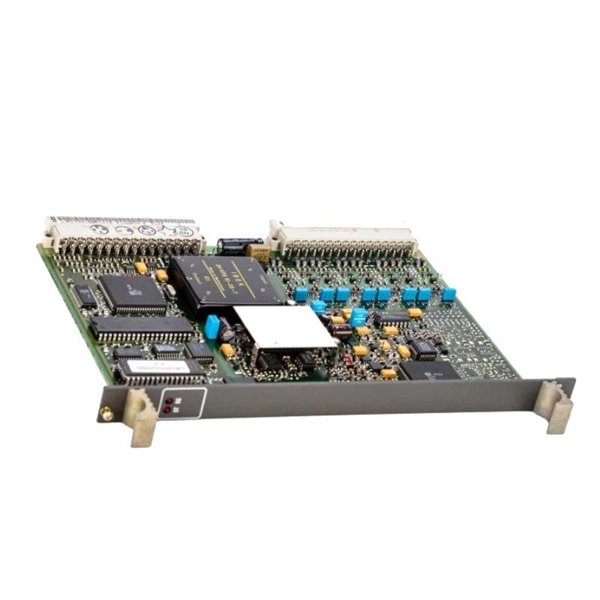

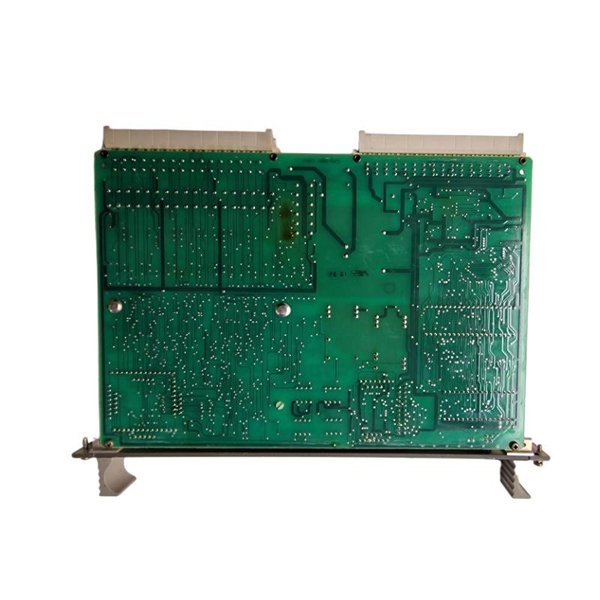

ABB 81AA03 GJR2394100R1210 Analog Output Module
Manufacturer:ABB
Product Number:81AA03 GJR2394100R1210
Product Type:Analog Output Module
Origin:Sweden
Dimensions:198 x 261 x 20 mm
Weight:0.55 kg
Views:25
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 81AA03 (GJR2394100R1210) Analog Output Module is a critical component designed for precise control in automated systems. Engineered to provide reliable and accurate analog signals, this module enables seamless communication between controllers and field devices such as actuators, valves, and control valves. The module’s robust construction and advanced design ensure stable performance even in harsh industrial environments.
This analog output module supports various output ranges, accommodating diverse industrial applications that require modulation of processes with high precision. Its compatibility with ABB’s Distributed Control Systems (DCS) and Programmable Logic Controllers (PLCs) makes it a versatile choice for process industries, manufacturing automation, and power plants.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | Analog Output Module |
| Model Number | 81AA03 |
| Ordering Code | GJR2394100R1210 |
| Number of Output Channels | 4 |
| Output Signal Type | 4-20 mA, 0-20 mA, 0-10 V configurable |
| Output Resolution | 16-bit |
| Load Resistance | 500 Ω max (for current output) |
| Update Rate | 10 ms |
| Accuracy | ±0.1% of full scale |
| Isolation Voltage | 1500 V AC (input/output isolation) |
| Power Supply Voltage | 24 V DC ± 10% |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 198 x 261 x 20 mm |
| Weight | 0.55 kg |
| Mounting Type | DIN Rail or Panel Mount |
| Compliance | CE, UL, RoHS |
Product Applications
The ABB 81AA03 Analog Output Module is suitable for use in:
Process Control Systems in chemical, pharmaceutical, and petrochemical industries
Manufacturing Automation for controlling speed, temperature, and pressure of machinery
Power Plants for precise regulation of turbines and generators
Water and Wastewater Treatment for actuator control on valves and pumps
Building Automation including HVAC system control
Oil and Gas Industry for flow control and safety systems
Product Advantages
High Accuracy and Stability: Ensures precise analog signal output with minimal drift.
Multiple Output Configurations: Supports current and voltage outputs adaptable to diverse system needs.
Robust Electrical Isolation: Protects control systems from electrical noise and interference.
Compact and Modular Design: Saves space in control panels and simplifies system upgrades.
Wide Operating Temperature Range: Suitable for demanding industrial environments.
Fast Update Rate: Enables quick response and control adjustments.
Easy Integration: Fully compatible with ABB DCS and PLC systems.
Built-in Diagnostics: Allows for proactive maintenance and troubleshooting.
Low Power Consumption: Energy-efficient design reduces operational costs.
Compliance with Industry Standards: Ensures safety, reliability, and regulatory adherence.
Frequently Asked Questions (FAQ)
1. What types of analog outputs does the ABB 81AA03 module support?
It supports both current outputs (4-20 mA, 0-20 mA) and voltage output (0-10 V), configurable per application.
2. How many output channels are available on this module?
There are 4 output channels available for independent control.
3. What is the maximum load resistance for current output?
The maximum load resistance is 500 ohms for current outputs.
4. Can this module operate in harsh environments?
Yes, it operates reliably within a temperature range of -20°C to +60°C and 5% to 95% humidity.
5. How precise is the output signal?
The module provides an accuracy of ±0.1% of full scale, ensuring reliable process control.
6. Is the module easy to install in existing systems?
Yes, it supports DIN rail or panel mounting and integrates smoothly with ABB automation systems.
7. What kind of electrical isolation does the module have?
It offers 1500 V AC isolation between input and output to safeguard the system.
8. How fast does the module update output signals?
It has an update rate of 10 milliseconds, supporting real-time control requirements.
9. What power supply voltage does this module require?
The module operates on a 24 V DC power supply with ±10% tolerance.
10. What should I do if the output signals seem inconsistent?
Check the wiring connections and ensure the load is within specifications. If the problem persists, consult ABB support or review the troubleshooting section of the manual.
