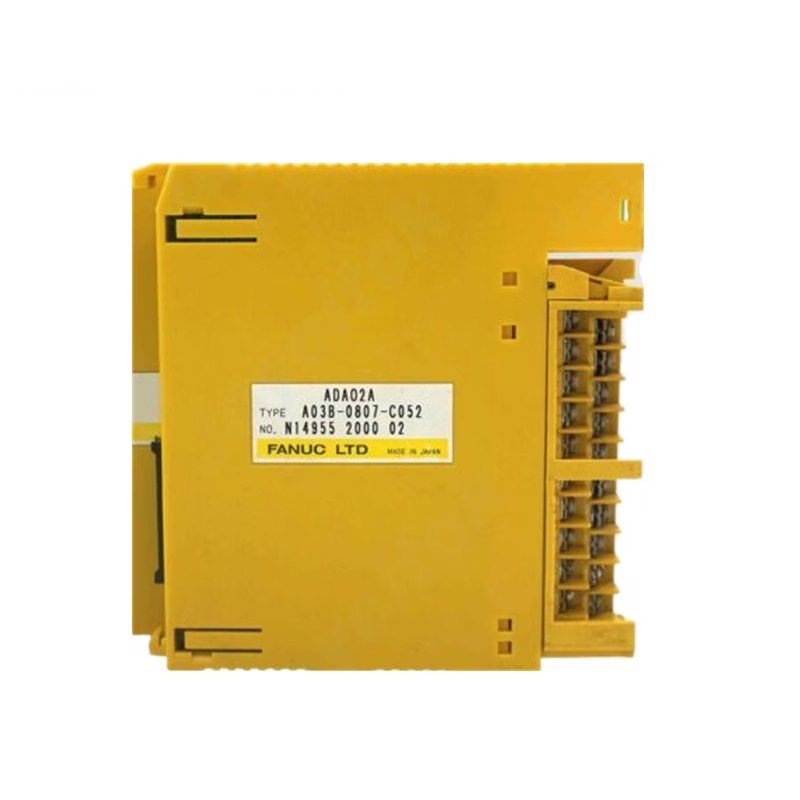

GE Fanuc A03B-0807-C052 Analog Output Module

The GE Fanuc A03B-0807-C052 is a high-performance analog output module designed for use in the GE Fanuc Series 90-30 programmable logic controller (PLC) system. It features two output channels, which can be configured for either voltage or current outputs. With its high accuracy and reliable isolation, the module is ideal for controlling various industrial systems such as AC drives, valves, actuators, and data acquisition applications.

Technical Specifications

• Part Number: A03B-0807-C052
• Manufacturer: GE Fanuc
• Product Type: Analog Output Module
• Number of Output Channels: 2
• Output Type: Analog voltage or current
• Voltage Output Range: ±10VDC
• Current Output Range: 0-20mA or 4-20mA
• Resolution: 12 bits
• Accuracy: ±0.1% of full scale
• Isolation: 500VAC
• Power Requirements: 5VDC, 100mA
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -20°C to 60°C
• Dimensions: 2.0 in x 6.0 in x 6.0 in (5.1 cm x 15.2 cm x 15.2 cm)
• Weight: 0.3 kg (0 lbs 12.0 oz)
