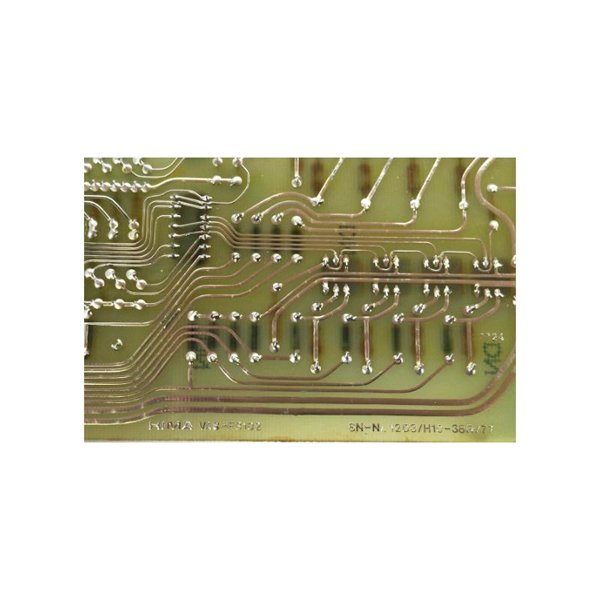

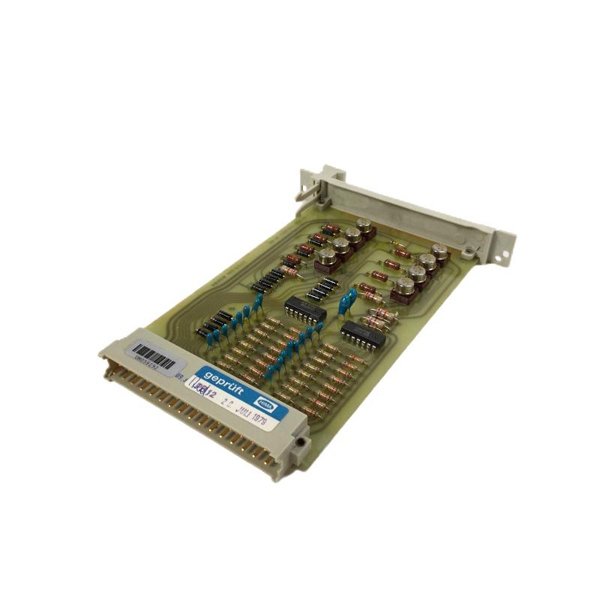

Hima F3102 Buffer Amplifier Module

The HIMA F3102 Buffer Amplifier Module is an integral component in the HIMA safety system, designed to provide signal amplification and buffering for analog signals in industrial applications. This module plays a critical role in ensuring that analog signals are transmitted accurately from field devices to the control system, without interference or degradation. It is used in systems that require high-precision signal processing for safety-critical environments.

The F3102 Buffer Amplifier is particularly suitable for applications where signals need to be amplified or buffered before being processed by the control system. It helps in maintaining the integrity of the signal by isolating and providing the required amplification levels. Its high reliability and flexibility make it ideal for use in safety-critical applications across various industries, including oil & gas, chemical, power generation, and manufacturing.

Product Specifications

Applications

The HIMA F3102 Buffer Amplifier Module is designed to meet the needs of industrial systems that require signal amplification and buffering. It is primarily used in safety instrumented systems (SIS) and other control systems where the accurate transmission of signals from field devices to the control system is essential. The main applications include:

• Process Control: Used in industries such as chemical processing and oil & gas to buffer and amplify analog signals from process sensors, ensuring stable and accurate data transmission.
• Safety Instrumented Systems (SIS): Essential for ensuring that the analog signals used in safety-critical systems, such as pressure, temperature, and flow monitoring, are reliable and noise-free.
• Automation Systems: Used to buffer and amplify signals in automated systems, particularly where signals need to be transmitted over long distances with minimal degradation.
• Power Generation: Monitors and buffers data from field sensors in power plants to provide real-time data to control systems.
• Machine Monitoring: In applications where machinery needs to be monitored for parameters such as vibration, temperature, or pressure, the F3102 ensures the integrity of the transmitted data.
• Water Treatment: Used in water and wastewater plants to ensure accurate sensor data is transmitted for automated control of pumps, valves, and other machinery.

Advantages

• High Signal Integrity: The F3102 Buffer Amplifier ensures that signals remain accurate and undistorted during transmission, even over long distances, minimizing the risk of failure due to signal degradation.
• Wide Compatibility: The module supports both 4-20 mA and 0-10 V analog signals, making it compatible with a wide range of field devices.
• Fast Response Time: With a response time of less than 5 ms, the F3102 ensures real-time processing of input signals, making it ideal for high-speed applications.
• Robust Design: The F3102 is built to withstand harsh industrial environments, with an IP20 protection rating, ensuring its reliability and durability.
• Compact and Efficient: Designed for easy integration into control systems with its DIN Rail mounting and compact size, making it a space-efficient solution.
• Certified for Hazardous Areas: The F3102 is certified for use in ATEX environments, ensuring its safe operation in hazardous locations such as chemical plants and oil & gas fields.
• Fault-Tolerant: The module is part of the HIMA TriplEx™ safety system, providing a high level of fault tolerance for safety-critical applications.
