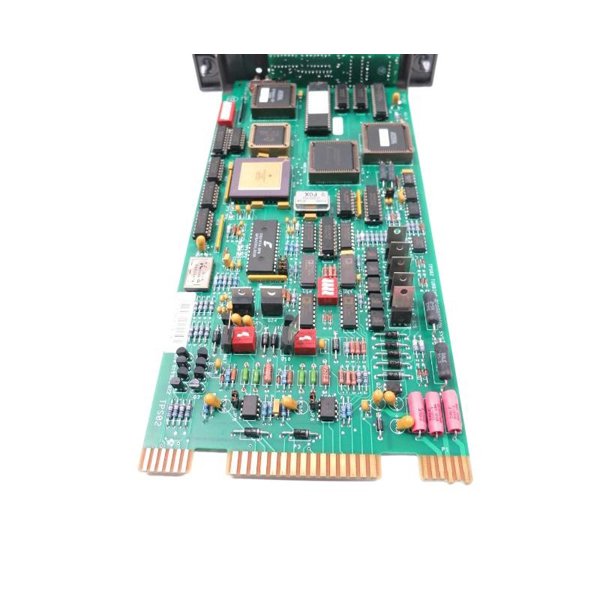

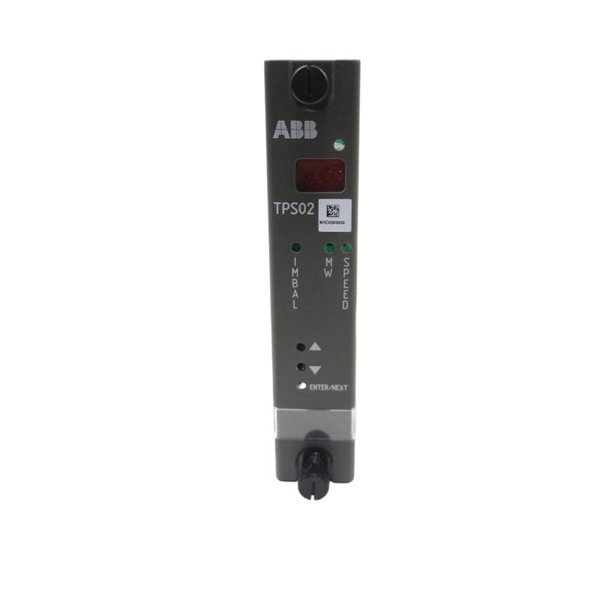

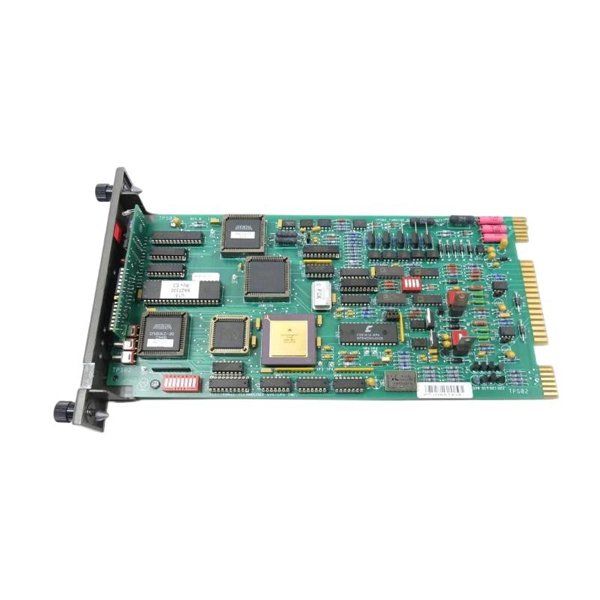

ABB Bailey SPTPS02 Turbine Protection Module

The ABB Bailey SPTPS02 Turbine Protection Module is a critical component designed to provide advanced protection for industrial turbines, ensuring their safe and efficient operation. This module is part of ABB’s Bailey Series of control and protection systems, which are trusted for their reliability in demanding industrial environments. The SPTPS02 is specifically engineered to monitor the performance of turbines, detecting anomalies and triggering protective measures to avoid damage due to malfunction or abnormal operating conditions.

By continuously monitoring vital turbine parameters such as speed, vibration, and temperature, the SPTPS02 ensures early detection of potential issues. It provides real-time protection and safeguards turbines in industries such as power generation, oil & gas, and chemical processing.

The SPTPS02 offers high adaptability for integration with existing control systems and automation networks, providing a robust and cost-effective solution for turbine protection. The module ensures that any irregularities in turbine behavior are detected early, allowing for timely intervention and minimizing operational downtime.

Product Specifications

Applications

The ABB Bailey SPTPS02 Turbine Protection Module is designed for a wide range of industrial applications where turbines are used, including:

1. Power Generation: The module ensures the safe operation of turbines in power plants, preventing damage to critical machinery due to unforeseen events such as abnormal vibrations, speed fluctuations, or overheating.

2. Oil & Gas: Used in offshore platforms and refineries, it ensures the protection of turbines that drive pumps and compressors, reducing the risk of downtime and operational failures.

3. Chemical Processing: In chemical plants, the SPTPS02 protects turbines that power reactors and other crucial equipment, ensuring smooth and continuous production processes.

4. HVAC Systems: The module monitors and protects turbines used in large HVAC systems, maintaining consistent performance and energy efficiency.

5. Water Treatment Plants: The SPTPS02 ensures the protection of turbines used in water pumping stations and treatment facilities, allowing for reliable operation in critical infrastructure.

6. Steel and Manufacturing: It is used in manufacturing facilities where turbines are integral to the production process, such as powering large machinery and providing mechanical drive for other systems.

Product Advantages

1. Advanced Turbine Protection: The SPTPS02 provides real-time protection for turbines, preventing damage caused by abnormal operating conditions.

2. Continuous Monitoring: It offers continuous monitoring of critical turbine parameters such as speed, vibration, and temperature, ensuring early detection of issues.

3. High Compatibility: The module is designed for easy integration with existing control systems and industrial networks, ensuring smooth communication and data transfer.

4. High Durability: Built to withstand harsh industrial environments, the SPTPS02 is designed for long-term durability and minimal maintenance.

5. Compact and Lightweight: With dimensions of 356 x 25 x 381 mm and a weight of 0.7 kg, the module is easy to install in tight spaces and panel systems.

6. Real-Time Data Processing: The module provides real-time feedback on turbine performance, allowing operators to make quick decisions to prevent turbine failure.

7. Energy Efficient: The system operates on a 24V DC power supply, making it energy-efficient and cost-effective.

8. Versatile Applications: Suitable for use across multiple industries, the SPTPS02 can be adapted to protect turbines in different environments, from power plants to manufacturing facilities.

9. Reduced Downtime: By detecting issues early and triggering protective actions, the SPTPS02 minimizes turbine downtime and reduces the risk of expensive repairs.

10. International Certification: The module meets global standards, including CE and UL certifications, ensuring reliability and compliance for use in international markets.

FAQs

1. What are the dimensions of the ABB SPTPS02 Turbine Protection Module?

   The module has dimensions of 356 x 25 x 381 mm.

2. How much does the SPTPS02 weigh?

   It weighs 0.7 kg.

3. What turbine parameters does the SPTPS02 monitor?

   The module monitors parameters such as speed, vibration, and temperature.

4. What is the power supply requirement for the SPTPS02?

   The module operates on a 24V DC power supply.

5. What industries can use the SPTPS02 Turbine Protection Module?

   It is used in industries such as power generation, oil & gas, chemical processing, HVAC systems, and manufacturing.

6. What communication protocols are supported by the SPTPS02?

   The module supports Modbus, Profibus, and Ethernet/IP communication protocols.

7. Is the SPTPS02 compatible with existing control systems?

   Yes, it is designed for easy integration with existing PLC and DCS systems.

8. Can the SPTPS02 be used in high-temperature environments?

   Yes, it can operate within a temperature range of -10°C to +60°C, making it suitable for a variety of industrial conditions.

9. What is the environmental protection rating of the SPTPS02?

   The module has an IP20 rating, providing protection against dust and small particles.

10. Does the SPTPS02 help reduce turbine downtime?

    Yes, by detecting issues early, the module minimizes turbine downtime and helps prevent costly repairs.
