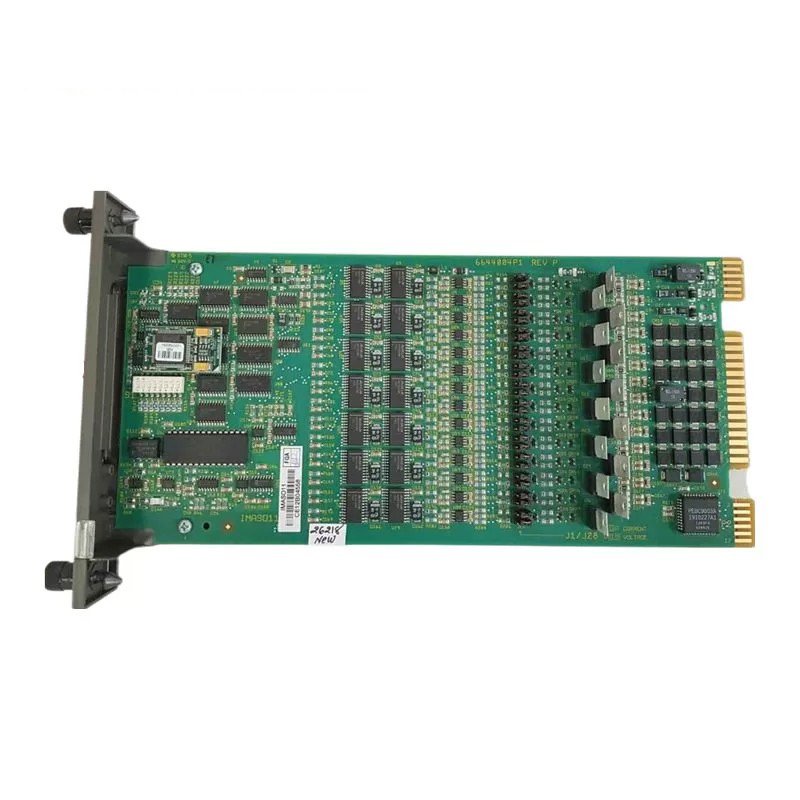

ABB IMASO11 Analog Output Module

The ABB IMASO11 is a compact analog output module designed for industrial automation. It accurately converts digital signals into proportional analog outputs, enabling precise control of various processes.

Key Features and Specifications

• Number of Channels: The module provides 8 independent output channels.
• Output Range: You can configure it for either 0-10V or 4-20mA output.
• Accuracy: The module ensures reliable control with a high precision of ±0.1% of reading.
• Resolution: It delivers fine-tuned output control with 12-bit resolution.
• Data Transfer Rate: It supports rapid data communication with speeds up to 2.5 Mbps.
• Isolation: The module offers robust 1500 VDC isolation between channels and power supply, enhancing safety.
• Power Supply: It operates on a standard 24 VDC power supply.

Applications

The IMASO11 excels in a wide range of industrial applications, such as:

• Process control
• Machine control
• Test and measurement systems

Technical Specifications

• Input Voltage: The module typically operates at 24 VDC (confirm exact range from the datasheet).
• Output Options: You can configure the output for voltage (0-10V) or current (4-20mA).
• High Resolution: It delivers precise control with fine-tuned output.
• Accuracy: The module maintains process stability and reliability.
• Universal Input Compatibility: It accepts a broad range of digital input signals.
• Flexible Output Options: The module adapts to various application requirements.
• Compact Design: It optimizes space utilization in control cabinets.
• Reliable Performance: The module proves its performance in demanding industrial environments.
