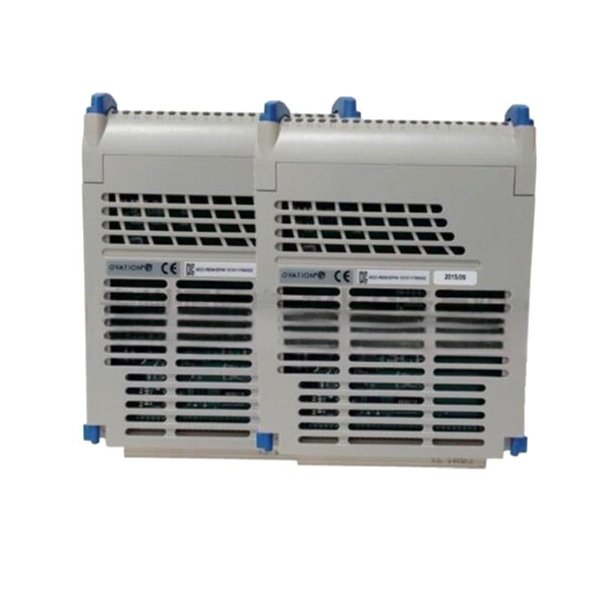

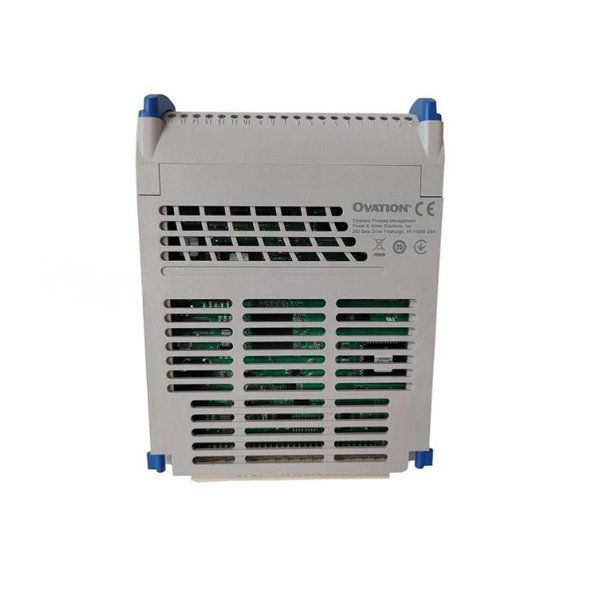

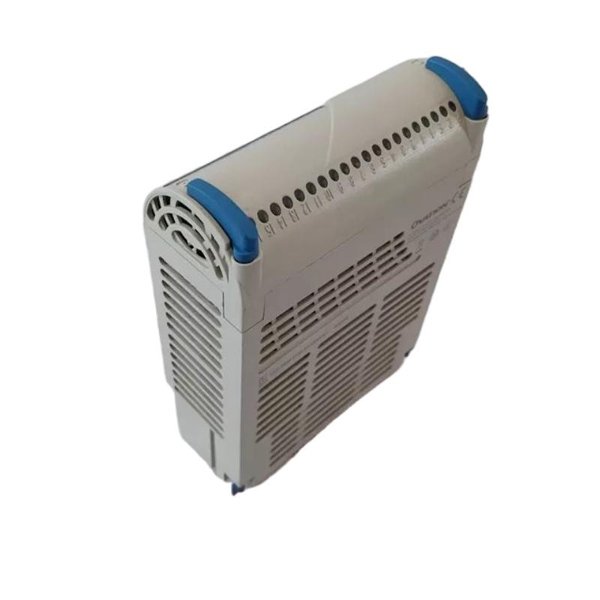

OVATION 1X00690H01 Single-Ended Digital Input

The Ovation 1X00690H01 Single-Ended Digital Input Module is a high-performance component used in distributed control systems (DCS). It is designed to handle digital signals from various field devices such as switches, sensors, and relays. By converting external on/off signals into a format that can be processed by the Ovation control platform, this module ensures accurate monitoring and efficient control in industrial automation environments. It is widely applied in power generation, oil and gas, chemical processing, and other critical industries where reliable input acquisition is required.

Product Advantages

• High Signal Reliability – Designed to minimize noise interference and provide accurate detection of digital input signals.

• Seamless Integration – Fully compatible with Ovation DCS systems, ensuring smooth installation and system compatibility.

• Robust Design – Built to withstand industrial operating environments including temperature fluctuations and electrical disturbances.

• Flexible Input Handling – Supports multiple single-ended digital signals for varied application needs.

• Diagnostics Capability – Includes built-in diagnostic functions for fault detection and system reliability monitoring.

• Ease of Maintenance – Modular design allows for quick replacement and reduced downtime.

Technical Specifications

Product Applications

• Power Plants – Monitoring digital signals from turbines, generators, and auxiliary equipment.

• Oil & Gas Industry – Integration of safety signals and process equipment feedback.

• Chemical & Petrochemical Plants – Capturing digital signals from field instruments and alarms.

• Water Treatment Facilities – Handling pump and valve digital feedback signals.

• Industrial Manufacturing – Monitoring on/off conditions in automated machinery.

• Energy Management Systems – Providing precise digital input for control optimization.

FAQ

Q1: What is the typical input voltage supported by the 1X00690H01 module?

A1: The module typically supports 24 VDC single-ended digital input signals.

Q2: How many input channels does this module provide?

A2: It provides 16 digital input channels.

Q3: Does the module offer electrical isolation?

A3: Yes, it provides channel-to-system isolation up to 1500 V RMS.

Q4: What is the input response time of this module?

A4: The response time is less than 10 milliseconds.

Q5: Can this module be hot-swapped in an Ovation system?

A5: Yes, the design allows hot-swapping without shutting down the system.

Q6: Does the module support diagnostics features?

A6: Yes, it has built-in diagnostics for monitoring signal integrity and module health.

Q7: What are the environmental operating limits of the module?

A7: It operates between 0°C to +60°C with a humidity range of 5–95% non-condensing.

Q8: How does the module connect to field wiring?

A8: It connects through a terminal block or system backplane for secure wiring.

Q9: Is it possible to mix this module with other I/O modules in the same rack?

A9: Yes, it can be combined with analog input, output, and other digital modules within the same Ovation rack.

Q10: What type of mounting options are available for this module?

A10: It can be mounted on a DIN-rail or within the Ovation system rack.
