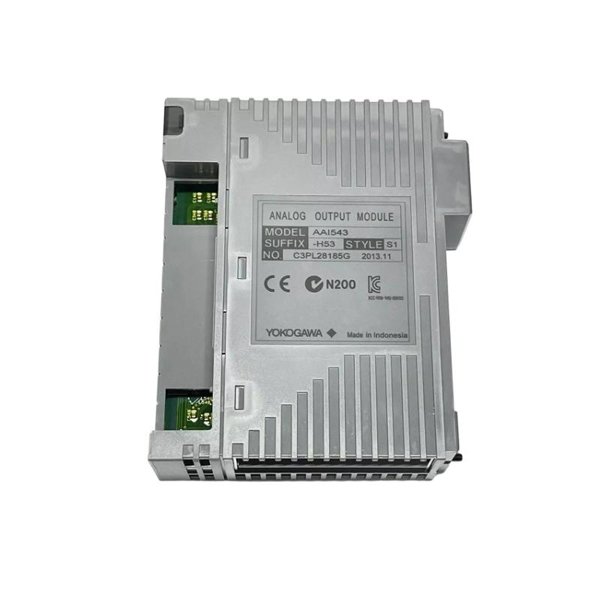

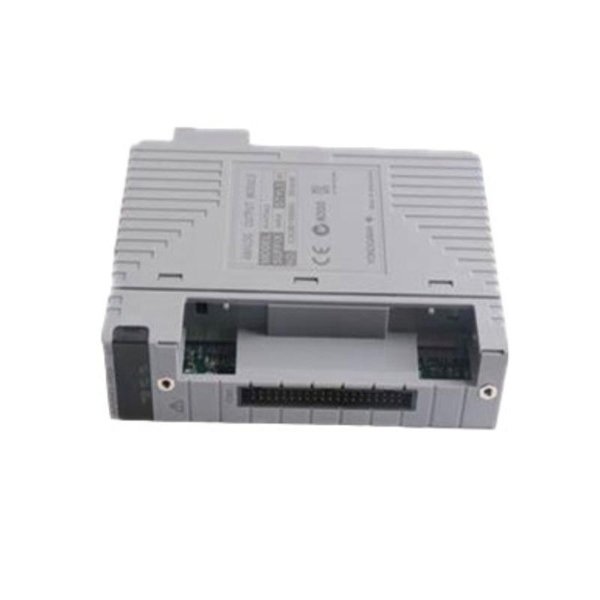

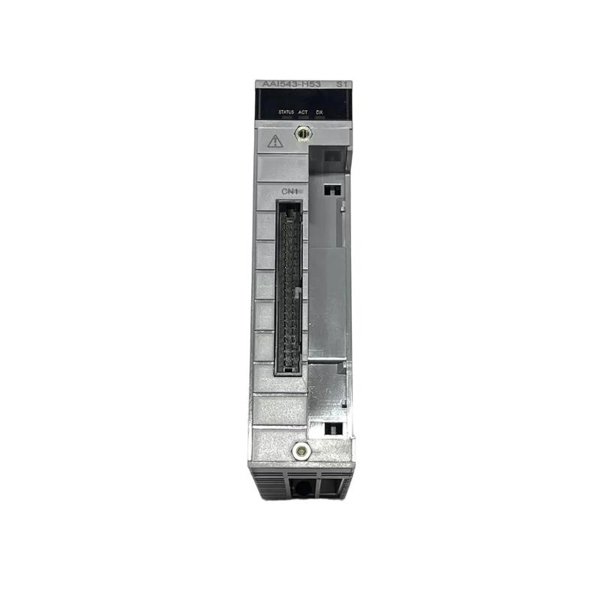

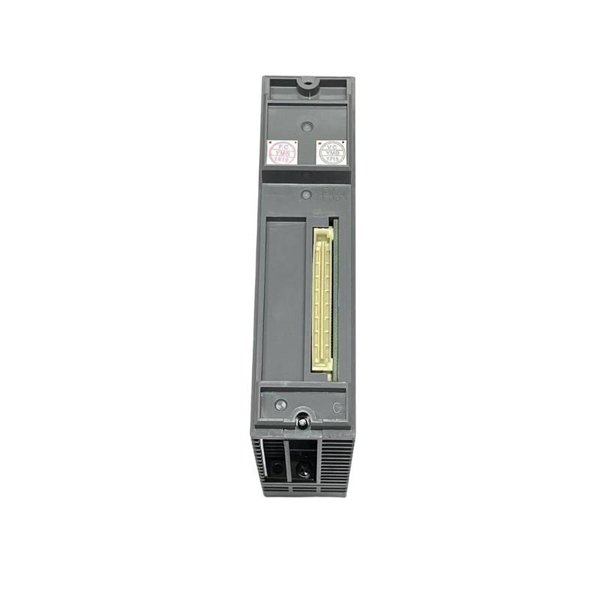

Yokogawa AAI543-H53-S1 Analog Output Module
Manufacturer:Yokogawa
Product Number:AAI543-H53-S1
Product Type:Analog Output Modules
Origin:Japan
Dimensions:107.5 × 32.8 × 130 mm
Weight:0.4kg
Views:37
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa AAI543-H53-S1 is a premium 8-channel analog output module designed for high-precision control in advanced industrial automation environments. Built for compatibility with CENTUM VP and ProSafe-RS systems, this module features HART communication capabilities, robust electrical isolation, and superior fault detection functionality. Designed to transmit accurate 4–20 mA signals, the AAI543-H53-S1 is ideal for controlling actuators, valves, I/P converters, and other field devices that demand both reliability and digital communication integration.
Key Features
-
8 isolated analog output channels
-
Output range: 4–20 mA DC
-
HART communication support for real-time device data and diagnostics
-
Channel-to-channel and channel-to-ground isolation
-
12-bit or higher resolution for precise control
-
Built-in diagnostics: open circuit, overcurrent, and HART communication error
-
Hot-swappable design for online maintenance
-
SIL-capable when integrated with ProSafe-RS systems
-
Designed for use with Yokogawa FIO (Fieldbus I/O) architecture
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AAI543-H53-S1 |
| Module Type | Analog Output Module with HART |
| Number of Channels | 8 isolated analog output channels |
| Output Signal Type | 4–20 mA DC |
| Output Load Resistance | Up to 600 Ω |
| Output Resolution | 12-bit or higher |
| Accuracy | ±0.1% of span |
| HART Communication | Supported (pass-through and command/response) |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostic Features | Open loop detection, output fault, HART failure |
| Hot Swap Capability | Yes |
| Power Supply | Supplied via FIO base unit |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
| Mounting Type | Mounted on FIO base unit |
| Certifications | CE, KC, RoHS, SIL (when used with ProSafe-RS) |
Industry Applications
-
Advanced process control in oil & gas plants
-
Chemical and petrochemical automation
-
Power generation (boiler/turbine) control
-
Pharmaceutical and clean-in-place (CIP) systems
-
Water treatment and environmental monitoring
-
SIL-rated Safety Instrumented Systems (SIS) using ProSafe-RS
-
Food & beverage manufacturing and packaging systems
Frequently Asked Questions (FAQ)
What is the purpose of the AAI543-H53-S1 module?
It delivers accurate 4–20 mA analog output signals for process control and supports HART communication with field devices.
How many output channels are available?
It features 8 individually isolated analog output channels.
Is HART communication supported?
Yes, the module supports HART pass-through and digital command/response communication.
Can this module be hot-swapped?
Yes, it supports hot-swapping for maintenance without disrupting plant operations.
What is the output signal range?
The output signal range is 4–20 mA DC.
Does the module include built-in diagnostics?
Yes, it includes fault detection for open circuits, output errors, and HART communication issues.
Is this module compatible with ProSafe-RS?
Yes, it is suitable for use in SIL-certified safety systems like ProSafe-RS.
What is the resolution of the analog output?
The module offers 12-bit or higher resolution for precise control.
What is the maximum load resistance?
The output supports load resistance up to 600 Ω.
What mounting method is used?
It is mounted on a Yokogawa Fieldbus I/O (FIO) base unit.
Loading comments...
Yokogawa AAI543-H53-S1 Analog Output Module
Manufacturer:Yokogawa
Product Number:AAI543-H53-S1
Product Type:Analog Output Modules
Origin:Japan
Dimensions:107.5 × 32.8 × 130 mm
Weight:0.4kg
Views:37
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa AAI543-H53-S1 is a premium 8-channel analog output module designed for high-precision control in advanced industrial automation environments. Built for compatibility with CENTUM VP and ProSafe-RS systems, this module features HART communication capabilities, robust electrical isolation, and superior fault detection functionality. Designed to transmit accurate 4–20 mA signals, the AAI543-H53-S1 is ideal for controlling actuators, valves, I/P converters, and other field devices that demand both reliability and digital communication integration.
Key Features
-
8 isolated analog output channels
-
Output range: 4–20 mA DC
-
HART communication support for real-time device data and diagnostics
-
Channel-to-channel and channel-to-ground isolation
-
12-bit or higher resolution for precise control
-
Built-in diagnostics: open circuit, overcurrent, and HART communication error
-
Hot-swappable design for online maintenance
-
SIL-capable when integrated with ProSafe-RS systems
-
Designed for use with Yokogawa FIO (Fieldbus I/O) architecture
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AAI543-H53-S1 |
| Module Type | Analog Output Module with HART |
| Number of Channels | 8 isolated analog output channels |
| Output Signal Type | 4–20 mA DC |
| Output Load Resistance | Up to 600 Ω |
| Output Resolution | 12-bit or higher |
| Accuracy | ±0.1% of span |
| HART Communication | Supported (pass-through and command/response) |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostic Features | Open loop detection, output fault, HART failure |
| Hot Swap Capability | Yes |
| Power Supply | Supplied via FIO base unit |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
| Mounting Type | Mounted on FIO base unit |
| Certifications | CE, KC, RoHS, SIL (when used with ProSafe-RS) |
Industry Applications
-
Advanced process control in oil & gas plants
-
Chemical and petrochemical automation
-
Power generation (boiler/turbine) control
-
Pharmaceutical and clean-in-place (CIP) systems
-
Water treatment and environmental monitoring
-
SIL-rated Safety Instrumented Systems (SIS) using ProSafe-RS
-
Food & beverage manufacturing and packaging systems
Frequently Asked Questions (FAQ)
What is the purpose of the AAI543-H53-S1 module?
It delivers accurate 4–20 mA analog output signals for process control and supports HART communication with field devices.
How many output channels are available?
It features 8 individually isolated analog output channels.
Is HART communication supported?
Yes, the module supports HART pass-through and digital command/response communication.
Can this module be hot-swapped?
Yes, it supports hot-swapping for maintenance without disrupting plant operations.
What is the output signal range?
The output signal range is 4–20 mA DC.
Does the module include built-in diagnostics?
Yes, it includes fault detection for open circuits, output errors, and HART communication issues.
Is this module compatible with ProSafe-RS?
Yes, it is suitable for use in SIL-certified safety systems like ProSafe-RS.
What is the resolution of the analog output?
The module offers 12-bit or higher resolution for precise control.
What is the maximum load resistance?
The output supports load resistance up to 600 Ω.
What mounting method is used?
It is mounted on a Yokogawa Fieldbus I/O (FIO) base unit.
